20 amp heavy duty inline fuse holder with 14 guage

Specifications

20 amp heavy duty inline fuse holder with 14 guage
1.ROHS,CE,SGS,ISO9001:2008
2.Sample is available

  20 amp heavy duty inline fuse holder with 14 guage



1.Applicable Wires: 8#, 10#, 12#, 14#, 16#, 18#, 20#, 22# .



2.100% testing before delivery and packing.



3.Can do the fuse holder as your drawings or specifications requirements.



 Table sheet

Fuse Amps		Suitable           wire size	each side of wire length(mm)					package
Min(amps)	Max(amps)
0.1	0.4	32	80	100	135	150	Custom	PE+cartons
0.2	0.6	30	80	100	135	150	Custom	PE+cartons
0.3	1	28	80	100	135	150	Custom	PE+cartons
0.5	1.5	26	80	100	135	150	Custom	PE+cartons
1	2.5	24	80	100	135	150	Custom	PE+cartons
1	4	22	80	100	135	150	Custom	PE+cartons
2	6.5	20	80	100	135	150	Custom	PE+cartons
3.5	10	18	80	100	135	150	Custom	PE+cartons
5	16	16	80	100	135	150	Custom	PE+cartons
8	26	14	80	100	135	150	Custom	PE+cartons
15	40	12	80	100	135	150	Custom	PE+cartons
20	65	10	80	100	135	150	Custom	PE+cartons
35	105	8	80	100	135	150	Custom	PE+cartons
50	165	6	80	100	135	150	Custom	PE+cartons

 Auto fuse holder with red wire 8guage

ul1007/1015 10guage blade fuse holder with fuses in 20A-70A

ATS 12guage auto fuse holder with blade fuse 15~10A

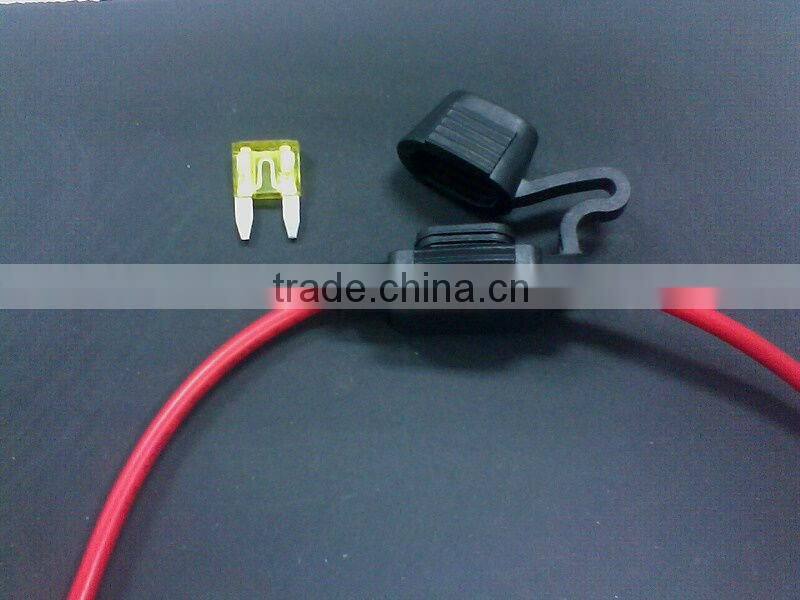

MINI ATC auto inline fuse holder with 16guage fuse 5A~16A

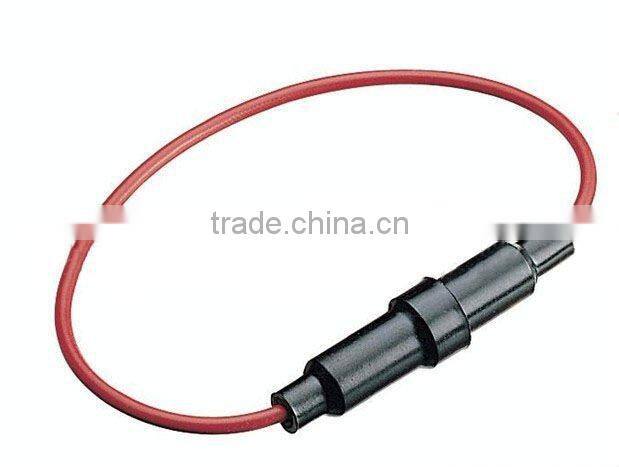

ATS in line blade fuse holder with blade fuse                                                                    mini inline fuse holder types with glass fuse

Our fuse holder types for your reference.





Any custom Drawings are greatly welcomed.



Any questions, PLS feel free to contact me or Email me at your work time



 Production department





Our Company Outlook &  Display Hall



Proccess of producing wire harness

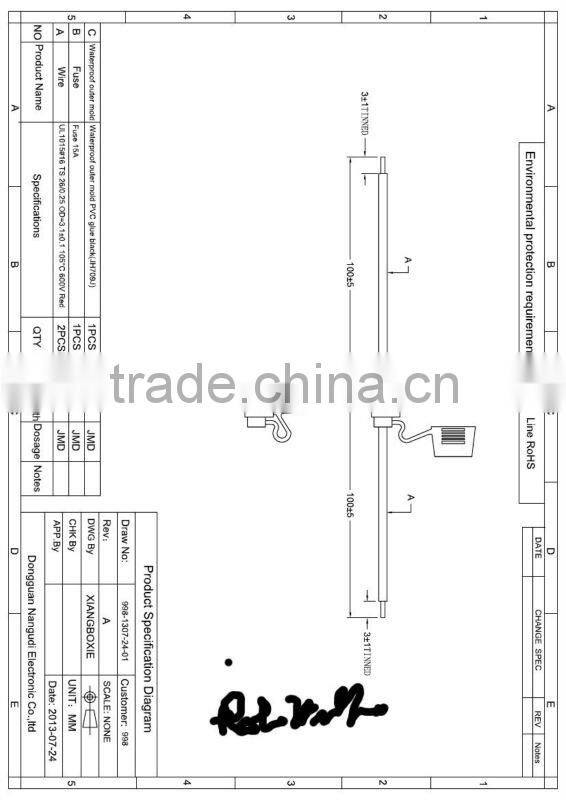

For each product, we will make our drawing or specifications for our customers to check and confirm by their signature or company seal.

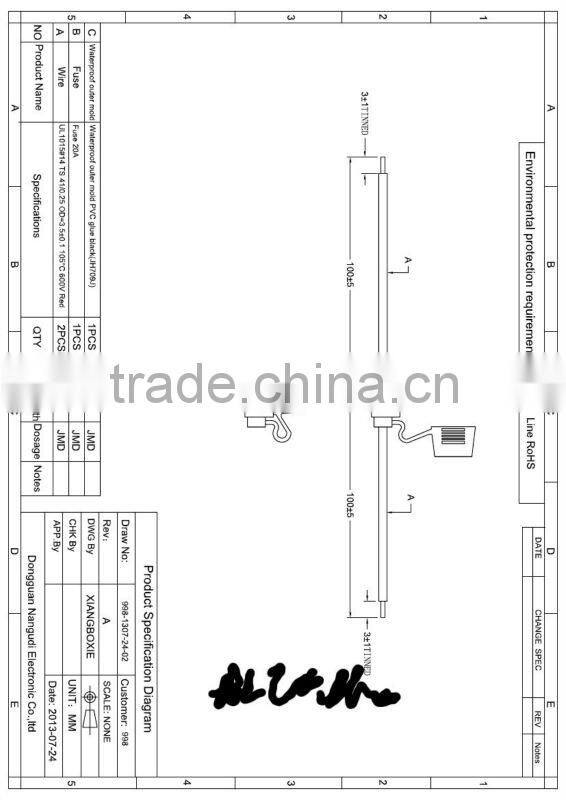

inline waterproof fuse holder with 100mm of each side                                              UL1015AWG14, red wire with fuse 20A

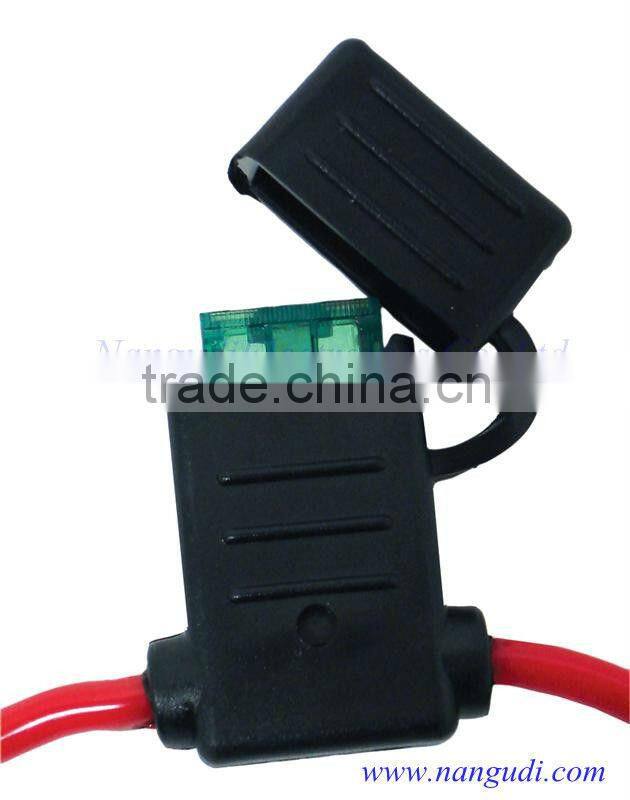

inline waterproof fuse holder with 100mm of each side                                     UL1015AWG14, red wire with fuse 20A                                                            20a atc auto fuse holder with wire 14awg

If you have your own detailed specifications, we will make the drawing for you, we will offer you our best solutions and professional technic engineers to give the constructive suggestions and advice for your refrence and confirmation.



Should you need, pls dont hesitate to send me your detailed specifications to my email.

Once we get your email, we will give you our solutions for your confirmation and study as soon as we can.
