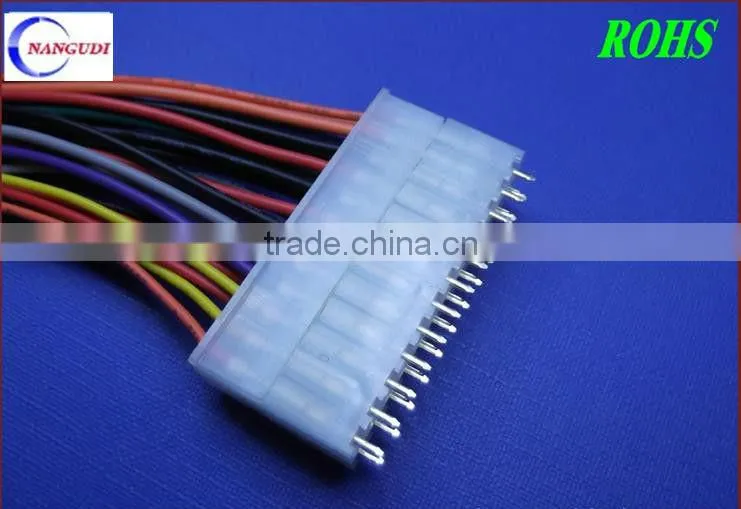

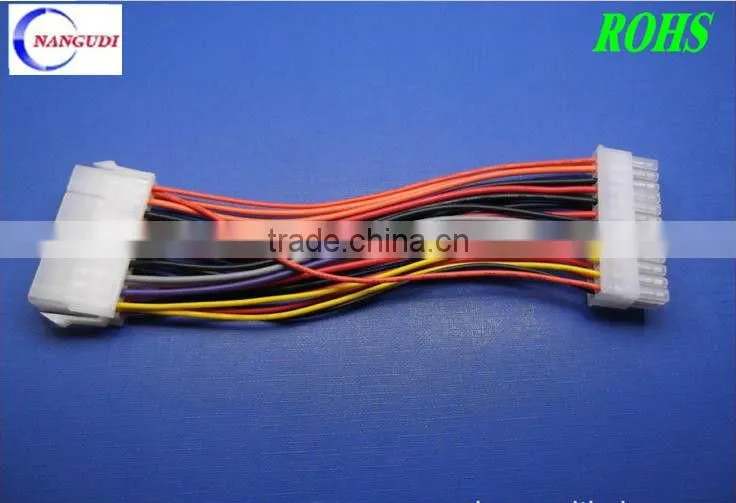

Help CenterAMP Pitch4.2mm 2*1p~2*12p Wire to Board Wiring Connector Terminals
Related Products
-
AMP 3.96 Wire Terminal ConnectorUS$ 0.02 - 0.13MOQ: 100 Pieces -
0.8mm Ffc/fpc Cable Connector ManufacturersUS$ 0.02 - 0.13MOQ: 100 Pieces
-
Ffc Connector 1.25mm ManufacturersUS$ 0.02 - 0.13MOQ: 100 Pieces
-
2Pin Deutsch Auto Connector With Square HolesUS$ 0.52 - 1.35MOQ: 500 Pieces
-
4Pin Deutsch Auto Connector With Square HolesUS$ 0.52 - 1.35MOQ: 500 Pieces
Specifications
1.2.54mm female header straight2.best price, stable quality,quick delivery,rich experience
3. ISO9001,SGS,ROHS,
NGD-4201Series (Molex5557/5559-Pitch4.2 Wire to Board Connector )
Current Rating: 1A AC, DC
Voltage Rating: 600V AC, DC
Temperature Range: -25 deg C ~ +85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 1,000M Omega Min.
Withstanding Voltage: 1,800V AC/minute
Contact NGD 4201 for details.

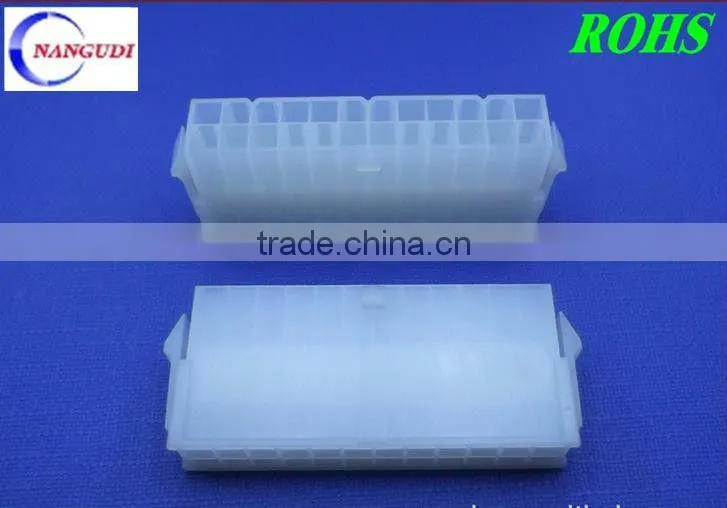

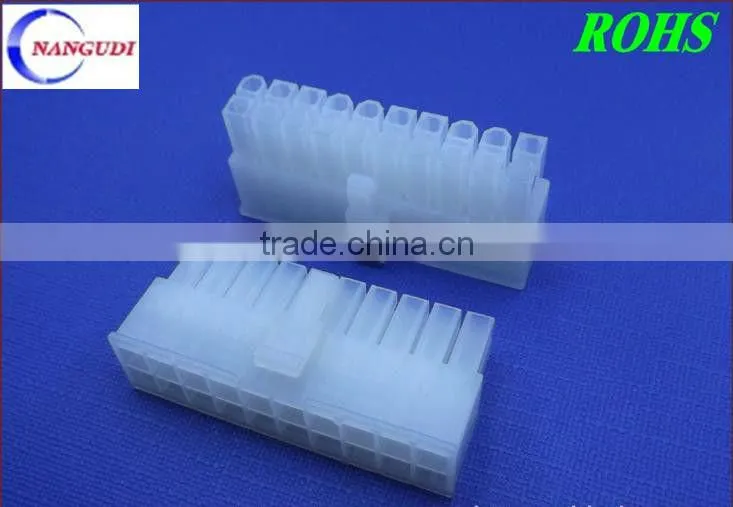

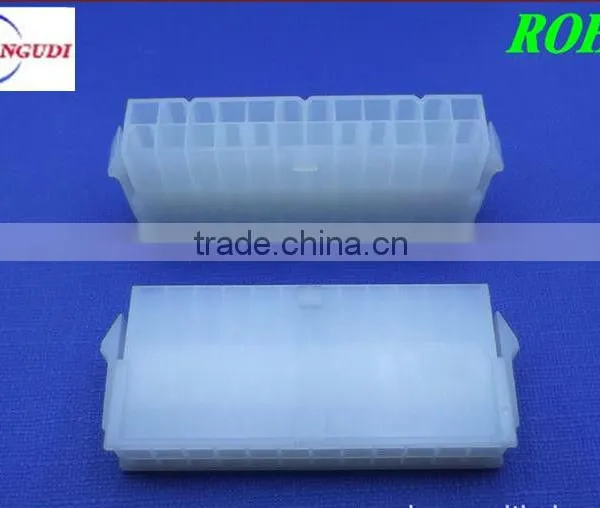

Housing
Part No:SCT4201MH/FH-
Poles:2*1-2*12P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT4201FT/MT Series Terminal

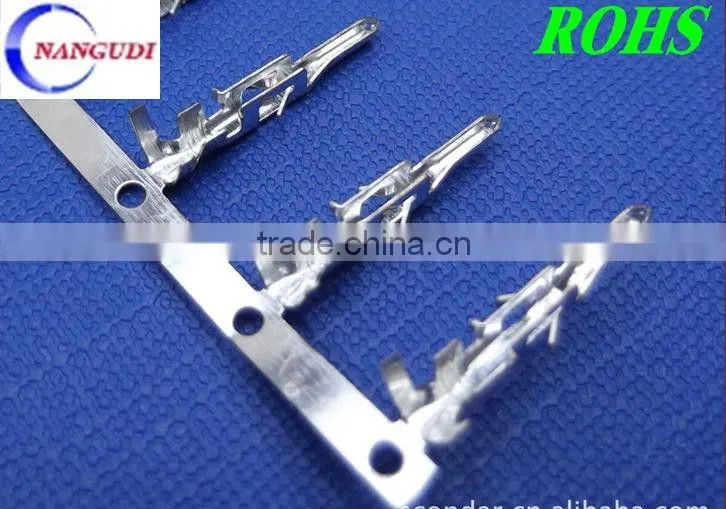

Terminal
Part No:SCT4201FT/MT
Thickness:0.20mm
Material:Phosphor bronze
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.4mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT4201MH/FH Series Daul row Housing
Wafer ( DIP Type)
Part No: SCT4201WV/WR-2*NP
Poles:2*1-2*12P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT4201MH/FH- Series Dual row Housing

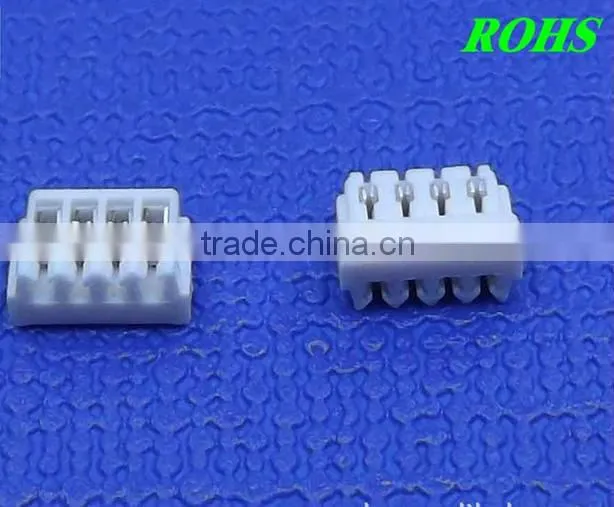

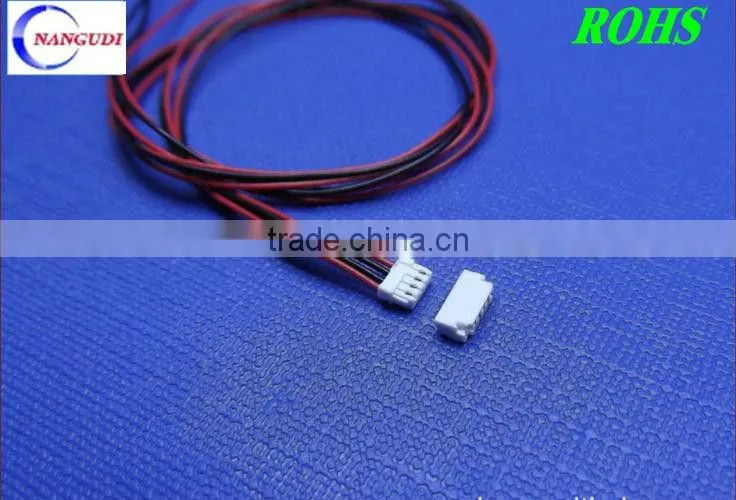

0.8mm IDC Wire to Board Connector
Specifications :
Current Rating: 0.5A AC, DC
Voltage Rating: 30V DC
Temperature Range: -25 deg C ~ +85 deg C
Contact Resistance: 20m Omega Max.
Insulation Resistance: 100M Omega Min.
Withstanding Voltage: 200V AC/minute

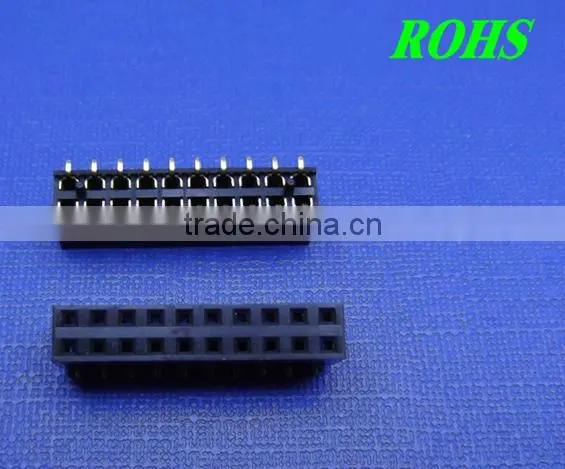

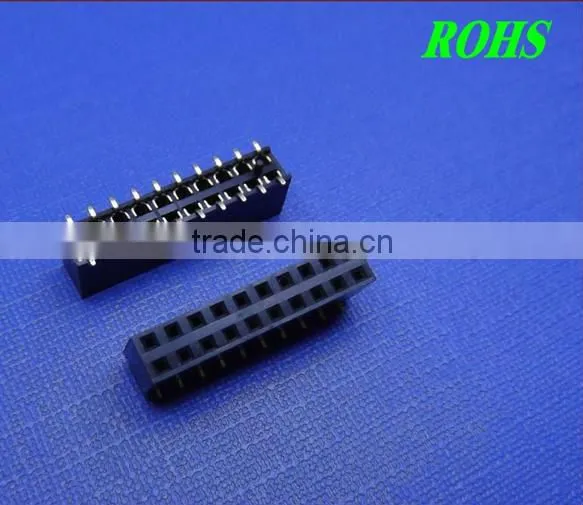

2.54 mm female header straight dual row

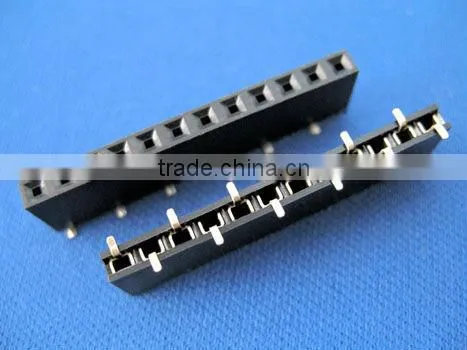

1.0.8mm/1.0mm/1.27mm/2.00mm/2.54mm female header straight
2.best price, stable quality,quick delivery,rich experience
3. ISO9001,SGS,ROHS,
(FH2.54H8.5-ST-2*NP)
SPECIFICATIONS
Current rating:3Amps
Insulator resistance:5000 megohms Min.
Dielectric withstanding:AC 500 V
Operating Temperature: -40~+105%%d
Contact material:brss/phosphor bronze
Insulator material:standard P.B.T
Finish: gold flash or Tin plated or Duplex plating
Contact resistance:20M ohm max
PIN : SQ:0.64mm
poles: 2*2-2*40pins
