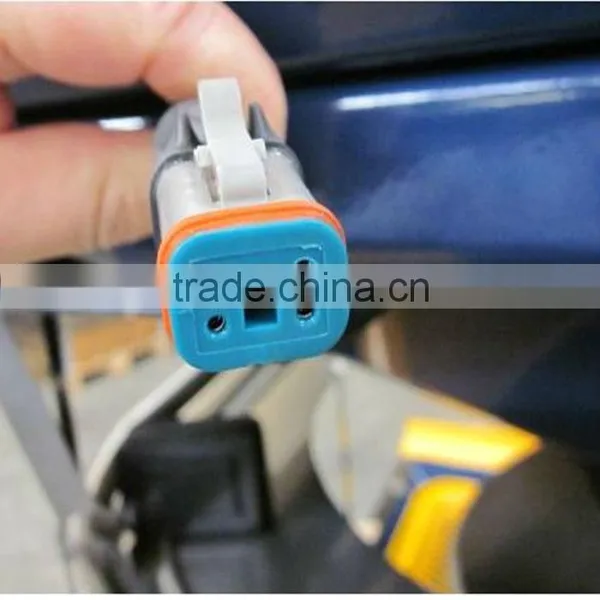

Help Center4Pin Deutsch Auto Connector With Square Holes
Related Products
-
Deutsch Connector Dt04-4PUS$ 0.998 - 1.55MOQ: 500 Pieces -
Iso 16 Way (pin) Audio Male to Female Wiring Harness for Computer With UL ApprovedUS$ 0.56 - 1.88MOQ: 500 Pieces
-
Molex or Equivalent Male and Female Connector Supplier and ManuafcturerUS$ 0.09 - 1.05MOQ: 200 Pieces
-
Jae Automotive Wire Pin Female Header ConnectorUS$ 0.12 - 3.58MOQ: 200 Pieces
-
Jae 2.0mm Pin Male and Female Header ConnectorUS$ 0.15 - 2.35MOQ: 500 Pieces
Specifications
Deutsch Auto connectors with 2 pin/ 4pin/ 6pin/8pin1.Waterproof
2.Sample is free.
3.RoHs, CE Approved
Deutsch Auto connectors with 2 pin/ 4pin/ 6pin/8pin
Material: connector: PA66; terminal: brass/phosphor copper .
DT Series Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTHD Series
Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), and 12 (25 amps)
• 6-14 AWG
• 1 cavity arrangement
• In-line or fl ange mount
• Circular, thermoplastic housing
• Integrated latch for mating
DTM Series
Key Features:
• Accepts contact size 20 (7.5 amps)
• 16-22 AWG
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTP Series
Key Features:
• Accepts contact size 12 (25 amps)
• 10-14 AWG
• 2 and 4 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTV Series
Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG
• 18 cavity arrangement
• Flange mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
HD10 Series
Key Features:
• Accepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)
• 6-20 AWG
• 3, 4, 5, 6, and 9 cavity arrangements
• In-line, fl ange, or PCB mount
• Circular, thermoplastic housing
• Coupling ring for mating
HD30 Series
Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 6-22 AWG
• 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
• In-line or fl ange mount
• Circular, aluminum housing
• Coupling ring for mating
HDP20 Series
Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 4-22 AWG
• 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29,
31, 33, 35, and 47 cavity arrangements
• In-line or fl ange mount
• Circular, thermoplastic housing
• Coupling ring for mating
IMC Series
Key Features:
• Accepts contact sizes 16 (13 amps), 20 (7.5 amps), and 22 (5 amps)
• 16-26 AWG
• 2, 3, 4, 5, 7, and 12 cavity arrangements
• In-line or fl ange mount
• Circular, Ultem, housing
• Coupling ring for mating
Quick Connect Series
Key Features:
• Accepts contact sizes 16 (13 amps), 20 (7.5 amps), and 22 (5 amps)
• 16-26 AWG
• 2, 7, and 12 cavity arrangements
• In-line or fl ange mount
• Circular, Ultem® housing
• Push button mechanism for mating
STRIKE Series
Key Features:
• Accepts contact sizes Ø12mm (300 amps), Ø8mm (150 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 3/0-20 AWG
• 1, 4, 8, 18, 32, 36, 50, and 64 cavity arrangements
• In-line, fl ange, or PCB mount
• Square, thermoplastic housing
• Lever for mating
• TPA assures contact alignment and retention
WT Series
Key Features:
• Accepts contact sizes 4 (100 amps) and 16 (13 amps)
• 6, 16-20 AWG
• 3, 16, and 31 cavity arrangements
• In-line or fl ange mount
• Circular, anodized aluminum or composite housing
• Coupling ring for mating
Temperature
Operating at temperatures from -55° C to +125° Ccontinuous at rated current.
• DTMH Series and Quick Connect Series: -55° C to +150° C
• IMC Series and WT Series: -55° C to +175° C
Durability
No electrical or mechanical defects after 100 cycles of engagement and disengagement.
Vibration
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes.
No electrical discontinuities longer than 1 microsecond.
Physical Shock
No unlocking, unmating, or other unsatisfactory result during or after 50 G’s in each of three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
MIL-STD 202, Method 213, Condition “C”.
Fluid Resistance
Connectors show no damage when exposed to most fl uids used in industrial applications.
Insulation Resistance
1000 megohms minimum at 25° C.
Moisture Resistance
Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
• WT Series withstands immersion under four feet of water
• IMC & Quick Connect Series: IP68
• Moisture resistance does not apply to DTMN Series
Dielectric Withstanding Voltage
Current leakage less than 2 milliamps at 1500 VAC.
Thermal Cycle
No cracking, chipping or leaking after 20 test cycles from
-55° C to +125° C.
Voltage (IMC & Quick Connect Series only)
Up to 1000 VAC (rms)
Material Specifications
AEC Series
Grommet: Silicone rubber
Jackscrew: Steel
Plug Threaded Inserts: Steel
Shell: Thermoplastic
Contacts
Pin & Socket: Copper alloy
Finish: Nickel plating
Optional: Gold plating
We can offer one whole set including housing, terminalsand seals, you can choose according your detail requirement too
Features:
1. 100% test before packing and shipment.
2. High quality and Waterproof.
3. Experienced manufacturing for 7 years.
