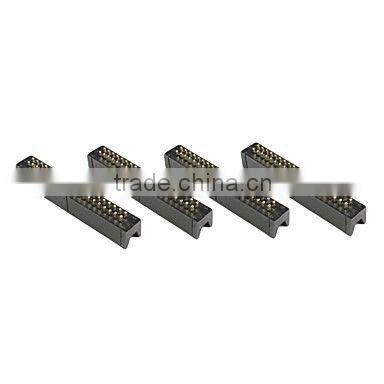

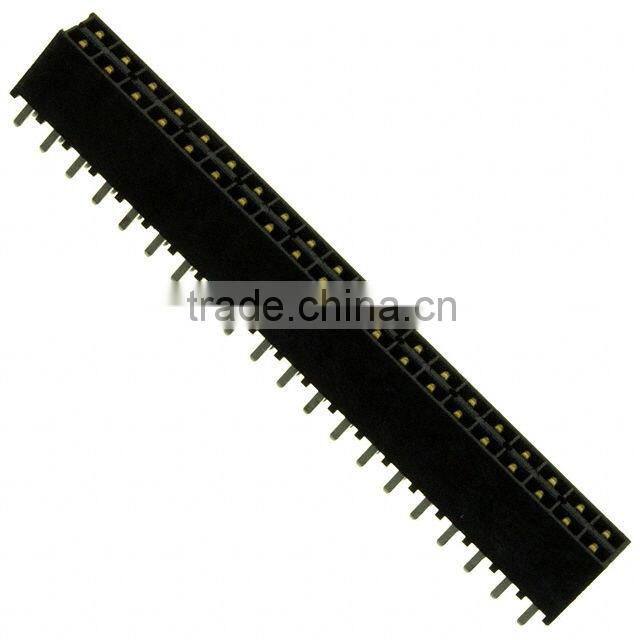

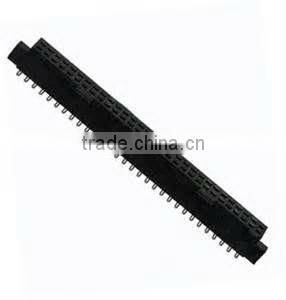

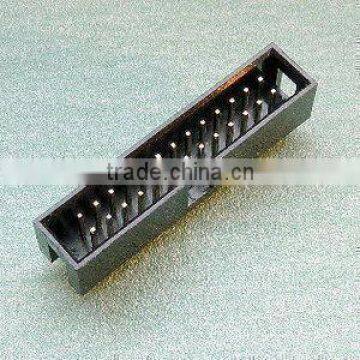

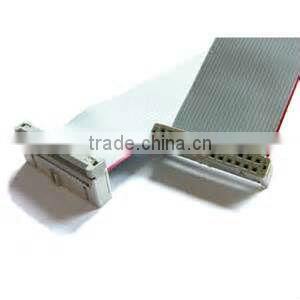

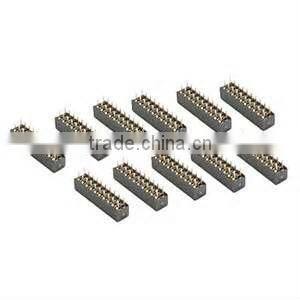

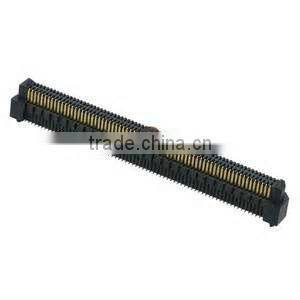

CONNECTOR 26 WAY PIN HEADER

CONNECTOR 26 WAY PIN HEADER thumbnail-1
CONNECTOR 26 WAY PIN HEADER photo-1
US$ 0.01 - 1.01 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NANGUDI
Model Number:
PT-25404
Contact Supplier Request Quote Chat Now
Dongguan Nangudi Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NANGUDI
Model Number PT-25404
Type Other, SMT
Application PCB
Gender Other, MALE, FEMALE

Specifications

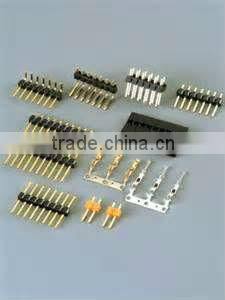

2.54mm pitch connector terminal
1.ROHS,REACH
2.Material:brass
3.Molex 171822 2.54mm terminal
4..100% tested before delivery

2.54mm pitch connector terminal



1.Having 0.64mm square posts, the 2.54SB header can be used to connect any 2.54mm receptacles to PC boards.



2.They can also be used to directly connect PC boards.





Specifications



Terminal



Type Applicable wires OD of wire ins
  mm2 AWG mm
NGD25404-PT 0.06~0.33 28~22 1.2~1.9



Housing



Poles Type Dimensions
A B
2 NGD25404-2Y 2.54 5.74
3 NGD25404-3Y 5.08 8.28
4 NGD25404-4Y 7.62 10.82
5 NGD25404-5Y 10.16 13.36
6 NGD25404-6Y 12.70 15.90
7 NGD25404-7Y 15.24 18.44
8 NGD25404-8Y 17.78 20.98
9 NGD25404-9Y 20.32 23.52
10 NGD25404-10Y 22.86 26.06
11 NGD25404-11Y 25.40 28.60
12 NGD25404-12Y 27.94 31.14
13 NGD25404-13Y 30.48 33.68
14 NGD25404-14Y 33.02 36.22
15 NGD25404-15Y 35.56 38.76
16 NGD25404-16Y 38.10 41.30
17 NGD25404-17Y 40.64 43.84
18 NGD25404-18Y 43.18 46.38
19 NGD25404-19Y 45.72 48.92
20 NGD25404-20Y 48.26 51.46



Wafer





Poles Type Dimensions
Straight Bending A B
2 NGD2540405-2A NGD25404-2WA 2.54 5.08
3 NGD2540405-3A NGD25404-3WA 5.08 7.62
4 NGD2540405-4A NGD25404-4WA 7.62 10.16
5 NGD2540405-5A NGD25404-5WA 10.16 12.70
6 NGD2540405-6A NGD25404-6WA 12.70 15.24
7 NGD2540405-7A NGD25404-7WA 15.24 17.78
8 NGD2540405-8A NGD25404-8WA 17.78 20.32
9 NGD2540405-9A NGD25404-9WA 20.32 22.86
10 NGD2540405-10A NGD25404-10WA 22.86 25.40
11 NGD2540405-11A NGD25404-11WA 25.40 27.94
12 NGD2540405-12A NGD25404-12WA 27.94 30.48
13 NGD2540405-13A NGD25404-13WA 30.48 33.02
14 NGD2540405-14A NGD25404-14WA 33.02 35.56
15 NGD2540405-15A NGD25404-15WA 35.56 38.10
16 NGD2540405-16A NGD25404-16WA 38.10 40.64
17 NGD2540405-17A NGD25404-17WA 40.64 43.18
18 NGD2540405-18A NGD25404-18WA 43.18 45.72
19 NGD2540405-19A NGD25404-19WA 45.72 48.26
