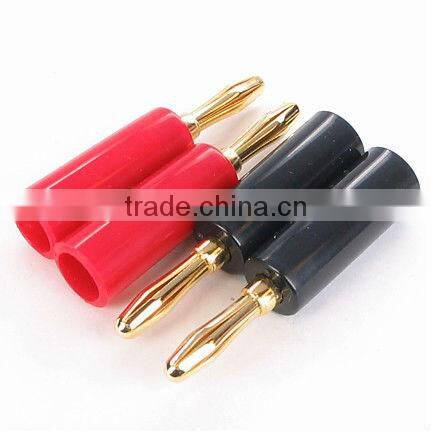

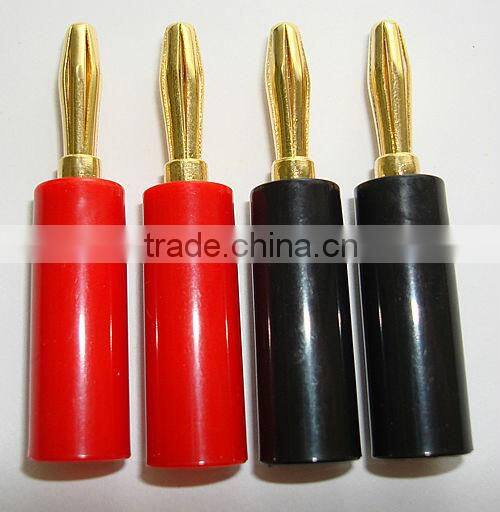

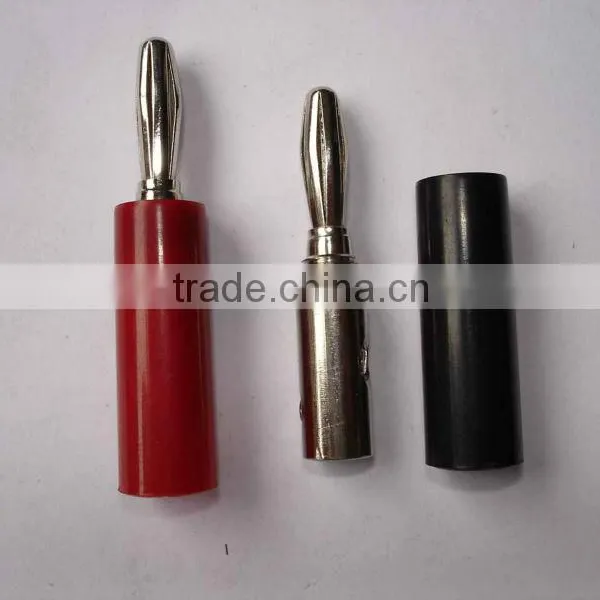

4mm Banana Plug and Socket With Insulated Body
US$ 0.12 - 0.98
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NANGUDI
Model Number:
NGD-BP0058
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Connector Banana Plug Power Connector With Insulated BodyUS$ 0.12 - 0.98MOQ: 1000 Pieces -
6mm Banana Plug Connector With Insulated BodyUS$ 0.12 - 0.98MOQ: 1000 Pieces
-
Gino SMA Female to SMA Female Jack in Series RF Coaxial Adapter ConnectorUS$ 0.3 - 1.45MOQ: 500 Pieces
-
Gino SMA Male to SMA Male Plug in Series RF Coaxial Adapter ConnectorUS$ 0.3 - 1.45MOQ: 500 Pieces
-
Gino SMA Female to SMA Female Jack in Series RF Coaxial AdapterUS$ 0.3 - 1.28MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
NANGUDI
Model Number
NGD-BP0058
Type
Other, Banana plugs
Application
Other, Audio & Video
Gender
Male
Specifications
Cable mountable 2mm Shrouded Banana Plug1.2.0 silver banana plug
2,nickel plated beryllium copper, insulator nylon

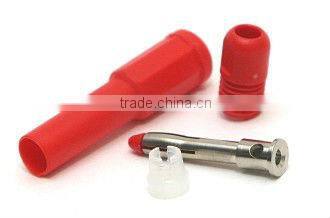

Cable mountable 4mm Shrouded Banana Plug
- Material: Banana plug: nickel-plated brass; Insulator: nylon
- Length: 1.91 in (48.5mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 1000V, category III. 1500V, category II. 20 Amps, IEC 1010 Compliant
Insulated Stackable Banana Plug
- Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: Nylon
- Length: 2.45 in (62.23mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 20 Amps
These 4mm Plugs enable a high quality connection in speaker systems with a short plug. They can be stacked end-on with other 4mm plugs or cable can be inserted through the side of ...
Last Updated: Apr 02, 2010
2. 4mm Banana Plugs Set Four
These high Quality 4mm Plugs come in a pack of four with two red and two black and can accept up to 3.5mm cable diameter with a screw termination. They feature a spring loaded plug ...
Last Updated: Apr 02, 2010
3. 4mm Screw Termination Banana Plugs Pair
These 4mm Plugs come in two parts as shown below and accept up to 4mm cable diameter with a screw termination. They feature a spring loaded plug for good connection and are ...
Last Updated: Apr 02, 2010
Banana Plug Series
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.66 in (42.13mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 1000 Volts, 15 Amps (hands free)

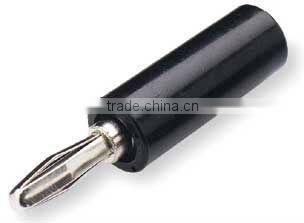

Cable mountable 4mm Shrouded Banana Plug
- Material: Banana plug: nickel-plated brass; Insulator: nylon
- Length: 1.91 in (48.5mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 1000V, category III. 1500V, category II. 20 Amps, IEC 1010 Complian
Insulated Banana Jack To Standard Banana Plug
- Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: nylon
- Length: 2.61 in (66.3mm)
- *Std. Colors: -0 Black, -2 Red, -4 Yellow & -6 Blue
- Rating: 1000 V, 15 Amps (hands free), IEC 1010 Compliant
Solderless Banana Plug-Hex Design
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.08 in (27mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 15 Amps
Solderless Banana Plug-Hex Design
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.15 in (29mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 15 Amps
Insulated Phone Tip Jack
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.1 in (28mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 15 Amps

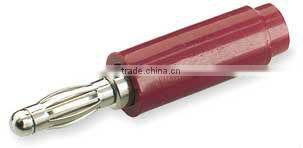

Stackable Banana Plug
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.68 in (43mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 15 Amps
Tapered Handle Banana Plug
- Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
- Length: 1.02 in (26mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 15 Amps
Unshrouded Stackable Banana Plug
- Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: Nylon
- Length: 1.88 in (47.7mm)
- *Std. Colors: -0 Black, -2 Red
- Rating: 1000 Volts, 15 Amps (Hands free)

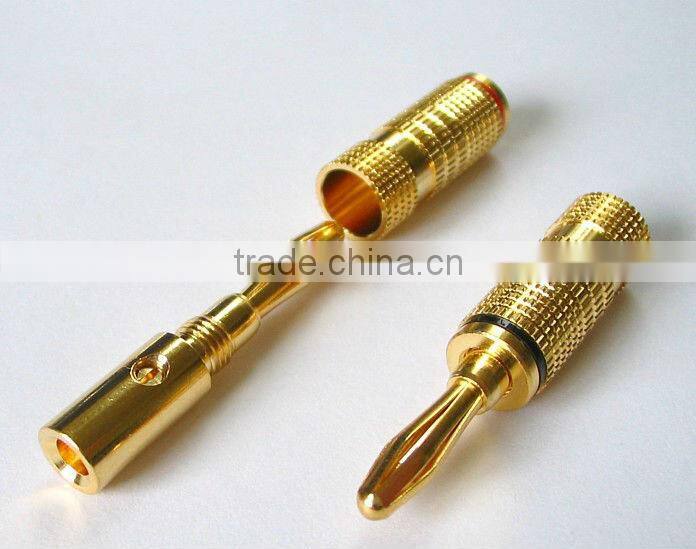

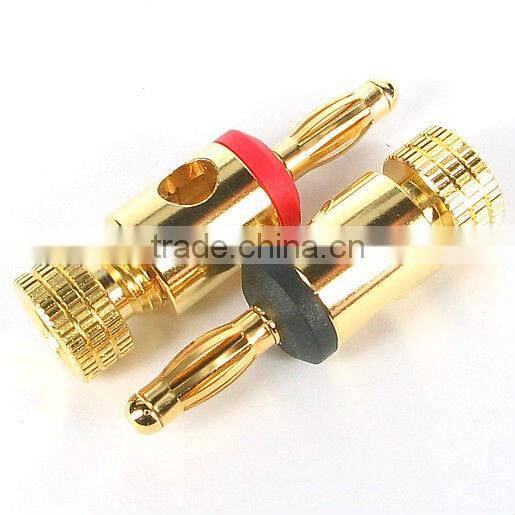

Item Description:
- 24K gold plating for maximum signal transfer & durability
- This connector is made by Pure Copper(Non-Magnetic).
- Double screws locking.without crimping or soldering
- Easy fit for wire size up to 4mm. Accepts speaker wire :
20AWG, 19AWG, 18AWG, 17AWG, 16AWG, 15AWG, 14AWG,
13AWG, 12AWG, 11AWG, 10AWG, 9AWG, 8AWG
- Condition: High Quality 100% Brand new!
Package Content:
- 12 pcs of speaker plugs. ( 1 lot, 6 pcs Red Color & 6 pcs Black Color )
30 Days Money Back Guaranty & Return Policy
- All items have checked before shipping. 100% satisfaction guaranteed. Defective items will be replaced or refund, if you get unworkable item, please contact us as soon as possible.
- We stand by our product 100%. If for any reason, you are not satisfied with the product, simply return the product and we will refund your money
