Gino SMA Female to SMA Female Jack in Series RF Coaxial Adapter Connector
US$ 0.3 - 1.45
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NANGUDI
Model Number:
SMA-C100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gino SMA Male to SMA Male Plug in Series RF Coaxial Adapter ConnectorUS$ 0.3 - 1.45MOQ: 500 Pieces -
Gino SMA Female to SMA Female Jack in Series RF Coaxial AdapterUS$ 0.3 - 1.28MOQ: 500 Pieces
-
Deutsch Connector DT Series 4-Way ConnectorsUS$ 0.968 - 1.92MOQ: 500 Pieces
-
Amp 4.2 Electronics Wire to Board Terminal Block ConnectorUS$ 0.02 - 0.13MOQ: 100 Pieces
-
Dual Row Straight 2x18pin Female Header Cable Connector 2.54mmUS$ 0.009 - 1.22MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
NANGUDI
Model Number
SMA-C100
Type
SMA
Application
Other, Audio & Video
Gender
Female
Specifications

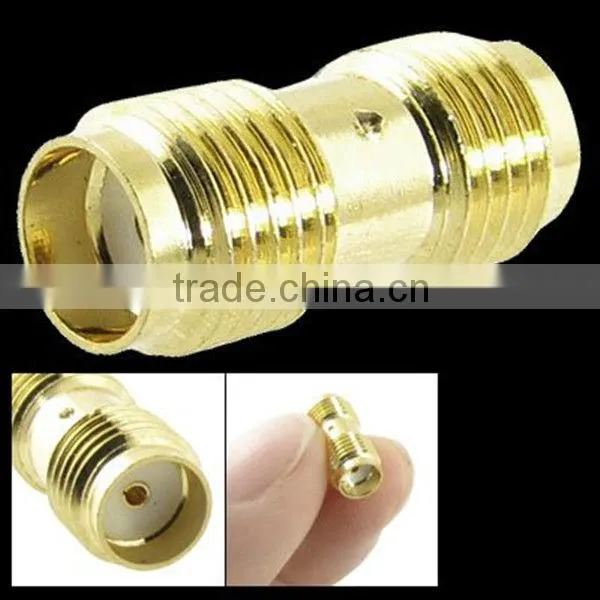

Gino SMA Female to SMA Female Jack in series RF Coaxial Adapter Connector01.gold plated braid and connector.

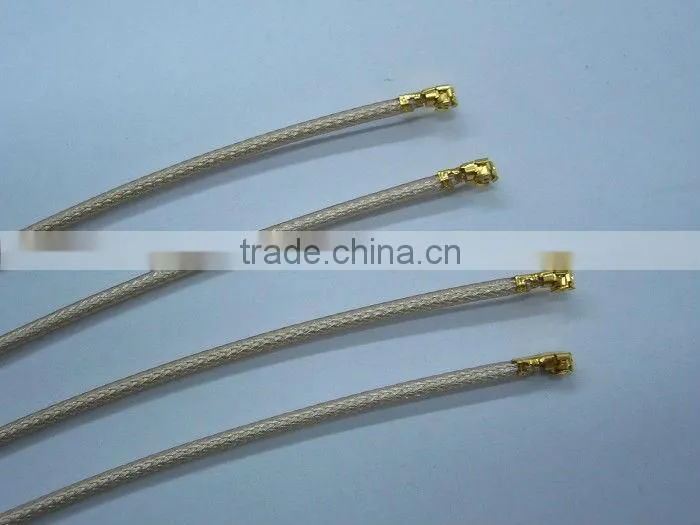

75 Ohm RF Coaxial Cable Assembly with I-PEX Plug to I-PEX Plug and Ø1.37mm Cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment

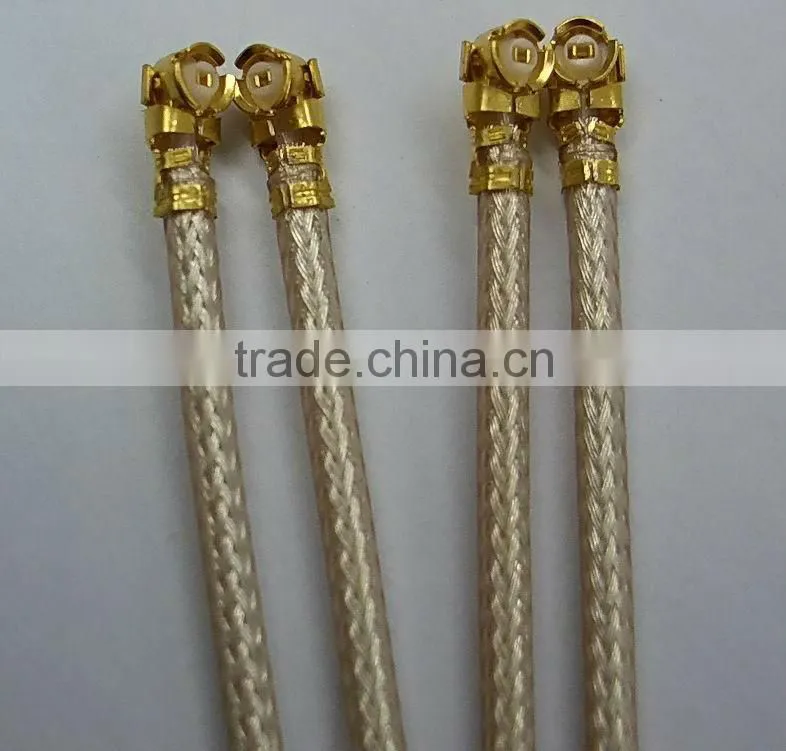

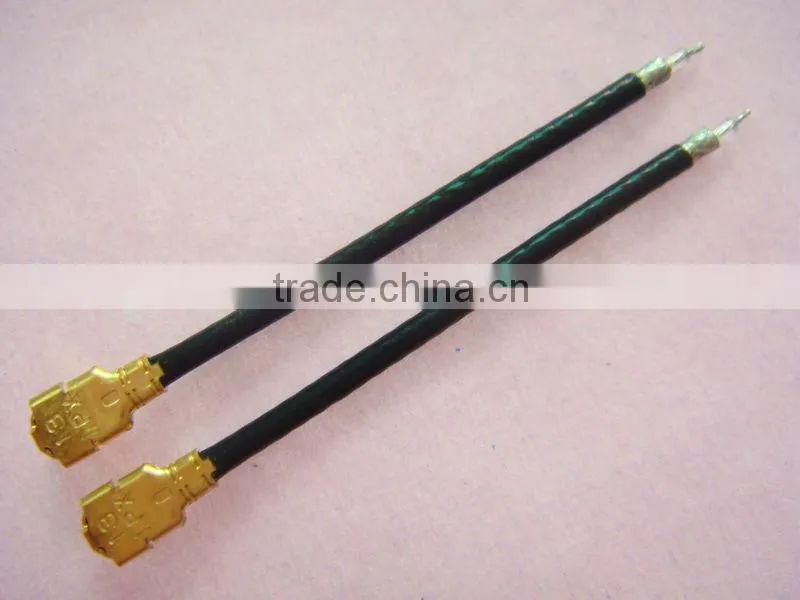

IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications
RG178 Pigtial Cable
Technical Specifications:
Impedance:50Ω
Frequency Range:DC to 6GHz
Working Voltage Rating: 375 VRMS
VSWR: 1.30 MAX 0-3GHz
1.40 MAX 3-6GHz
Insulation Resistance: 5000MΩ Min
Center Conductor Contact Resistance: 2mΩ Max
Outer Conductor Contact Resistance: 2 mΩ Max
Materials:
Body: Brass
Center Contact: Brass
Insulator: PTFE
Surface Plated:
Body: Gold Plating
Center Contact: Gold Plating
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
