Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Male Banana Plug and Socket Connector With Insulated Body

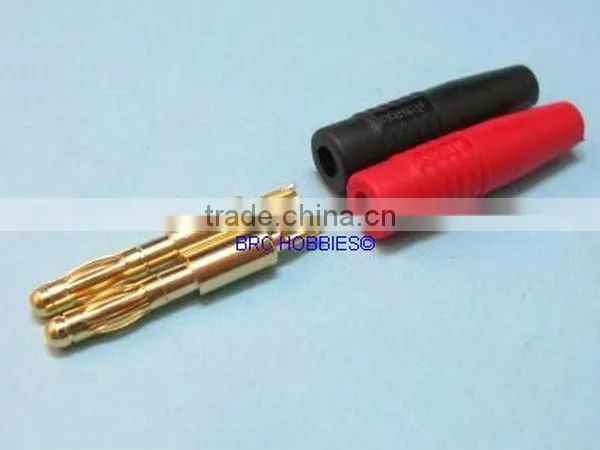

Male Banana Plug and Socket Connector With Insulated Body

Name: Male Banana Plug and Socket Connector With Insulated Body
Brand: NANGUDI
SKU: 111413223
Availability: InStock

Male Banana Plug and Socket Connector With Insulated Body thumbnail-1

Male Banana Plug and Socket Connector With Insulated Body photo-1

US$ 0.12 - 0.98 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

NANGUDI

Model Number:

NGD-BP0066

Contact Supplier Request Quote Chat Now

Dongguan Nangudi Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NANGUDI

Model Number NGD-BP0066

Type Other, Banana plugs

Application Other, Audio & Video

Gender Male

Specifications

Cable mountable 4mm Shrouded Banana Plug
1.4.0 silver banana plug
2,nickel plated beryllium copper, insulator nylon

Cable mountable 4mm Shrouded Banana Plug

Material: Banana plug: nickel-plated brass; Insulator: nylon
Length: 1.91 in (48.5mm)
*Std. Colors: -0 Black, -2 Red
Rating: 1000V, category III. 1500V, category II. 20 Amps, IEC 1010 Compliant

Insulated Stackable Banana Plug

Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: Nylon
Length: 2.45 in (62.23mm)
*Std. Colors: -0 Black, -2 Red
Rating: 20 Amps

1. 4mm Banana Plugs Pair

These 4mm Plugs enable a high quality connection in speaker systems with a short plug. They can be stacked end-on with other 4mm plugs or cable can be inserted through the side of ...
Last Updated: Apr 02, 2010

2. 4mm Banana Plugs Set Four

These high Quality 4mm Plugs come in a pack of four with two red and two black and can accept up to 3.5mm cable diameter with a screw termination. They feature a spring loaded plug ...
Last Updated: Apr 02, 2010

3. 4mm Screw Termination Banana Plugs Pair

These 4mm Plugs come in two parts as shown below and accept up to 4mm cable diameter with a screw termination. They feature a spring loaded plug for good connection and are ...
Last Updated: Apr 02, 2010

Banana Plug Series

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.66 in (42.13mm)
*Std. Colors: -0 Black, -2 Red
Rating: 1000 Volts, 15 Amps (hands free)

Cable mountable 4mm Shrouded Banana Plug

Material: Banana plug: nickel-plated brass; Insulator: nylon
Length: 1.91 in (48.5mm)
*Std. Colors: -0 Black, -2 Red
Rating: 1000V, category III. 1500V, category II. 20 Amps, IEC 1010 Complian

Insulated Banana Jack To Standard Banana Plug

Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: nylon
Length: 2.61 in (66.3mm)
*Std. Colors: -0 Black, -2 Red, -4 Yellow & -6 Blue
Rating: 1000 V, 15 Amps (hands free), IEC 1010 Compliant

Solderless Banana Plug-Hex Design

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.08 in (27mm)
*Std. Colors: -0 Black, -2 Red
Rating: 15 Amps

Solderless Banana Plug-Hex Design

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.15 in (29mm)
*Std. Colors: -0 Black, -2 Red
Rating: 15 Amps

Insulated Phone Tip Jack

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.1 in (28mm)
*Std. Colors: -0 Black, -2 Red
Rating: 15 Amps

Stackable Banana Plug

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.68 in (43mm)
*Std. Colors: -0 Black, -2 Red
Rating: 15 Amps

Tapered Handle Banana Plug

Material: Banana plug: nickel-plated brass body, nickel-plated phosphor bronze spring; Insulator: ABS
Length: 1.02 in (26mm)
*Std. Colors: -0 Black, -2 Red
Rating: 15 Amps

Unshrouded Stackable Banana Plug

Material: Banana plug: nickel-plated brass body, nickel-plated beryllium copper spring; Insulator: Nylon
Length: 1.88 in (47.7mm)
*Std. Colors: -0 Black, -2 Red
Rating: 1000 Volts, 15 Amps (Hands free)

Item Description:

24K gold plating for maximum signal transfer & durability
This connector is made by Pure Copper(Non-Magnetic).
Double screws locking.without crimping or soldering
Easy fit for wire size up to 4mm. Accepts speaker wire :
20AWG, 19AWG, 18AWG, 17AWG, 16AWG, 15AWG, 14AWG,
13AWG, 12AWG, 11AWG, 10AWG, 9AWG, 8AWG

Condition: High Quality 100% Brand new!

Package Content:

12 pcs of speaker plugs. ( 1 lot, 6 pcs Red Color & 6 pcs Black Color )

30 Days Money Back Guaranty & Return Policy

All items have checked before shipping. 100% satisfaction guaranteed. Defective items will be replaced or refund, if you get unworkable item, please contact us as soon as possible.
