Specifications
JAE2.0-Pitch2.0mm Wire to Board Connector1. RoHS compliant
2. High quality and best service.
3. ISO9001: 2008 approved
NGD 2501 Series (JST XH2.5-Pitch2.5 Wire to Board Connector )
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~+85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact NGD2501 for detals*

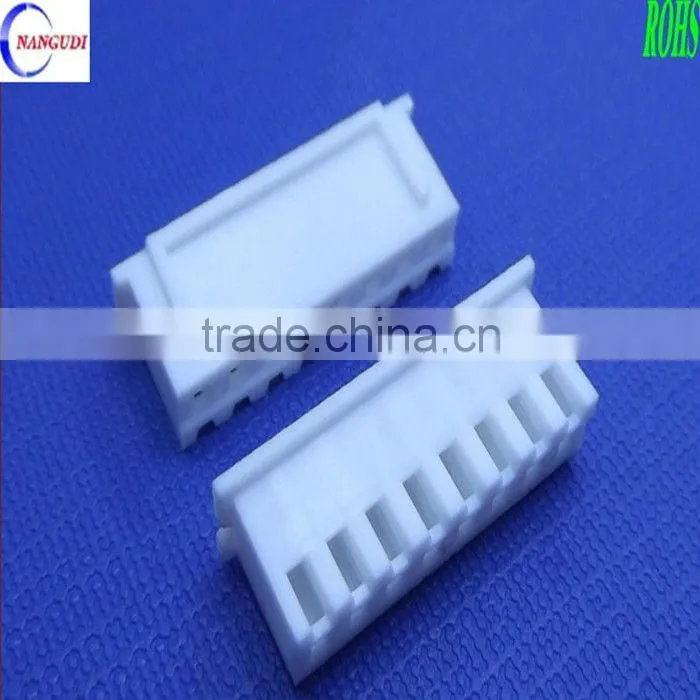

Housing
Part No:NGD2501H-
Poles:2-16P.
Material:Nylon66 UL94V0 or UL94V2
Packing Q'TY:1000pcs/bag
Mates With NGD 2501T Series Terminal
Terminal
Part No:NGD2501T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.40mm ( Max.)
Q'TY:8,000pcs/reel
Mates With SCT2501H- Series Housing

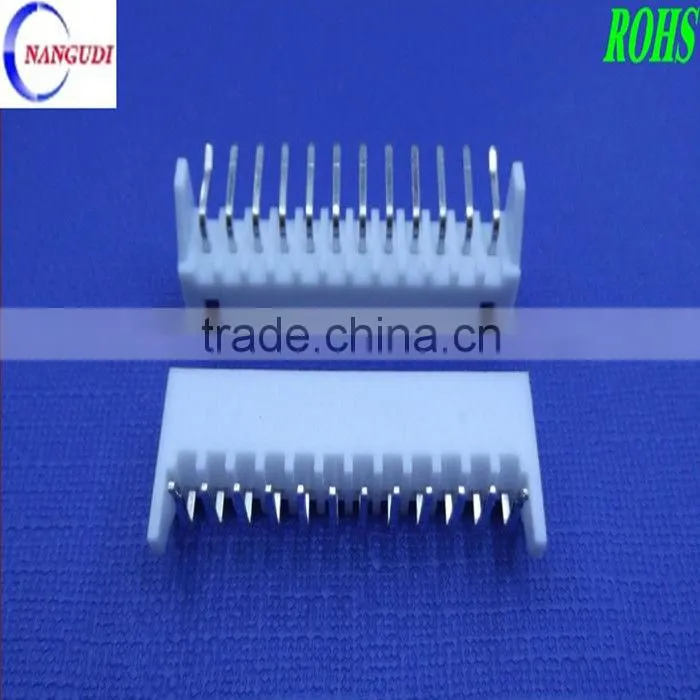

Wafer (DIP Type)
Part No:NGD2501WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V-0 or UL94V2
Packing Q'TY:1000pcs/box
Mates With NGD2501H- Series Single Row Housing
NANGUDI 2005 Series (JAE2.0-Pitch2.0mm Wire to Board Connector )
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~+85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact NGD 2005 for detals*
Housing
Part No:SCT2005H-
Poles:2-16P.
Material:Nylon66 UL94V0
Packing Q'TY:1000pcs/bag
Mates With NGD 2005T Series Terminal
Terminal
Part No:NGD 2005T
Thickness:0.20mm
Material:Phosphor bronze
Finish:Tin Plated
Wire Range:AWG#24-#28
Insulation O.D. : 1.30mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT2005H- Series Housing
Wafer (DIP Type)
Part No:NGD 2005WV/WR-NP
Poles:2-16P.
Material:Nylon6T UL94V-0
Packing Q'TY:1000pcs/box
Mates With SCT2005H- Series Single Row Housing
