Pcb Straight 7-pin Female Pin Idc Socket Connector2.54mm

Pcb Straight 7-pin Female Pin Idc Socket Connector2.54mm thumbnail-1
Pcb Straight 7-pin Female Pin Idc Socket Connector2.54mm photo-1
US$ 0.009 - 1.22 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NANGUDI
Model Number:
PH2.54-A217
Contact Supplier Request Quote Chat Now
Dongguan Nangudi Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NANGUDI
Model Number PH2.54-A217
Type Other, Female Header Connector
Application PCB
Gender Female

Specifications

7pin female header connector/pin header connector 2.54mm
1. Rich experience in this level
2. RoHS complaint
3. CE, ISO9001

dual row straight 24pin female header connector 2.54mm

Pitch Spacing:
 2.54 mm
Number of Contacts:
 10
Number of Rows:
 2pcb straight 7-pin female pin idc socket connector2.54mmpcb straight 7-pin female pin idc socket connector2.54mmpcb straight 7-pin female pin idc socket connector2.54mm
pcb straight 7-pin female pin idc socket connector2.54mm
pcb straight 7-pin female pin idc socket connector2.54mm

pcb straight 7-pin female pin idc socket connector2.54mmpcb straight 7-pin female pin idc socket connector2.54mmpcb straight 7-pin female pin idc socket connector2.54mm





Material Specification:



  • Contact pitch: 2.54mm
  • Connecting type: right angle type
  • Poles option: 2-100 pos
  • Materials:

         a.Contact: brass

         b.Insulator: PBT+30%G.F, UL94V-0 rated

  • Contact plating: Au or Sn over 50µ Ni
  • Packaging: PE Bag/ Tray

Electronic performances:



  • Current rating: 3A
  • Contact resistance: 30mΩ (maximum)
  • Insulation resistance: 1,000mΩ (minimum)
  • Withstand voltage: 500V AC/minute
  • Operating temperature: -40 to +105°
pcb straight 7-pin female pin idc socket connector2.54mm

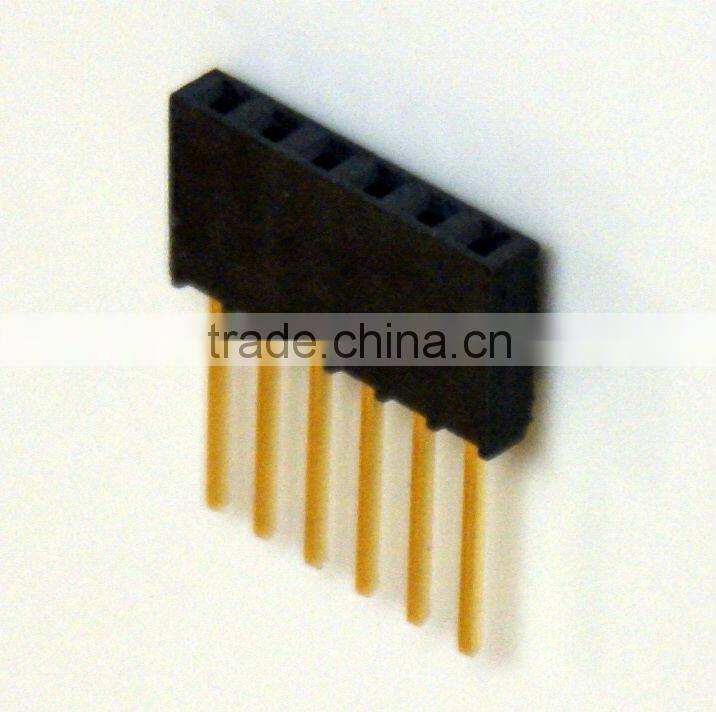

6 Pin Stackable Female Header

pcb straight 7-pin female pin idc socket connector2.54mm

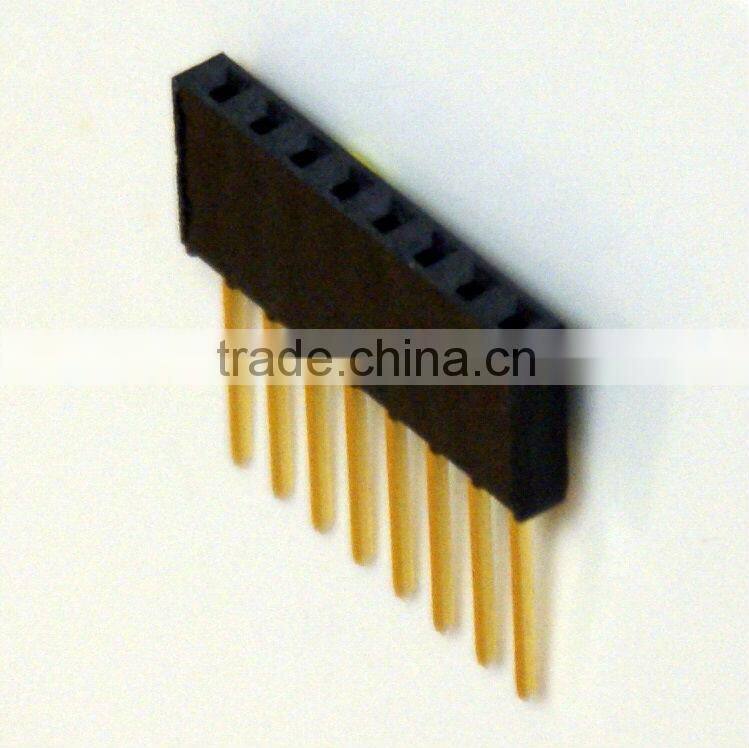

8 Pin Stackable Female Header

Pitch Spacing:
 2.54mm / 0.1"
Number of Contacts:
 8
Number of Rows:
 1

pcb straight 7-pin female pin idc socket connector2.54mm

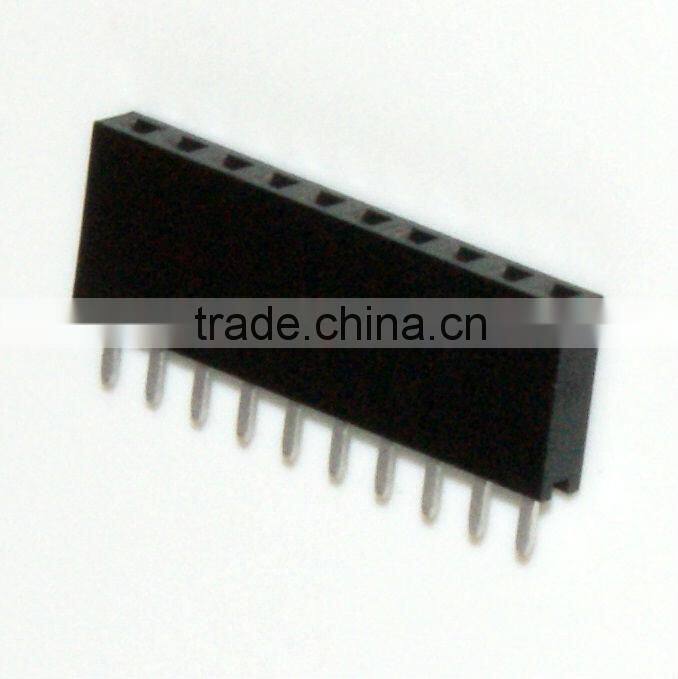

10 Pin Female Header



Use these board connectors to tie multiple boards together. You can cut extras off with diagonal cutters, loosing one pin each cut.

Color: Black
Connector Type: Header
Contact Finish: Tin
Pitch: 0.100" (2.54mm)
Number of Positions: 10
Contact Type: Female Socket
Manufacturer No.:  2212S-10SG-85



pcb straight 7-pin female pin idc socket connector2.54mm

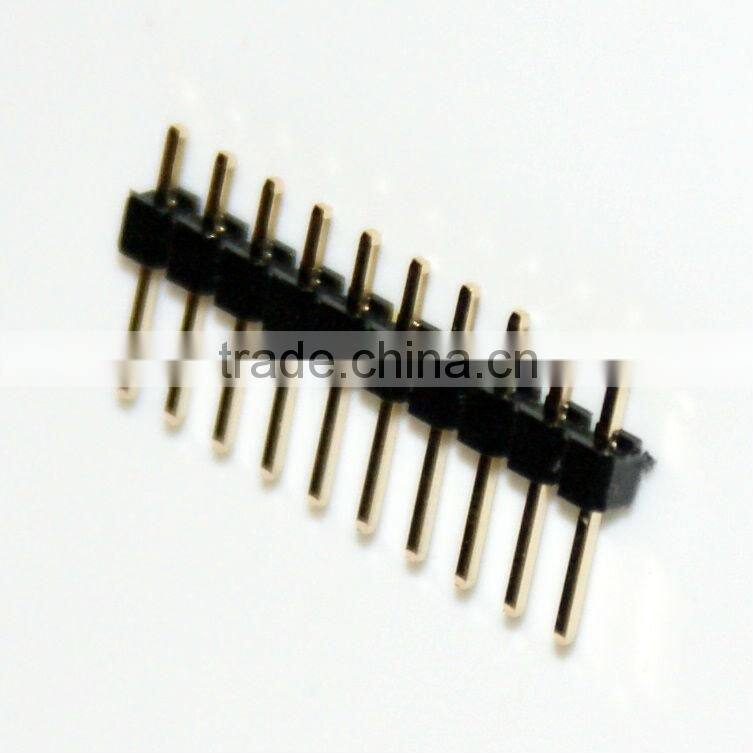

10 Pin Header

Use these board connectors to tie multiple boards to each other. You can cut them to the length you desire.

Gender: Header
No. of contacts: 10
Pitch spacing: 2.54mm / 0.1"
Contact termination: Through hole
Contact material: Copper alloy
Contact plating: Gold
No. of rows: 1
Manufacturer No.:  2211S-10G

pcb straight 7-pin female pin idc socket connector2.54mm

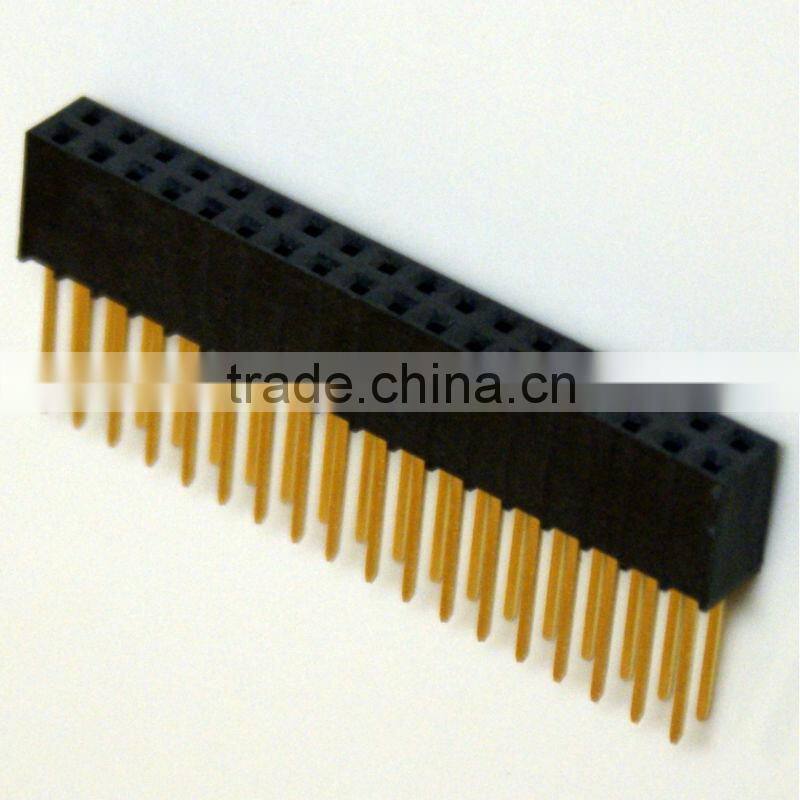

2 x 18 Pin Stackable Female Header

Stackable female header for building projects using the Arduino Mega Shield

2x18-pin female header with long legs

Color: Black
Contact Finish: Gold
Contact Type: Female Socket

Pitch Spacing:
 2.54mm / 0.1"
Number of Contacts:
 36
Number of Rows:
 2
Connector Type:
Header
pcb straight 7-pin female pin idc socket connector2.54mm

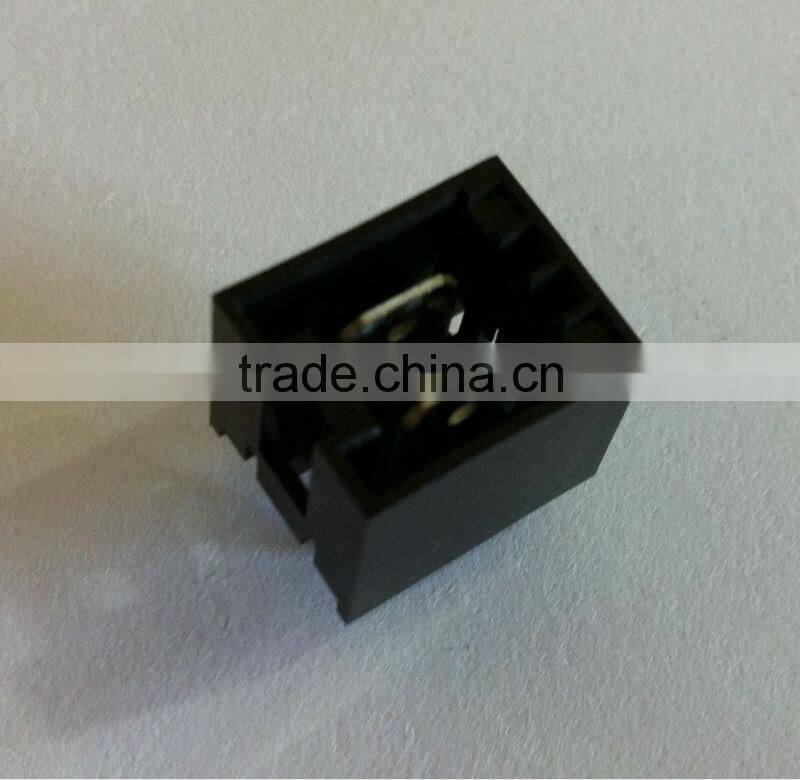

2 x 4 Female Header

This is an 8 way, 2 row female header & can be used for connecting Kliment's SD RAMPS to ourRAMPS electronics.

Manufacturer Number:
 2214S-08SG-85
Pitch Spacing:
 2.54mm
Number of Contacts:
 8
Number of Rows:
 2
Connector Type:
 Receptacle
pcb straight 7-pin female pin idc socket connector2.54mm
