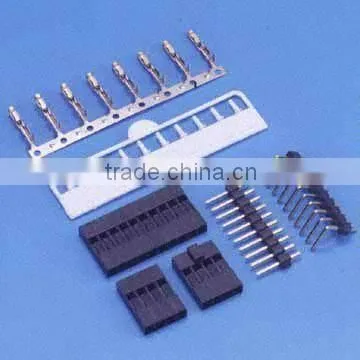

Help CenterFirst-class Crimp Connector Terminal With 0.10-Inch(2.54mm) Pitch, Single/D Terminals and Connectors Manufacturer
Related Products
-
6 Pins Housing Wire to Board ConnectorUS$ 0.015 - 0.46MOQ: 1000 Pieces -
2.54mm 19pins Housing Single Row Wire Board Connectors TerminalUS$ 0.016 - 0.46MOQ: 1000 Pieces
-
Wire to Board Connectors, 2.5mm Pitch, 2 PinsUS$ 0.016 - 0.46MOQ: 1000 Pieces
-
Wire to Board Connector, 1.25mm Pitch,8pinsUS$ 0.016 - 0.46MOQ: 1000 Pieces
-
Tyu Connector Wire to Board, 2.5mm Pitch, 10 PinsUS$ 0.016 - 0.46MOQ: 1000 Pieces
Specifications
terminals and connectors1. ROHS complaint
2. CE, ISO 9001: 2008
3. Rich experience in this line
4. High quality
Key Specifications/Special Features:
- 0.100-inch (2.54mm) pitch wire to wire board connectors
- PH2545 series
- Poles: 4 to 80
- Material: PBTP UL94V-0, black
- Suitable for CT2543 series terminal
-
Mates with CW330, CW2545 series box header
Key Specifications/Special Features:
0.100-inch (2.54mm) pitch wire to wire board connectors
CH2545 series
Poles: 4 to 80
Material: PBTP UL94V-0, black
Suitable for CT2543 series terminal
Mates with CW330, CW2545 series box headerKey Specifications/Special Features:
Housing
Part no.: PH325
Material: nylon 66 UL 94V-2
Poles: 2 to 20
Quantity: 500, 1,000 pieces/bag
Wafer
Part no.: CW325S (straight), CW325R (R/A)
Poles: 2 to 20
Material:
Post: brass tin-plated
Base: nylon 66 UL94V-2
Quantity: 500, 1,000 pieces/bag
Terminal
Part no.: PT325P, PT325B
Applicable wires: AWG #22 to #30
Material: phosphor bronze/brass
Finish: tin-plated
Hardness: H
Thickness:0.2mm
Quantity: 8,000 pieces/roll
Properties
Voltage rating: AC, DC 250V
Current rating: AC, DC 3A
Withstanding voltage: 1000VAC/minute
Insulation resistance: 1000Mohms minimum
Temperature range: -85 to +105 degrees Celsius
Applicable PC board thickness: 0.063 inches (1.6mm)
Contact resistance:
Initial value: 10m ohms maximum
After environmental testing: 20m ohms maximum
Other connectors are available:
Power connectors system:
Housing, terminal connector type
2.54mm to 6.35mm pitch
Terminal, housing, wafer connector type
2.54mm to 4.20mm pitch
PCB connector system:
Terminal, housing, wafer connector type
2.54mm to 3.96mm pitch
Center crimp terminal housing connector type
2.54mm to 3.96mm pitch
Terminal, housing, wafer, center connector type
3.96mm to 5.08mm pitch
Terminal, housing, wafer connector type
1.25mm to 8.0mm pitch
Terminal, housing connector, single and dependable type
2.50mm to 3.96mm pitch
Female header type 0.10-inch (2.54mm) pitch
Terminal, housing, wafer type (DIP, SMT)
1.25, 1.50, 1.58, 2.0, 2.3, 2.5, 2.54, 3.96, 4.2, 4.5, 5.08, 6.2, 6.35mm pitch
Other pitch sizes available
First class terminal, housing connector
0.10-inch (2.54mm), 0.10 x 0.10-inch (2.54 x 2.54mm) pitch
