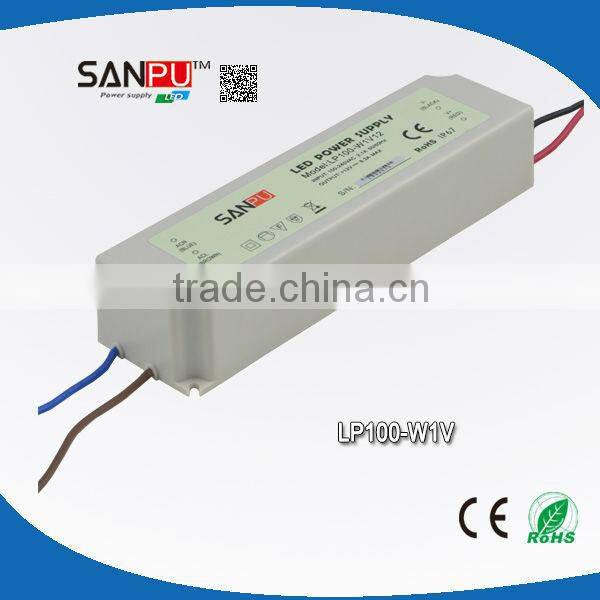

Constant Voltage IP67 100w 12v Waterproof Power Supply

Name: Constant Voltage IP67 100w 12v Waterproof Power Supply
Brand: sanpu
SKU: 111383591
Availability: InStock

Shenzhen Sanpu Intelligent Technology Co., Ltd.

US$ 16 - 22 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

sanpu

Model Number:

LP100-W1V

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name sanpu

Model Number LP100-W1V

Output Power Other, 100W

Output Type Single

Input Voltage 110V

Output Voltage 12V,15V,24V,48V

Output Frequency 47~63Hz

Output Current 0~100ma,0~150ma

Specifications

waterproof led power supply
1.Universal AC input
2.2 years warranty
3.IP67 UL&ROHS&CE
4.long lifespan

100w waqtreproof power supply

Typical features

1.universal AC input

2.high efficiency up to 87%

3.full isolated plastic case

4.fully encapsulated with IP67 level

5.suitable for LED lighting and moving sign applications

pliance to worldwide safety regulations for lighting

7.suitable for dry/damp/wet location

100w Specification

SPECIFICATION
MODEL		12V 100W	15V 100W	24V 100W	48V 100W
OUTPUT	DC VOLTAGE	12V	15V	24V	48V
	RATED CURRENT	8.5A	6.7A	4.2A	2.0A
	CURRENT RANGE	0~8.5A	0~6.7A	0~4.2A	0~2.0A
	RATED POWER	100W	100W	100W	100W
	RIPPLE& NOISE (MAX.)NOTE2	100mV	100mV	150mV	150mV
	VOLTAGE TOLERANCENOTE3	±1%	±1%	±1%	±1%
	SETUP , RISE TIME	200ms/220VAC 100ms/220VAC
	HOLD UP TIME(Typ.)	30ms/VAC
INPUT	VOLTAGE RANGE	85~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	PF>0.6/220VAC
	EFFICIENCY(Typ.)	85%	85%	87%	87%
	AC CURRENT(Typ.)	1.8a/110V,1A/230V
	INRUSH CURRENT(Typ.)	cold start 40A/230V
	short circiut	protection type: recovers automatically after fault condition is removed
PROTECTION	Over load	115~135% hiccup mode, auto-recovery
	over temp	≥85%°C cut off the output, auto-recovery
ENVIRONMENT	WORKING TEMP	-20°C~+60°C(no frost)
	WORKING HUMIDITY	20%~90%RH
	STORAGE TEMP , HUMIDITY	–40°C~85°C/10%~95%RH
SAFETY &EMC	SAFETY STANDARDS	CE ROHS IP67
	WITHSTAND VOLTAGE	I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
	EMC Test Standards	EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006
		EN61000-3-3:1995+A2:2005;EN61347-3-13:2006
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

100w waterproof led power supply types
