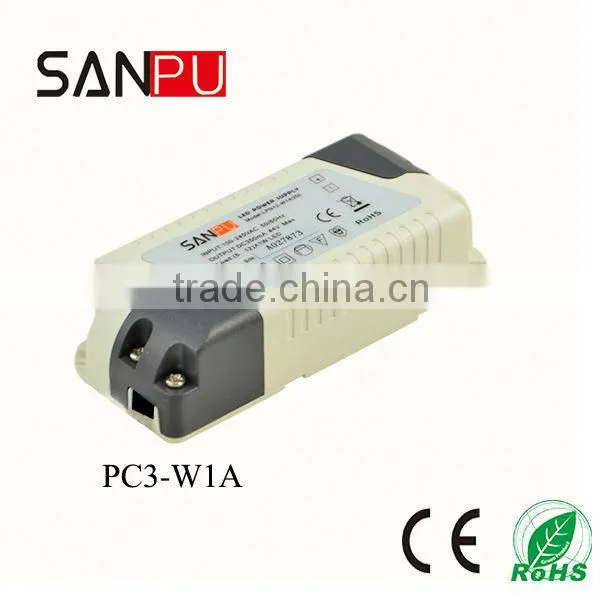

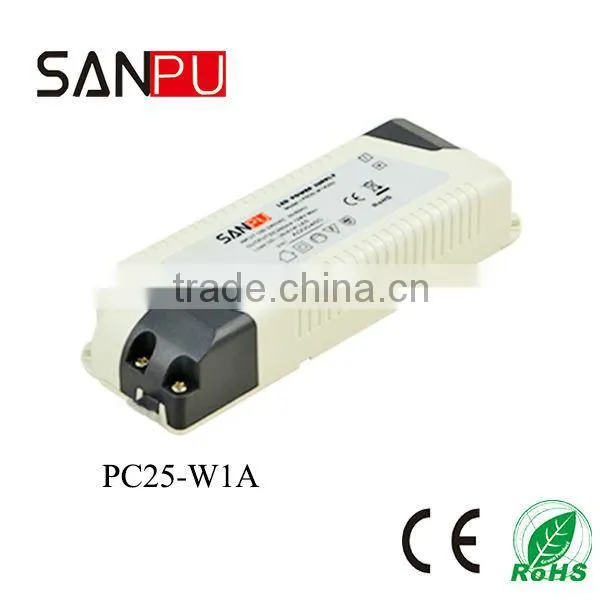

Power Supply 30W Switch Powersupply

Name: Power Supply 30W Switch Powersupply
Brand: SANPU
SKU: 111382793

US$ 4 - 8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SANPU

Model Number:

PC30-W1A350 700

Shenzhen Sanpu Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SANPU

Model Number PC30-W1A350 700

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 81~105V 21~30AV

Output Frequency 50/60Hz

Output Current 350mA 700mA

Specifications

1. CE, ROHS approved
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. High quality

Features

1. Constant current, single output

2.Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

9. Life span: 50,000H

AC input voltage range	100~240VAC 50/60Hz
AC inrush current	Cold-start current 20A/230V
Leakage current	<0.5mA/240VAC
Over load protection	115~135% hiccup mode, auto-recovery
Over-temp protection	≥105 °C hiccup mode , auto-recovery
Water level	IP60
Setup, rise, hold up time	200ms, 100ms, 30ms
Withstand voltage	I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute
Working temperature	-20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size	*0.11Kg, 100pcs/11Kg, 1324524(mm)*
Model	Output		Error	Temperature	Efficiency
PC19-W1A350	350mA	81~105V	± 5%	≤65°C	≥78%
PC19-W1A700	700mA	27~36V	± 5%	≤65 °C	≥79%
