SANPU 2013 Hot Selling CE ROHS FX ac dc Led Transformer 60w Led Driver Eikon Ems 300 Tattoo Power Supply

Shenzhen Sanpu Intelligent Technology Co., Ltd.
SANPU 2013 Hot Selling CE ROHS FX ac dc Led Transformer 60w Led Driver Eikon Ems 300 Tattoo Power Supply thumbnail-1
SANPU 2013 Hot Selling CE ROHS FX ac dc Led Transformer 60w Led Driver Eikon Ems 300 Tattoo Power Supply photo-1
US$ 1 - 13 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SANPU
Model Number:
FX60-W1V12
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SANPU
Model Number FX60-W1V12
Output Power 51 - 100W
Output Type Single
Input Voltage 220V
Output Voltage 12V
Output Frequency 47--63HZ
Output Current 0--5 A

Specifications

ac dc led transformer 12v led driver 60w eikon ems 300 tattoo power supply
100% full load burn-in test
CE ROHS
Built-in EMI

  SANPU 2013 hot selling CE ROHS OEM FX ac dc led transformer ac dc led transformer 60w led driver eikon ems 300 tattoo power supply







Feathers:

 1. Universal AC input / Full range;

  2. 100% full load burn-in test;

  3. Built-in EMI fiter with tiny ripple;

 4. High efficiency, high qulity, long life and high reliability;

 5. Abnormality protection function : short circuit ,over load ,over voltage,over temp;

 6. Convenient wiring;

 7. The product consists of indoor type and outdoor type;

 8. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.





FX Waterproof

FX60-W1V

MODEL5V 60W12V 60W15V 60W24V 60W
OUTPUTDC VOLTAGE5V12V15V24V
RATED CURRENT12A5A4A2.5A
CURRENT RANGE0~12A0~5A0~4A0~2.5A
RATED POWER60W60W60W60W
RIPPLE& NOISE (MAX.)NOTE280mV100mV100mV150mV
VOLTAGE TOLERANCENOTE3±1%±1%±1%±1%
SETUP , RISE TIME200ms/220VAC 100ms/220VAC
HOLD UP TIME(Typ.)20ms/220VAC
INPUTVOLTAGE RANGE85~264VAC
FREQUENCY RANGE47~63Hz
POWER FACTOR(Typ.)PF>0.6/220VAC
EFFICIENCY(Typ.)75%80%80%84%
AC CURRENT(Typ.)1.8A/115VAC,0.9A/230VAC
INRUSH CURRENT(Typ.)COLD START 36A/230VAC
PROTECTIONShort circuitProtection type : recovers automatically after fault condition is removed
Over load105~135% hiccup mode , auto-recovery
Over voltage115%~135% Cut off the output , auto-recovery
Over temperatureRectifier ≥90°C cut off the output , auto-recovery
ENVIRONMENTWORKING TEMP-20°C~ +60°C
WORKING HUMIDITY20%~90%RH
STORAGE TEMP , HUMIDITY-40°C~+85°C,10%~90%RH
SAFETY & EMCSAFETY STANDARDSCE,ROHS
WITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC Test StandardsEN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
NOTE1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr .
3.Tolerance : includes set up tolerance , line regulation and load regulation .





Introduction

SANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supply

SANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supply

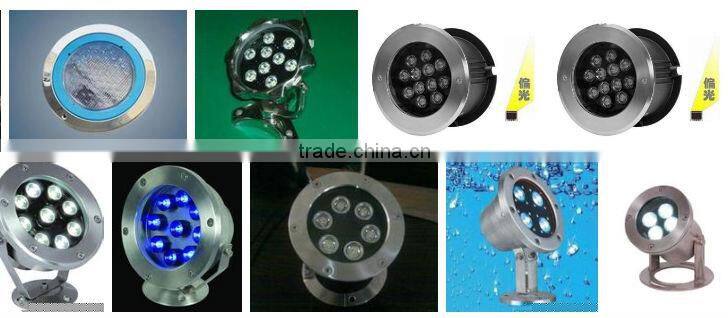

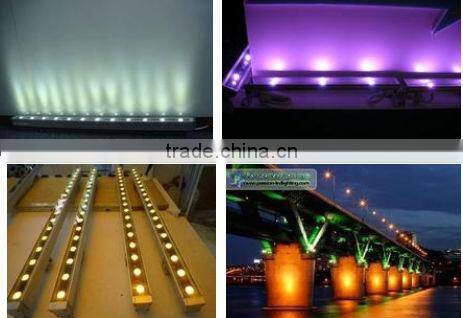

Applications



Q: What the power supply can be used for ?







A: Good for led lights,cctv,atx,lcd tv,lg tv,etc.















SHENZHEN SHANPU INTLLIGENT TECNOLOGY CO., LTD. is special power supply Manufacturer. Our factory specializes in switching power supply. Switching power supply can be used for strip light, point source, led hurdle lamp, flash light,light bulb, led COB ceiling light, led downlight, led spotlight, etc.





 SANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supplySANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supplySANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supplySANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supplySANPU 2013 hot selling CE ROHS FX ac dc led transformer 60w led driver eikon ems 300 tattoo power supply
