AC DC 12V Led Ultra Thin Switch Power Supply Design

FOB Price

US$ 7 - 12 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. CE, ROHS approved
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. Ultra thin

Features

1.Ultra thin type, single output

2.Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

9. Life span: 50,000H

AC input voltage range	85~132VAC 170~264VAC 47~63Hz
Input current	3.2A/115V 1.6A/230V
AC inrush current	Cold-start current 20A/115V 40A/230V
Leakage current	<2.5mA/240VAC
DC adjustable range	± 10% rated output voltage
Over load protection	105~150% hiccup mode, auto-recovery
Over-Voltage protection	115~135% cut off the output, auto-recovery
Setup, rise, hold up time	200ms, 50ms, 20ms
Withstand voltage	I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute
Working temperature	-20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size	*0.39Kg, 50pcs/19.5Kg, 1588834(mm)*
Model	Output		Error	Range	Efficiency

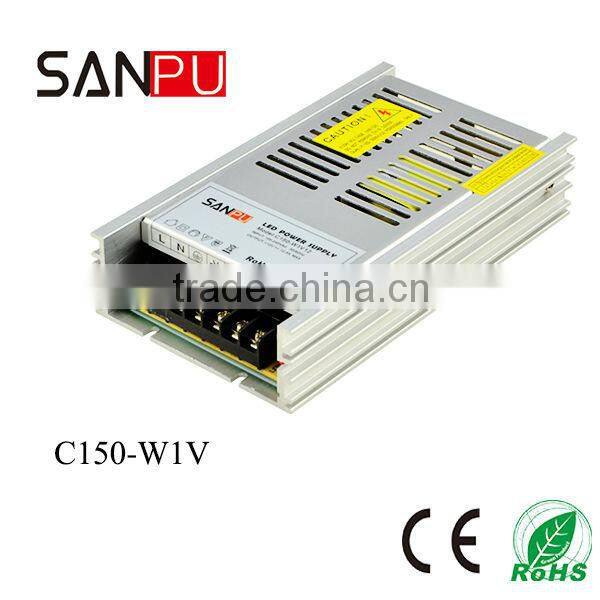

C150-W1V5	5V	0~30A	± 1%	100mv	81%
C150- W1V12	12V	0~12.5A	± 1%	120mv	84%
C150- W1V15	15V	0~10A	± 1%	120mv	85%
C150 -W1V24	24V	0~6.5A	± 1%	120mv	85%
