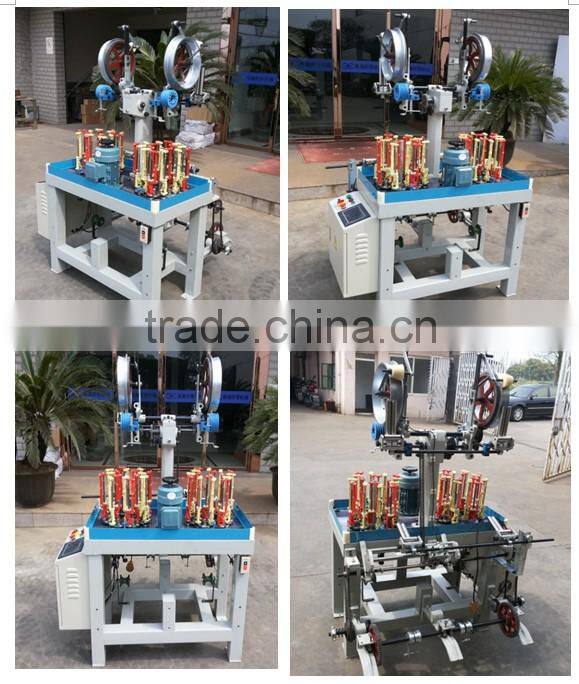

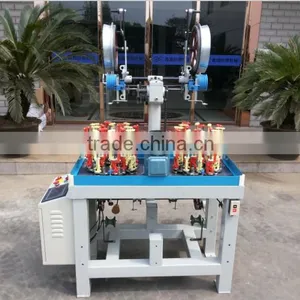

Help CenterHigh Speed 16 Spindle Wire Cable Coated Braiding Machine
Related Products
-
16spindle Copper Wire Braiding Machine XXH130-16-2US$ 100 - 10,000MOQ: 1 Set -
Copper Wire Braiding MachineUS$ 100 - 10,000MOQ: 1 Set
-
XH110 Series High Speed 32 Spindle Wire Cable Braiding Machine XH110-32-2US$ 100 - 10,000MOQ: 1 Set
-
GX180 Series High Speed 48 Spindle Rope Braiding MachineUS$ 100 - 10,000MOQ: 1 Set
-
High Speed Metal Hoses and Cable Braiding Machine XH90-24-2US$ 100 - 10,000MOQ: 1 Set
Specifications
Intellignrt control system and Reliability ,satetyHigh quality and Factory,cheap
advanced technology
High quality braiding machine
We are specialized in the production of rope braiding machine,carrier braiding machine,high speed braiding machine,high speed braiding machine,sleeve braiding machine,cable braiding machine,twisted rope braiding machine ,elastic belt braiding machine ,fancy rope braiding machine,automatic bobbin winding machine,semi-automatic bobbin wingding machine,shoelace and gift bag rape tipping machine and other machinery and accessories.The products are sold throughout the country and over the world.The company is a leading manufacturer and researcher in china’s braiding machinery industry.
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| XH90,110 Series High Speed Wire Cable coated Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XH90-16-2 | 16 | 2 | 1370 X 950 X 1450 | 0.75 | 320 | A | Φ48 X 140 | |
| XH90-24-2 | 24 | 2 | 1520 X 1400 X 1760 | 0.75 | 320 | A | Φ48 X 140 | |
| XH110-8-4 | 8 | 4 | 1300 X 400 X 1700 | 0.75 | 320 | A | Φ48 X 140 | |
| XH110-12-2 | 12 | 2 | 1000 X 600 X 1500 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-16-2 | 16 | 2 | 1300 X 600 X 1500 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-24-2 | 24 | 2 | 1450 X 650 X 1600 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-32-2 | 32 | 2 | 1550 X 700 X 1600 | 1 | 320 | AB | Φ58 X 180 | |

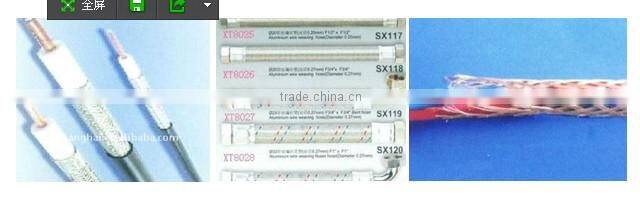

Range of products:Various cable and metal hoses.Suitable for braiding metal fiber,copper wire,and chemical fiber.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
5.details:
packaing
spooling machine
samples:
About us
1. 1.Professional technical team:
2. comfortable working environment:
3. Certification:
COTANCT US:
Address:NO.8 zone,NO.3841 Huqingping Road, shanghai ,21703,china.
website:
shxianghai.en.china.cn
contact: Amy Xia
Skype:xianghai-amy QQ:2466224175 FAX:21-6975655
