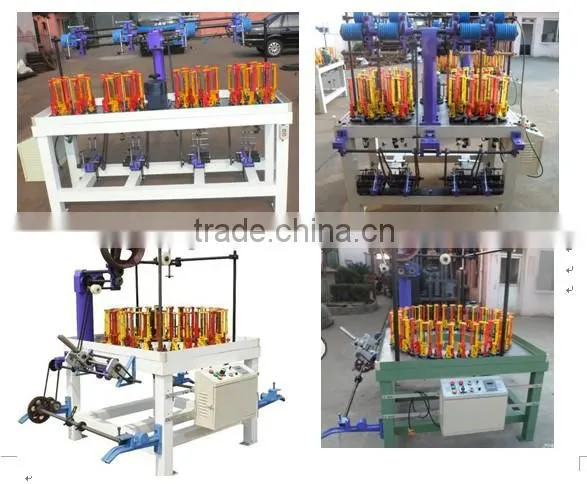

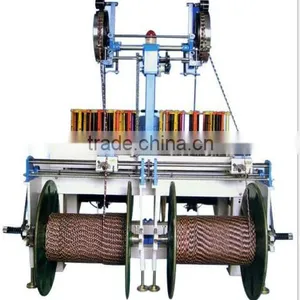

Help CenterHigh Speed Metal Hoses and Cable Braiding Machine XH90-24-2
Related Products
-
Automatic High Speed Wire and Cable Braiding MachineUS$ 2,000 - 4,000MOQ: 1 Set -
32 Spindle High Speed Wire Cable ,copper Wire,metal Fiber Knitting Machine XH110-32-2US$ 4180.00 - 4180.00MOQ: 1 Set
-
16 Spindle High Speed Metal Fiber,wire Cable,chemical Fiber Knitting Machine XH130-16-2US$ 3350.00 - 3350.00MOQ: 1 Set
-
32 Spindle High Speed Electric Wire Cable,copper Wire,metal Fiber Making Machine XH110-32-2US$ 4080.00 - 4080.00MOQ: 1 Set
-
32 Spindle High Speed Wire Cable Metal Fiber Copper Wire Making Machine XH110-32-2US$ 4180.00 - 4180.00MOQ: 1 Set
Specifications
High Speed Cable Braiding MachineBraiding wire, cable, metal or chemical fiber.
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| XH90,110 Series High Speed Wire Cable Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XH90-16-2 | 16 | 2 | 1370 X 950 X 1450 | 0.75 | 320 | A | Φ48 X 140 | |
| XH90-24-2 | 24 | 2 | 1520 X 1400 X 1760 | 0.75 | 320 | A | Φ48 X 140 | |
| XH110-8-4 | 8 | 4 | 1300 X 400 X 1700 | 0.75 | 320 | A | Φ48 X 140 | |
| XH110-12-2 | 12 | 2 | 1000 X 600 X 1500 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-16-2 | 16 | 2 | 1300 X 600 X 1500 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-24-2 | 24 | 2 | 1450 X 650 X 1600 | 0.75 | 320 | AB | Φ58 X 180 | |
| XH110-32-2 | 32 | 2 | 1550 X 700 X 1600 | 1 | 320 | AB | Φ58 X 180 | |
Range of products:Various cable and metal hoses.Suitable for braiding metal fiber,copper wire,and chemical fiber.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine

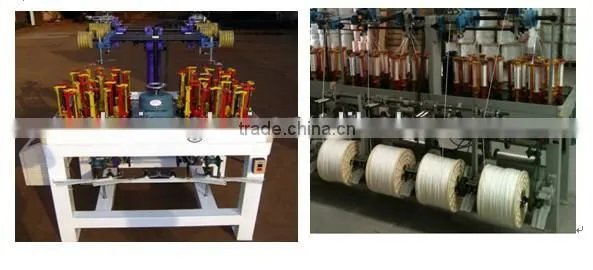

samples:
About us
1. 1.Professional technical team:
2. comfortable working environment:
4. Certification:
COTANCT US:
Address:NO.8 zone,NO.3841 Huqingping Road, shanghai ,21703,china.
website:
shxianghai.en.china.cn
contact: Amy Xia
Skype:xianghai-amy QQ:2466224175 FAX:21-6975655
WELCOME YOU
