Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Weaving Machine > 130series 48 Carriers Marine Ropes,fire Rope, Decorative Rope Braiding Machine

130series 48 Carriers Marine Ropes,fire Rope, Decorative Rope Braiding Machine

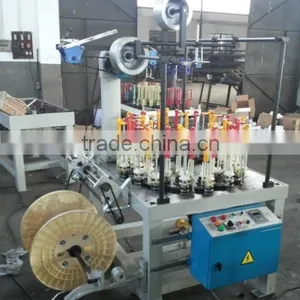

130series 48 Carriers Marine Ropes,fire Rope, Decorative Rope Braiding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Xianghai
Model Number:
XD130-48-1
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Xianghai
Model Number XD130-48-1
After-sales Service Provided Overseas service center available

Application of braiding products:

High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..

Range of braiding materials:

All flexible fibers, yarns, belts, threads

Control system:

- Frequency inverter controlled production speed.

- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)

- Speed set

- Control cabinet

Scope of supply:

-       Machine with control system

-       Operation and maintenance manual

-       Tool box

-       Wearing and sparing parts

-       Training and trial operation

-       Packing

Specifications

-       Intellignrt control system and Reliability

-       High quality and Factory,Cheap1

-       Flexible Operation and High Poductivity

-       CE,ISO9001

130 series 48spindle  High Speed  marine ropes,frie rope,fishing net rope braiding machine XD130-48-1



Model Spindle Qty Head Qty Measurement(mm) Power(kw) Max.Horngear Speed(rpm) Spindle Type Bobbin Size(mm)
XD130-16-2 16 2 1520×950×1760 0.75 270 B Φ70×210
XD130-24-1 24 1 1100×1100×1760 1.1 270 B Φ70×210
XD130-32-1 32 1 1280×1280×1760 1.1 270 B Φ70×210
XD130-40-1 40 1 1280×1280×1900 1.5 270 B Φ70×210
XD130-48-1 48 1 1400×1400×1900 1.5 270 B Φ70×210

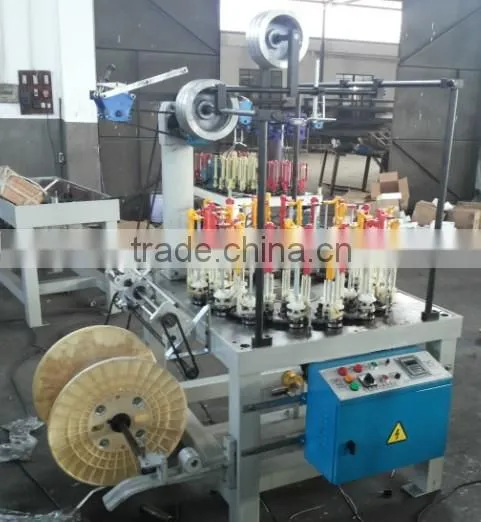

Product pictures:

 130series 48 carriers marine ropes,fire rope, decorative rope braiding machine







          Want to know more? Welcome to contact me   ^_^



Skype: xianghai-amanda

Hot line:  +86-13816564413

QQ:      3116433655

Address:NO.8 zone,NO.3841 Huqingping Road, shanghai ,21703,china.

 website:

             shxianghai.en.china.cn



               Your inquiry will get our prompt reply!
