Hot Sale U Type High Temperature Molybdenum Disilicide Heating Elements for Lab Muffle Furnace
US$ 9.9 - 199
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Duct Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
STA High Temperature MoSi2 Heating Elements Molybdenum Disilicide Heater for Laboratory Tube FurnaceUS$ 9.9 - 199MOQ: 2 Pieces -
STA Cheap Price High Super Molybdenum Disilicide Mosi2 Heating ElementsUS$ 9.9 - 199MOQ: 2 Pieces
-
STA High Super Mosi2 Heating Elements1800C Grade With Factory PriceUS$ 9.9 - 199MOQ: 2 Pieces
-
STA Hot Sale High Temperature Grade 1800 Molybdenum Disilicide HeaterUS$ 9.9 - 199MOQ: 2 Pieces
-
Molybdenum Disilicide Heating Element / MoSi2 Rods With ClampsUS$ 16 - 230MOQ: 1 Piece
Condition
New
Type
Duct Heater
Power Source
Electric
Place of Origin
Henan, China
Brand Name
STA
Model Number
STA 0017B
Dimension(L*W*H)
Custom Size
Weight
Final Dimension
Voltage
220V
Power(W)
as requirement
Certification
ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
U Type MoSi2 heater molybdenum disilicide heating elements with high quality
Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc.
MoSi2 heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.

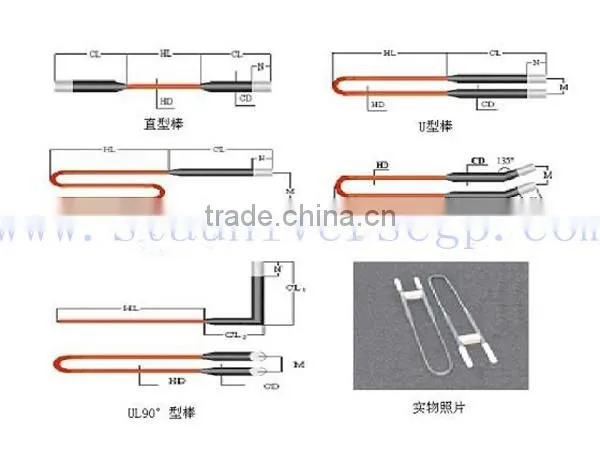

Order sample(U shape):
D1=6mm, D2=12mm, Le=200mm, Lu=180mm, A=30mm
Please specify as: dia6/12x200x180x30mm (dia D1/D2xLexLuxA mm)
D1 = the diameter of hot zone
D2 = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone
Physical Property:
| volume density | 5.5~5.6g/cm³ | bend strength | 5.5~25kg/cm² |
| vickers-hardness | (hv)570kg/mm² | porosity rate | 7.4% |
| water absortion | 1.2% | hot extensiblity | 4% |
Recommend surface load:
| Furnace Temp(°c) | 1400 | 1500 | 1600 | 1650 | 1700 |
| Surface looad of hot zone(W/cm²) | <18 | <15 | <12 | <10 | <8 |
Note: Shifting gear must be done quickly, otherwise high current surges may cause damage
