Specification
1. mosi2 heating elements for electric furnace
2. U/UL/W/WL/irregular type Mosi2 heating elements
3. Diameter:3/6,4/9,6/12,9/18mm

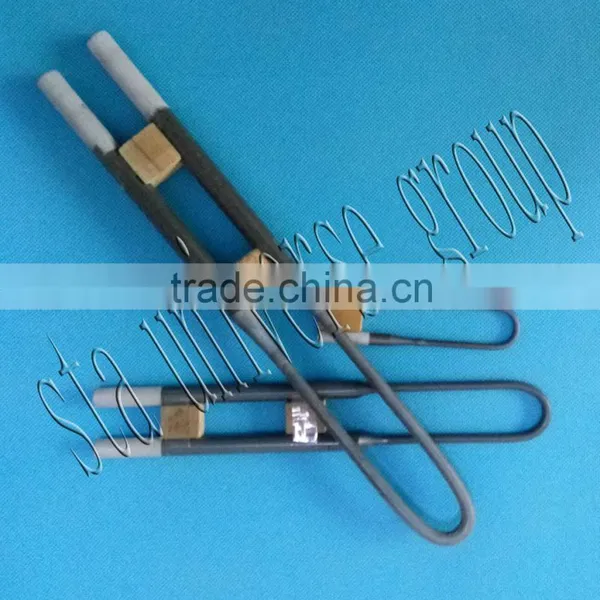

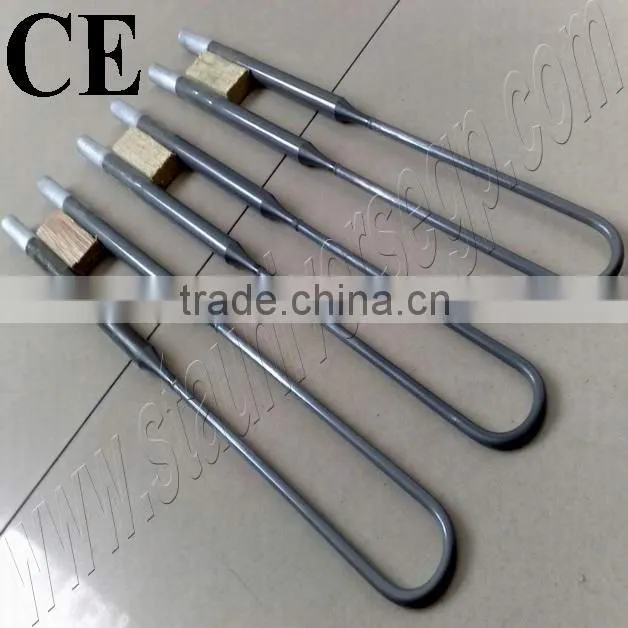

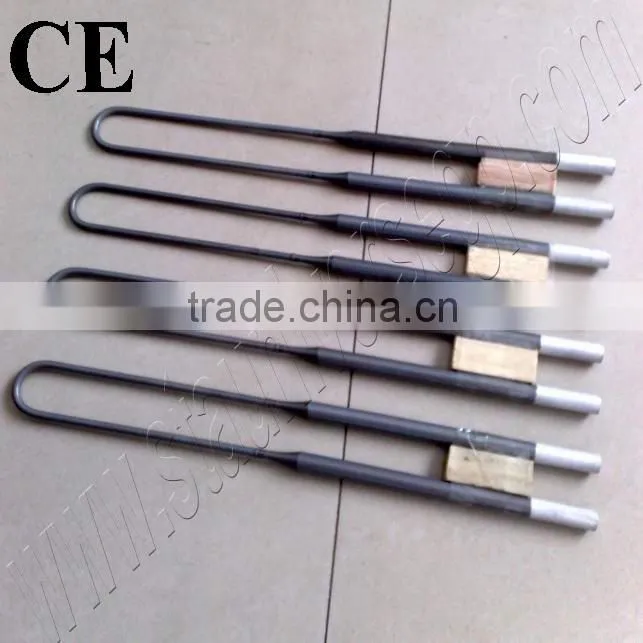

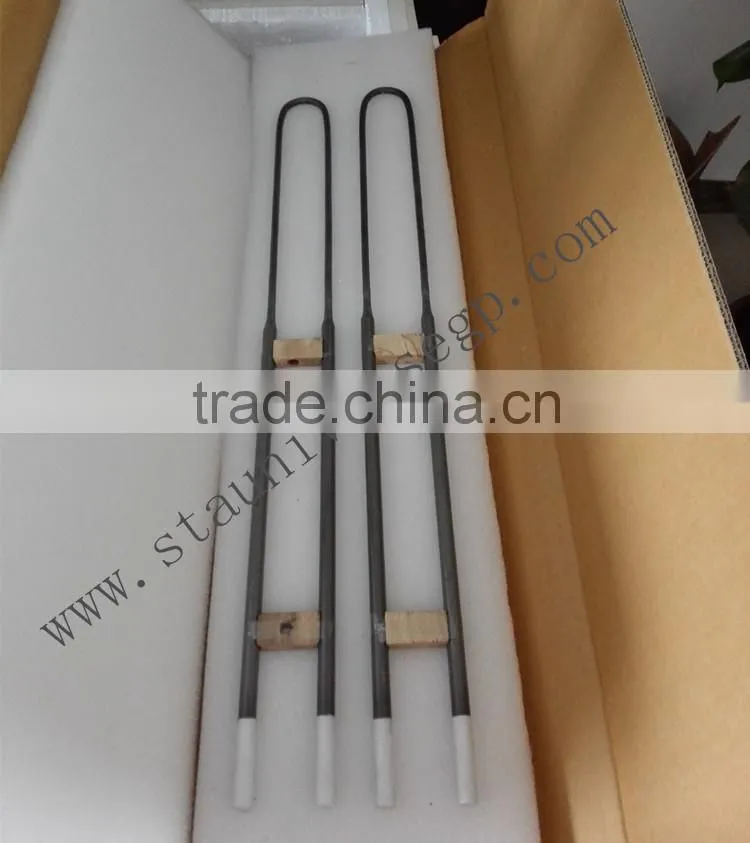

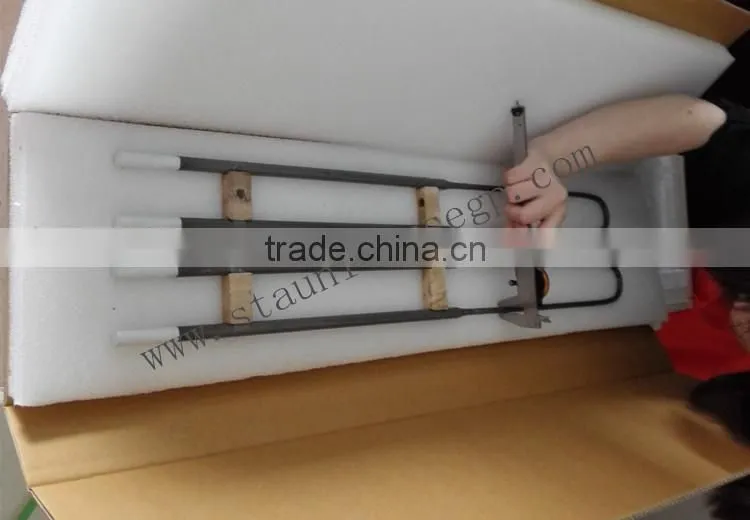

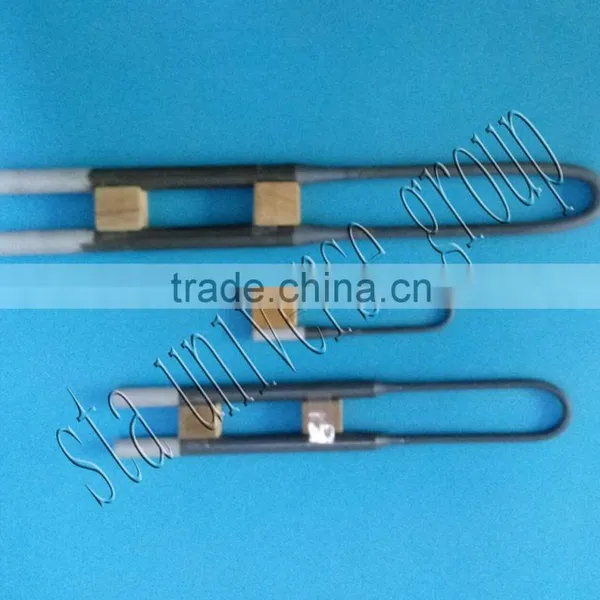

Molybdenum Disilicide heating element / MoSi2 rods with clampsdge heater
MoSi2 heating elements are based on molybdenum disilicide.The molybdenum disilicide heating elements prevents the inner core from oxidation by forming a compact quartz glass coating at the surface under high temperature.The temperature generated by MoSi2 goes as high as
1700~1800°C in oxidation atmosphere. They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc. The resistance of the heating elements is independent on their time. The MoSi2 heating elements hardly age, which allows the mixed use of new and old packages.

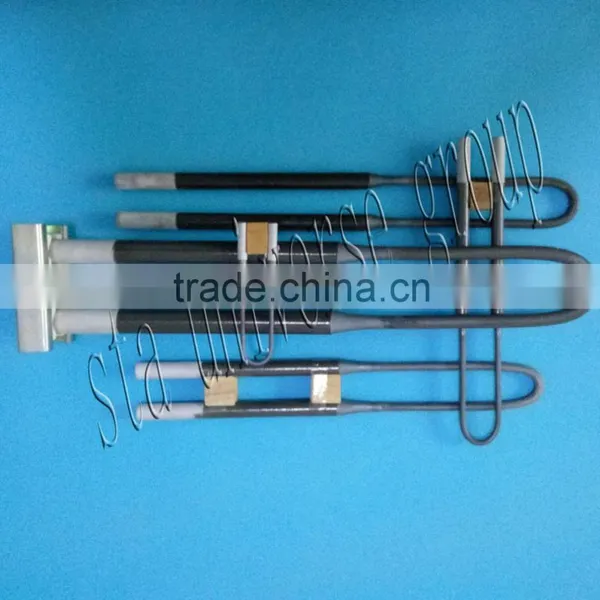

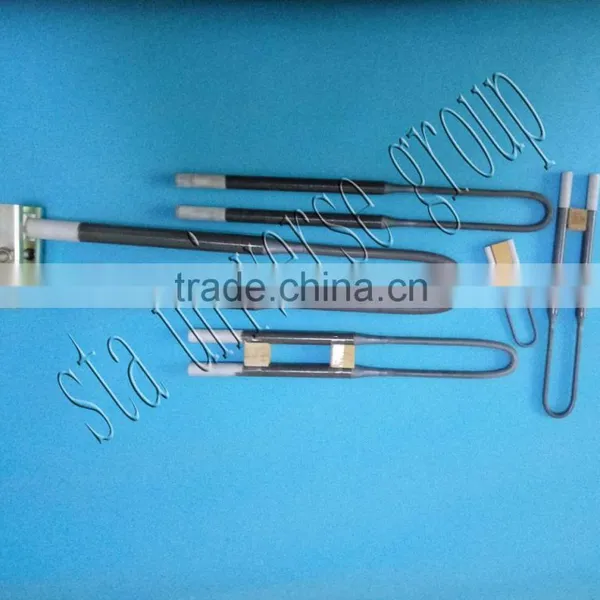

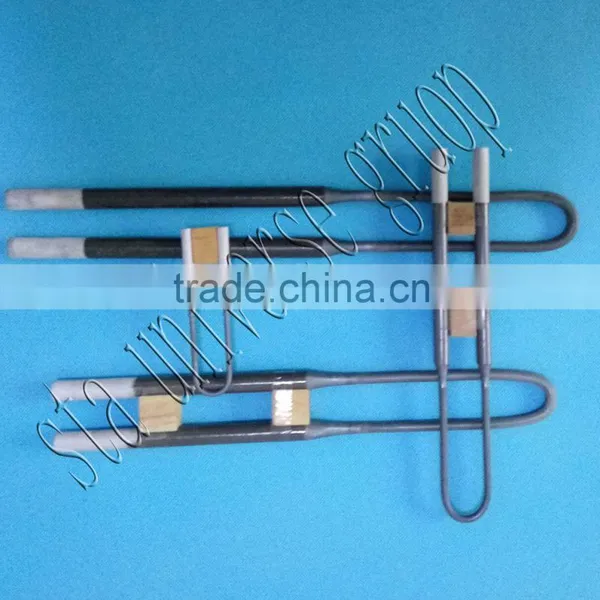

We make U shape, W shape, Straight shape (X shape) and bend shape (L shape), etc. The dimension ranges from 3/6, 4/9, 5/10, 6/10, 6/12, 6/14, 7/14, 8/16, 9/18 to 12/24mm. Special request from customers is welcome.

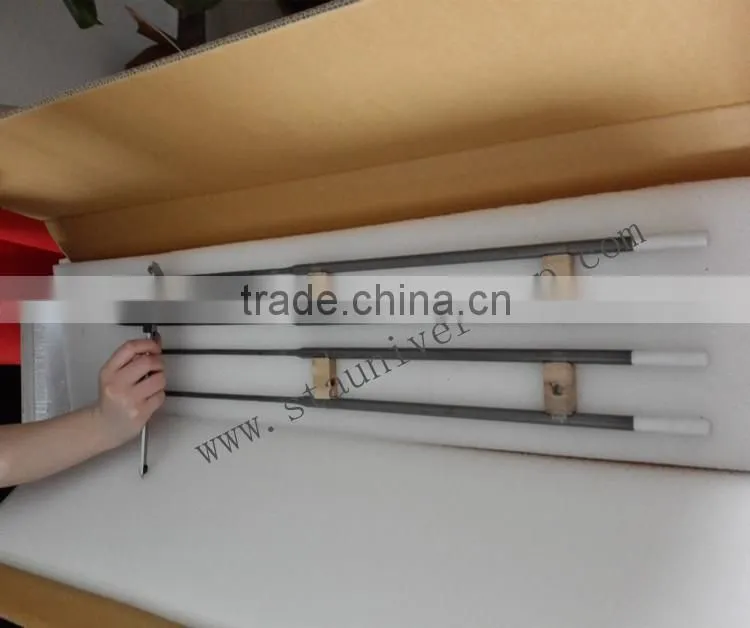

The STA MoSi2 Heating Elements belong to the brittleness material so that they are easy to rupture at the normal temperature, which brings some difficulty to transport and install, but it may be avoided if they were installed and used correctly.
1) Physical property for mosi2 heating elements for electric furnace
Volume density |
5.5~5.6kg/cm3 |
Bend strength |
515~25kg/cm2 |
Vickers-hardness |
(HV)570kg/mm2 |
Porosity rate |
7.4% |
Water absorption |
1.2% |
Hot extensibility |
4% |
2)Recommend Surface load for mosi2 heating elements for electric furnace
Furnace Temp (C ) |
1400 |
1500 |
1600 |
1650 |
1700 |
Surface load of hot zone(w/cm2) |
<18 |
<15 |
<12 |
<10 |
<8 |
3)Chemistry property for mosi2 heating elements for electric furnace
MoSi2 heating element is used in the high temperature under oxidizing atmosphere.It will form the SiO2 film which can keep the element from being melted.When the temperature of element is more than 1700°C,the MoSi2 heating element must not be used in the temperature between 400°C and 700°C for a long time; otherwise the element will be cremated under the strong oxidizing function in the low temperature.
It should be pointed out that element cannot be used for rather long time in 400-700°C,or it will be powdered owing to the strong oxidizing action in low temperature.
The using temperature under the different atmosphere:
Atmosphere |
The Maximum Using Temperature of Element |
|
1700 Grade |
1800 Grade |
|
NO2,CO2,O2,Air |
1700°C |
1800°C |
He,Ar,Ne |
1650°C |
1750°C |
SO2 |
1600°C |
1700°C |
CO,H2 |
1500°C |
1600°C |
WetH2 |
1400°C |
1500°C |
DryH2 |
1350°C |
1450°C |

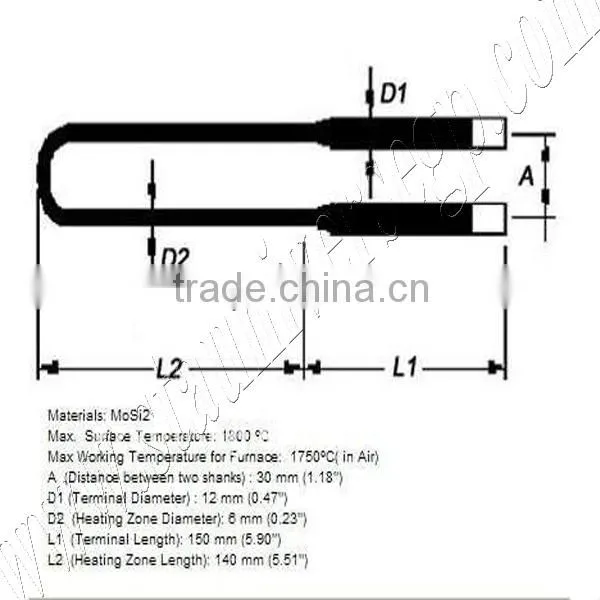

When you place order,pls kindly tell us the following things
Diameter of Hot Zone (D1):mm
Diameter of Cold End (D2):mm
Length of Hot Zone (Le):mm
Length of Cold End (Lu):mm
Shank spacing (A):mm
