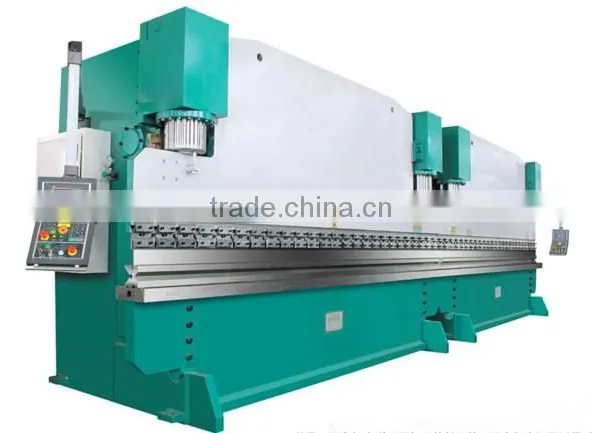

2-WC67K Series Tandem Hydraulic CNC Press Brake

2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-1
2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-2
2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-3
2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-4
2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-5
2-WC67K Series Tandem Hydraulic CNC Press Brake thumbnail-6
2-WC67K Series Tandem Hydraulic CNC Press Brake photo-1

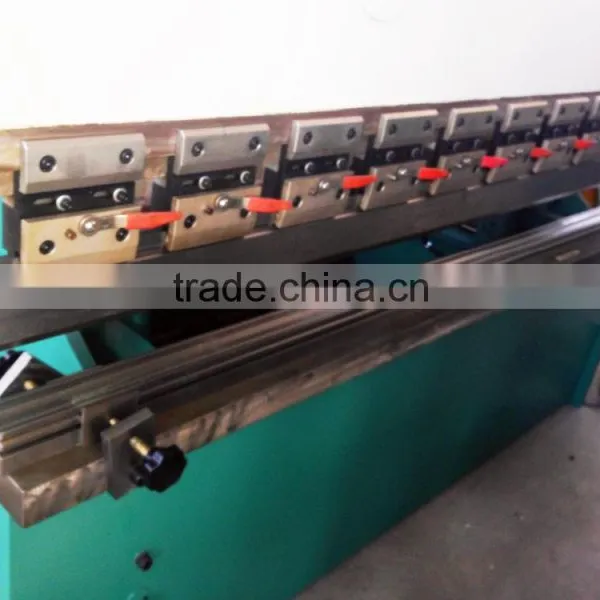

2-WC67K Series Tandem Hydraulic CNC Press Brake photo-2
2-WC67K Series Tandem Hydraulic CNC Press Brake photo-3

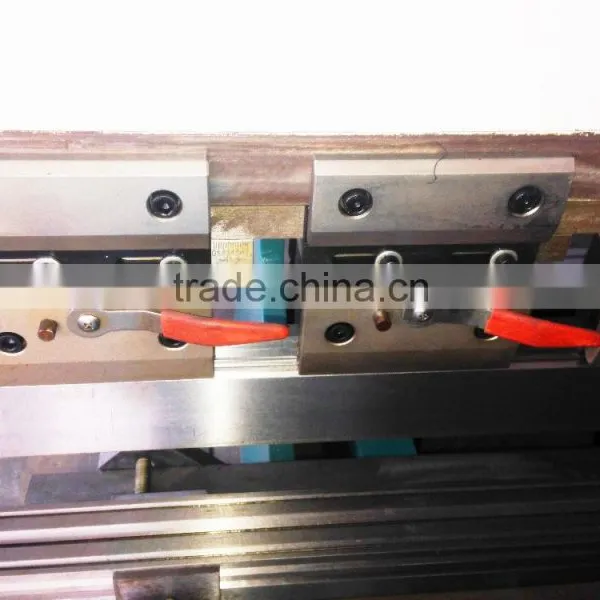

2-WC67K Series Tandem Hydraulic CNC Press Brake photo-4

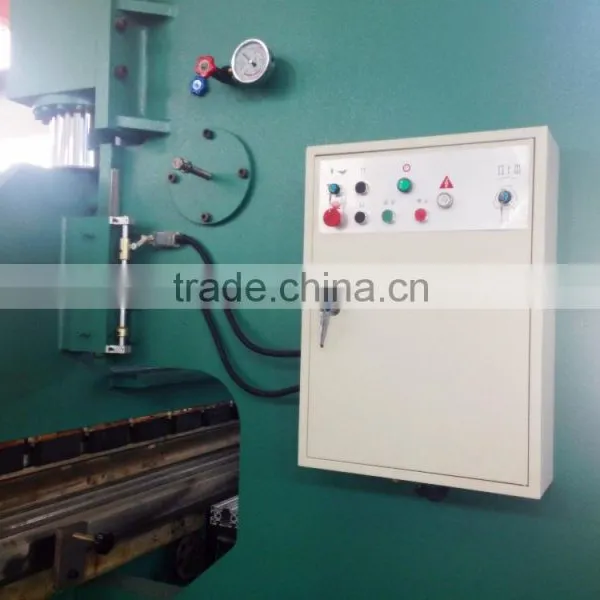

2-WC67K Series Tandem Hydraulic CNC Press Brake photo-5

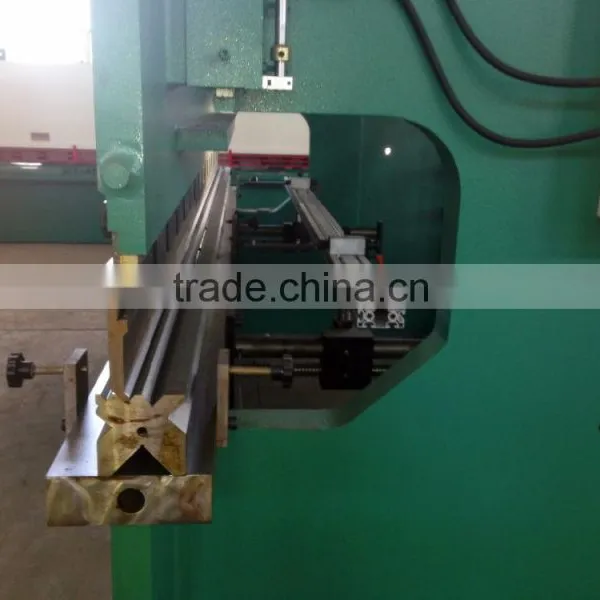

2-WC67K Series Tandem Hydraulic CNC Press Brake photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NJP
Contact Supplier Request Quote Chat Now
Nanjing Prosper Business And Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
main port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name NJP
Model Number 2-WC67K
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Carbon Steel
Power Other, Hydraulic, 2x7.5~2x55(Kw)
Automation Automatic
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Overseas service center available
Product Description

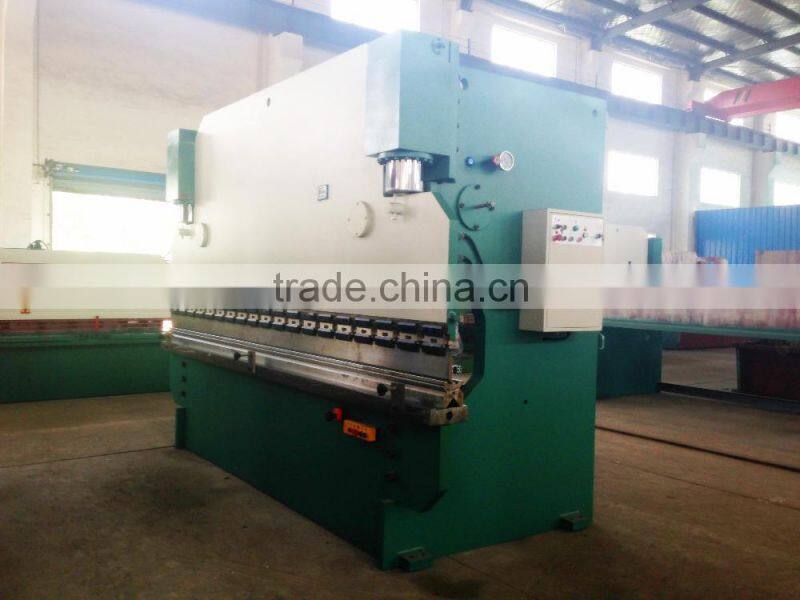

  2-WC67K Series Tandem Hydraulic CNC press brake

Technical parameters

     Model Norminal Force  Worktable  Poles Distance Throat Depth Slider travel  Max open  Power

      Dimension

       L x W x H
      TYPE (KN)      (mm)          (mm)        (mm)        (mm)      (mm)    (Kw)           (mm)
2-100/3200   2x1000  2x3200   2360   280 120  370 2x7.5 2x3200x1400x2200
2-160/3200       2x1600    2x3200          2500          350         180        410    2x11  2x3200x1600x2650
2-160/4000       2x1600    2x4000         3100          350         180        410    2x11  2x4000x1600x2650
2-160/5000 2x1600   2x5000   3600    350   180    410  2x11  2x5000x1700x2650
2-160/6000       2x1600     2x6000          4600         350        180        410   2x11 2x6000x1700x2700
2-250/3200       2x2500     2x3200          2540         350        250        450   2x18.5  2x3200x1600x2650
2-250/4000       2x2500    2x4000         3200         350        250       450   2x18.5 2x4000x1600x2650
2-250/5000       2x2500    2x5000         3600         350        250       450   2x18.5 2x5000x1700x3000
2-300/4000       2x3000    2x4000         3100         350        250       450    2x22 2x4000x2000x3000
2-300/5000       2x3000    2x5000         3600         350        250       450    2x22  2x5060x2000x3000
2-300/6000        2x3000    2x6000         4600         350        250       450    2x22 2x6000x2000x3000
2-400/4000       2x4000    2x4000         3100         400        300       480   2x22 2x4000x2100x3300
2-500/4000       2x5000    2x4000         3100         400        320       480   2x37 2x4000x2300x3300
2-500/5000       2x5000    2x5000         3600         400        320       480   2x37 2x5000x2300x3300
2-500/6000       2x5000    2x6000         4600         400        320       480   2x37 2x6000x2300x3300
2-630/5000       2x6300    2x5000         3600         400        320       480   2x45 2x5000x2300x3300
2-630/6000       2x6300    2x6000         4600         400        320       480   2x45 2x6000x2300x3300
2-800/8000       2x8000    2x8000         6700         400        320       480   2x55 2x8000x2400x3500



Features

Two WC67K series in same specification are chosen as main machine with double motor linkage synchro-device,which may work together to process overlong workpiece or operate seperately to increse production efficiency.

Defection copensation device is fitted,too.Mechanic and fluid servos with mechanic slider are utilized in synchronous device.The stroke of upper slider and the positon of rear apron are regulated quickly by machine and micro-regulated by hand eletronic NC display.



2-WC67K Series Tandem Hydraulic CNC press brake

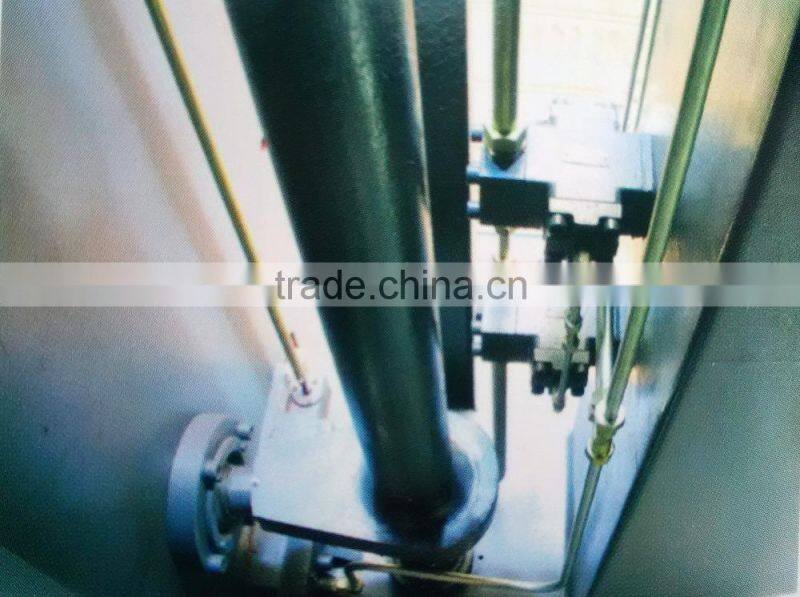

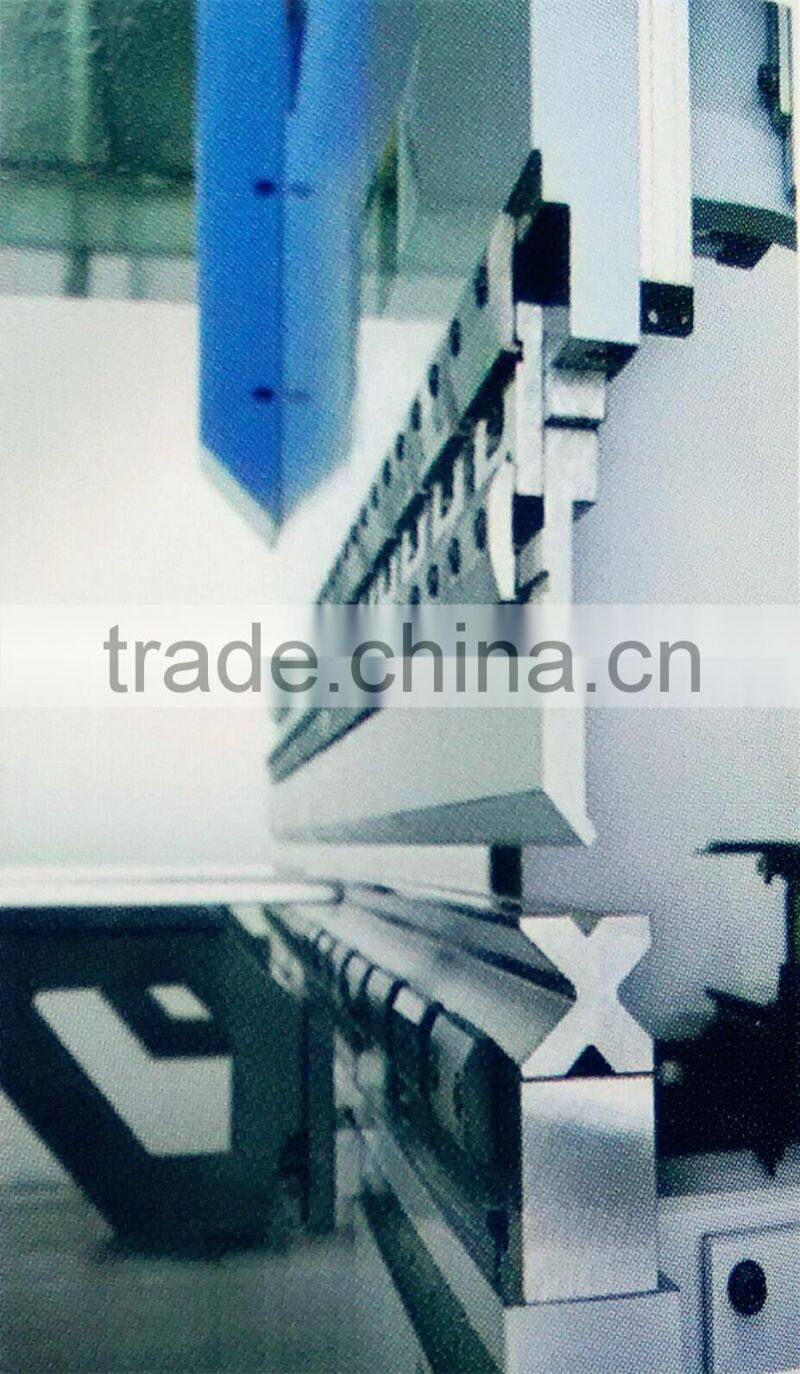

Oscillatingbearing structure


2-WC67K Series Tandem Hydraulic CNC press brake

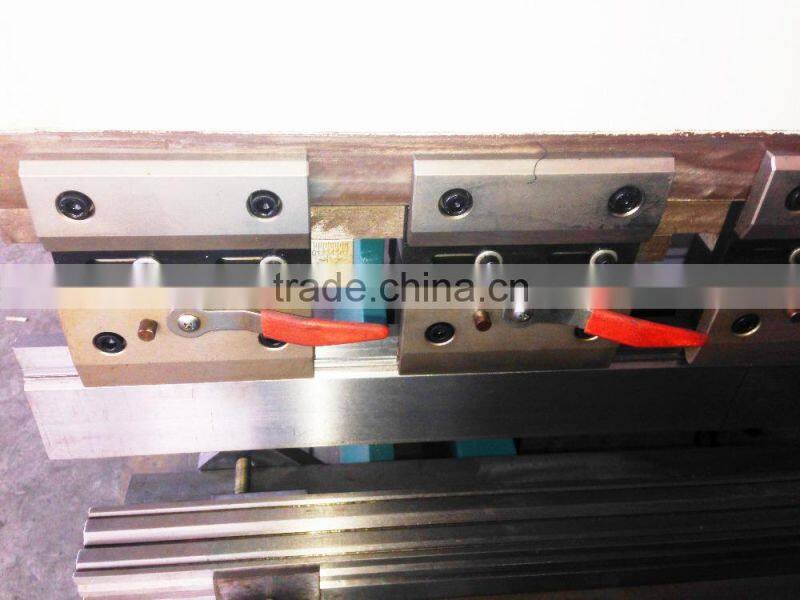

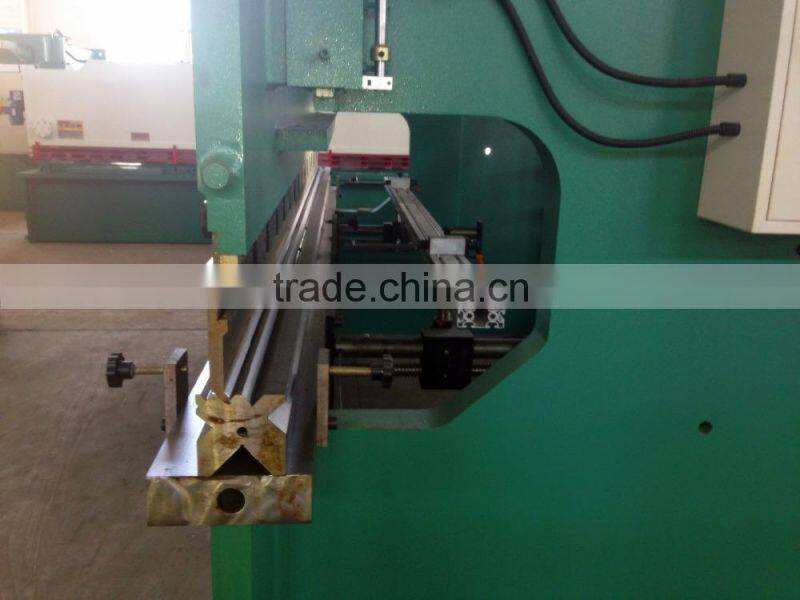

Multi-V lower tool (optional)


  2-WC67K Series Tandem Hydraulic CNC press brake

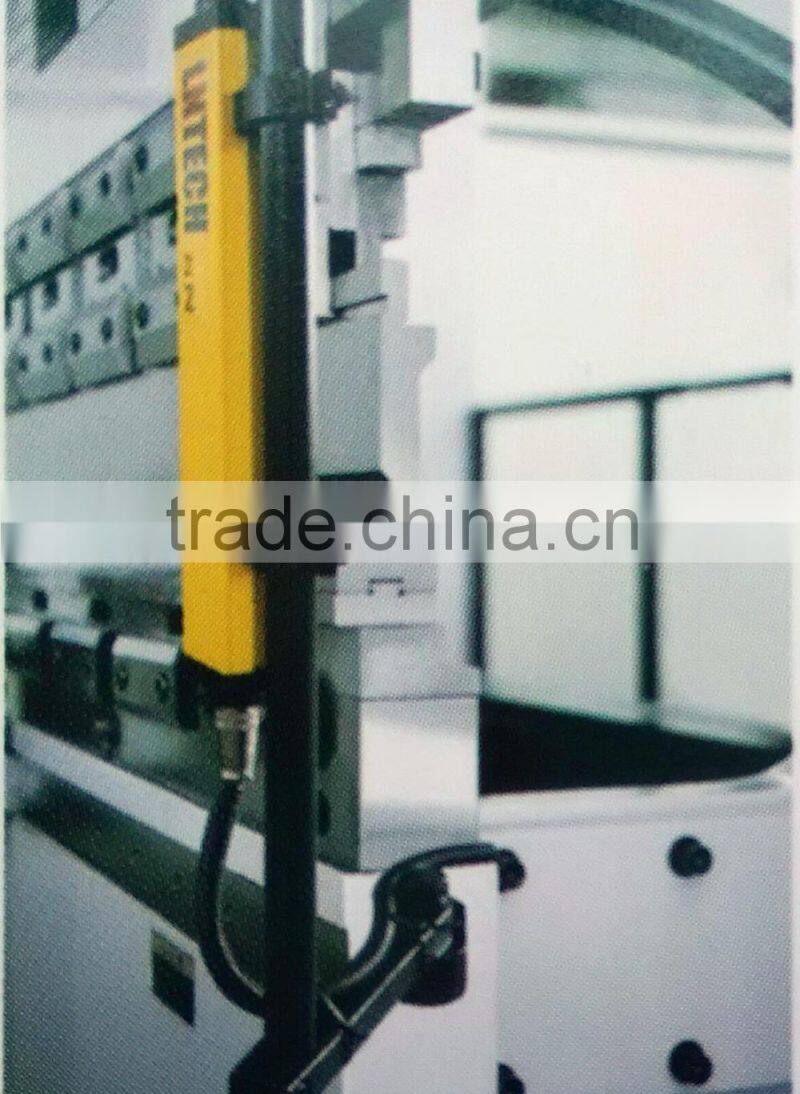

  Light curtains protection (optional)

2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake

Packaging & Shipping



Packing: wooden cases or as per customer' s  requirement

Delivery Detail: usually within 30 days (according to the quantity)

2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake

Our Services



  • Our Mission

  • With the high quality of raw material, the advanced equipments,the first class technical personnel,the strict technical monitor and risk control.



  • Core Values -- Integrity      Loyalty       Respect         Flexibility

2-WC67K Series Tandem Hydraulic CNC press brake

Company Information



 Our Company is an enterprise that set technology, design, manufacture, sale and service as a whole. For

the past years, we committed ourselves to the development and manufacture of  2-WC67K Series Tandem Hydraulic CNC press brake .

With the modern plant, the superb production and processing equipments, the first class technical personnel, and the tireless efforts and research, we have already developed the  2-WC67K Series Tandem Hydraulic CNC press brake.



Our customers



2-WC67K Series Tandem Hydraulic CNC press brake

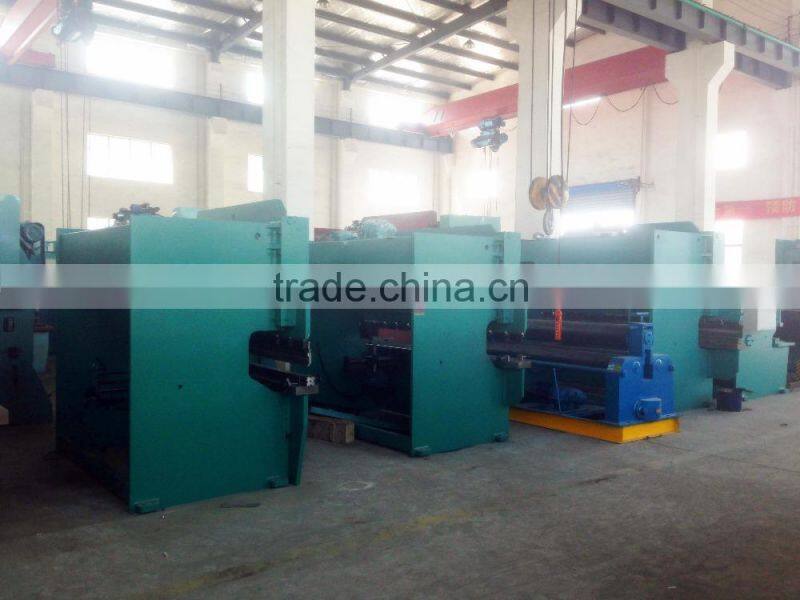

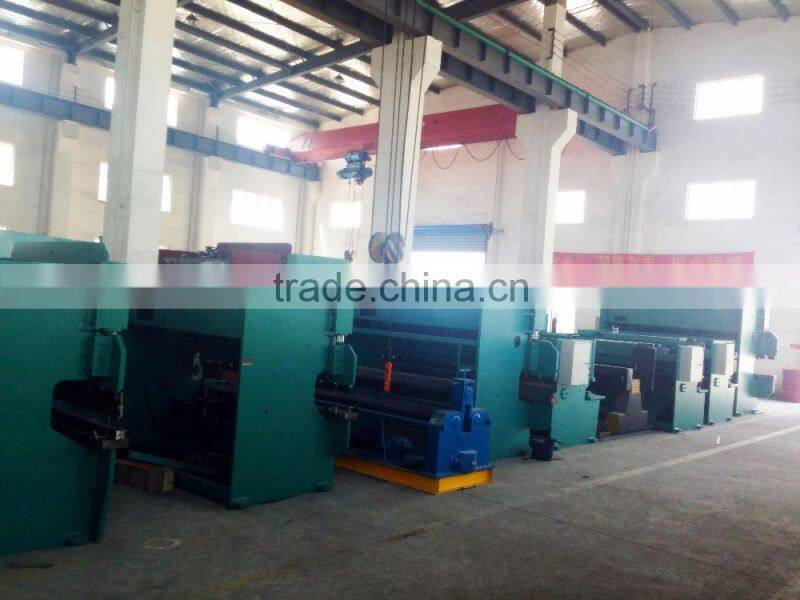

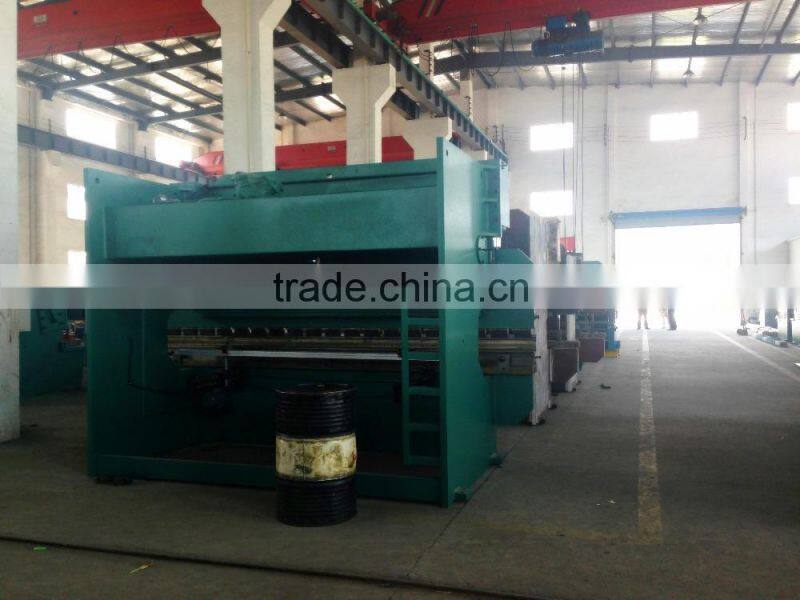

The factory

2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake2-WC67K Series Tandem Hydraulic CNC press brake
