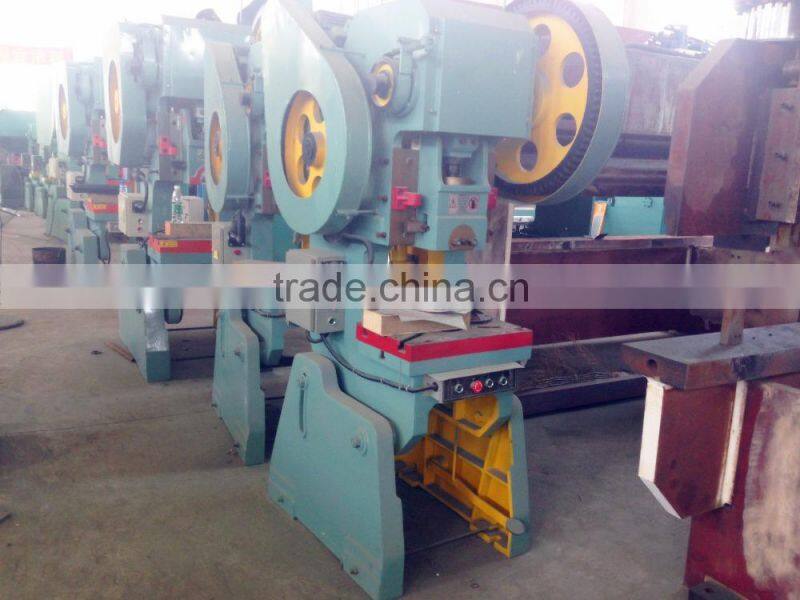

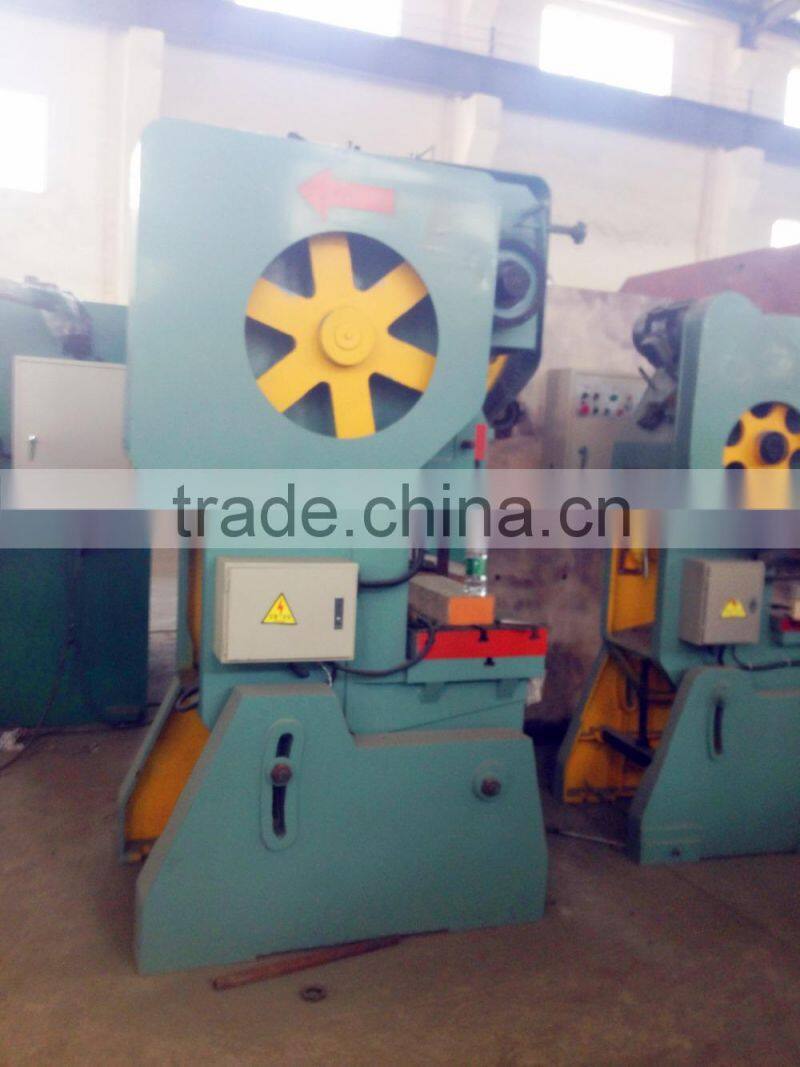

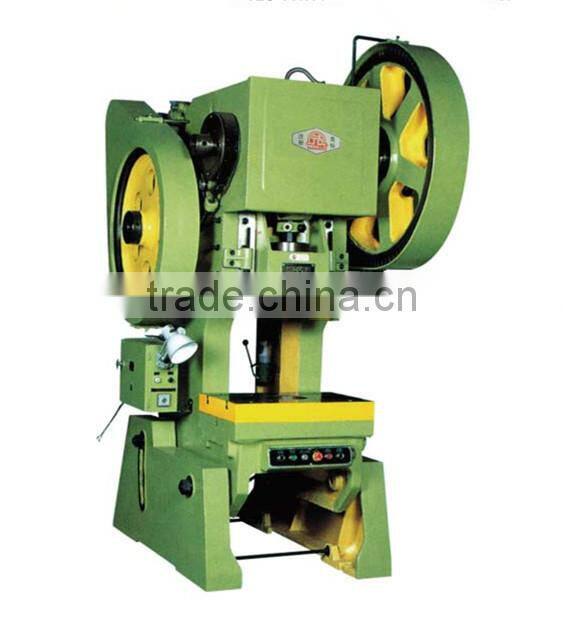

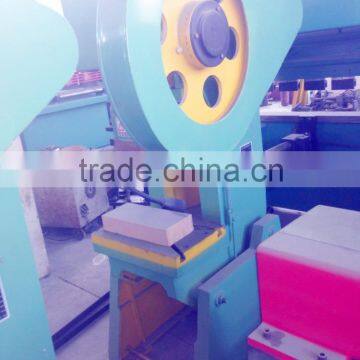

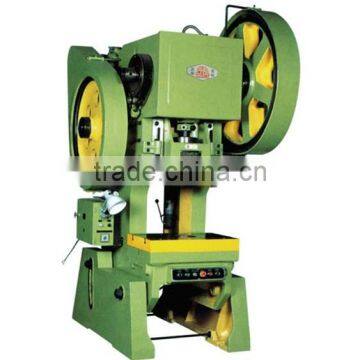

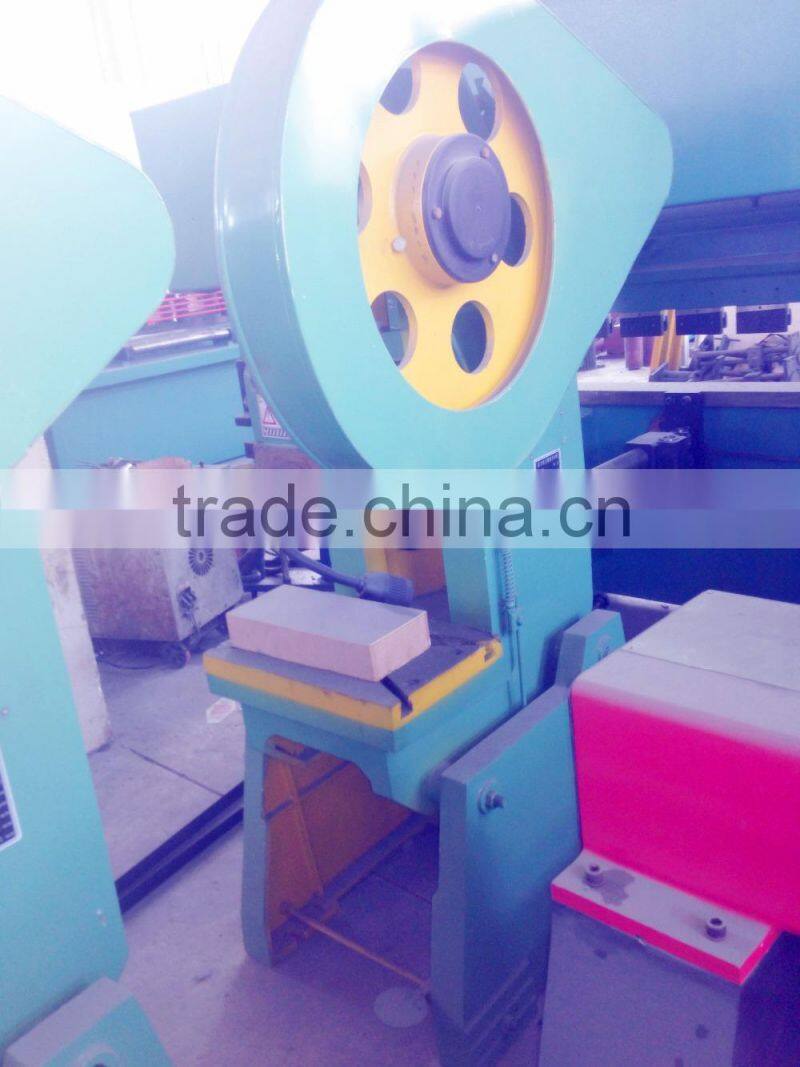

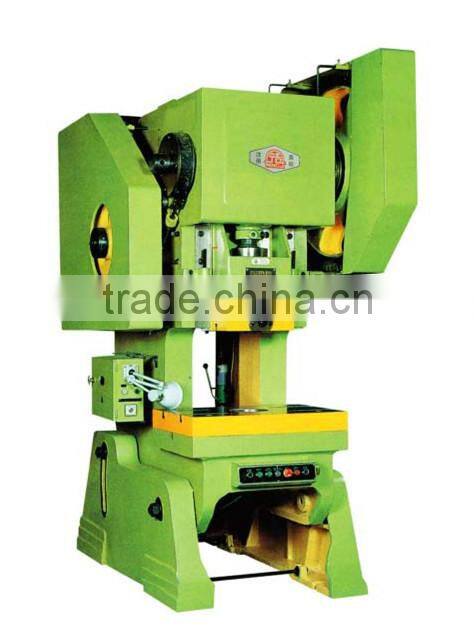

J23 Series Open Type Tilting Press Machine

J23 Series Open Type Tilting Press Machine thumbnail-1
J23 Series Open Type Tilting Press Machine thumbnail-2
J23 Series Open Type Tilting Press Machine thumbnail-3
J23 Series Open Type Tilting Press Machine thumbnail-4
J23 Series Open Type Tilting Press Machine photo-1

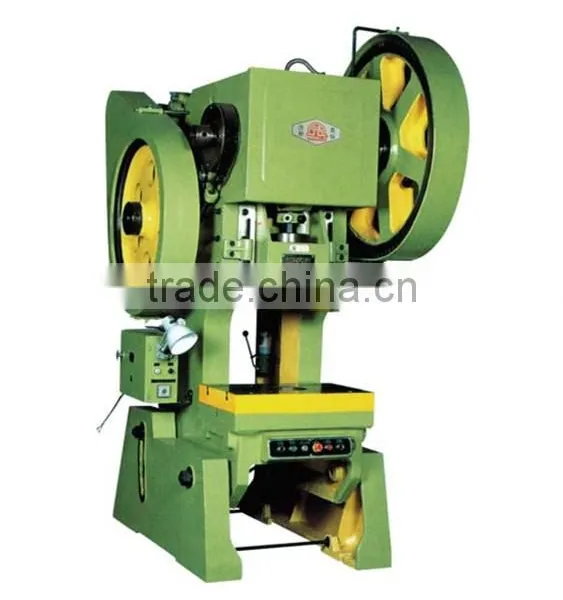

J23 Series Open Type Tilting Press Machine photo-2

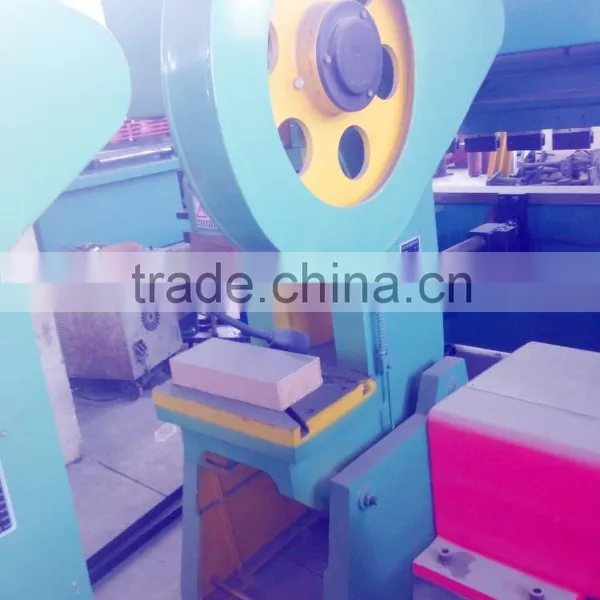

J23 Series Open Type Tilting Press Machine photo-3

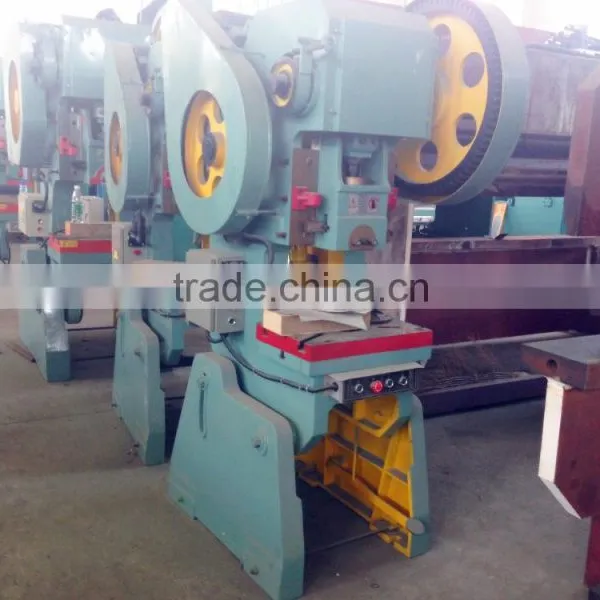

J23 Series Open Type Tilting Press Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Mechanical
Contact Supplier Request Quote Chat Now
Nanjing Prosper Business And Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
main port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Power Source Mechanical
Place of Origin Jiangsu, China
Brand Name NJP
Model Number J23
Voltage 380V
Power(W) 1.5~15KW
Weight depend on the type
Dimension(L*W*H) depend on the type
Certification ISO9001:2000
Warranty Negotiable
After-sales Service Provided Overseas service center available

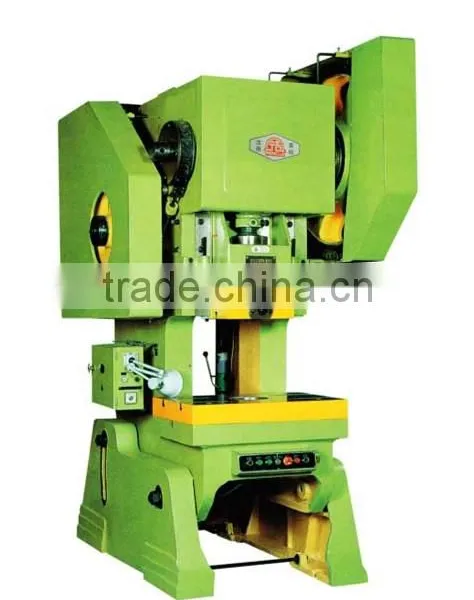

J23 Series Open Type Tilting Press Machine



Features

J23 series press is common type inclinable press,which has the advantages of simple structure,

convenient operation,reliable performance,J23-25A,JG23-35A,JG23-40A,JC23-63A,

JC23-80A using rigid turn key type clutch,convenient repair.

The models with the letters "A" are all safe press,are equipped with emergency braking device,can make the slide stop in the range of 0-135 degrees,and configure a photoelectric protector.

J23-100B,J23-125 cast iron body,the longitudinal,the eccentric sleeve structure from adjustable,pneumatic friction clutch,steady work,the impact is small,can make the slide stop at any position.



Technical parameters

Item Unit J23-16 J23-20A J23-25 JC23-25 JB23-35B
Nominal Force KN 160  200  250  250  350
Slide Stroke mm 70  90  90  90  100
Number of Stoke Times/min 120  90  100  55  53
Max Closed Height mm  220  250  250  250  205
Closed Height Ajustment mm 60  70  70  70  100
Throat Depth mm  160  175  190  190  205

Column Distance

 mm  220  240  250  260  290
Tilt Angle  °  30  30  30  30  30
Table Size Left and Right mm   450  500  560  560  610
Front and Back mm  300  330  360  360  380
Slide Bottom Size Left and Right mm  200  220  250  250  260
Front and Back mm 180  200  210  210  215
Shouk Dimention Diameter mm  40  40  40  40  40
Depth mm  60  60  60  60  60
Motor Power Kw 1.5  2.2  2.2  2.2  3
Item Unit JG23-35B JG23-40 JC23-63A JC23-80 JD21-100 JB21-160
Nominal Force KN 350 400  630  800  1000  1600
Slide Stroke mm 100  100  120  120  130  160
Number of Stoke Times/min 53  55  50  50  45  50
Max Closed Height mm  220  300  360  360  400  450
Closed Height Ajustment mm 100  80  90  90  100  120
Throat Depth mm  205  240  260  260  320  380

Column Distance

 mm  290  300  350  400  420  440
Tilt Angle  °  30  30  25  25  0  0
Table Size Left and Right mm   610  700  710  710  900  1120
Front and Back mm  380  460  480  480  600 710
Slide Bottom Size Left and Right mm  255  320  320  320  390  510
Front and Back mm 210  270  280  280  340  370
Shouk Dimention Diameter mm  40  50  50  50  50  80
Depth mm  60  70  80  80  85  80
Motor Power Kw 3 4  5.5  7.5  11  15
J23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press Machine
Packaging & Shipping



Packing: wooden cases or as per customer' s  requirement

Delivery Detail: usually within 30 days (according to the quantity)J23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press Machine

Our Services



  • Our Mission

  • With the high quality of raw material, the advanced equipments,the first class technical personnel,the strict technical monitor and risk control.



  • Core Values -- Integrity      Loyalty       Respect         Flexibility





Company Information



Our Company is an enterprise that set technology, design, manufacture, sale and service as a whole. For

the past years, we committed ourselves to the development and manufacture of   J23 Series Open Type Tilting Press Machine .

With the modern plant, the superb production and processing equipments, the first class technical personnel, and the tireless efforts and research, we have already developed the J23 Series Open Type Tilting Press Machine .



Our customers

J23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press Machine

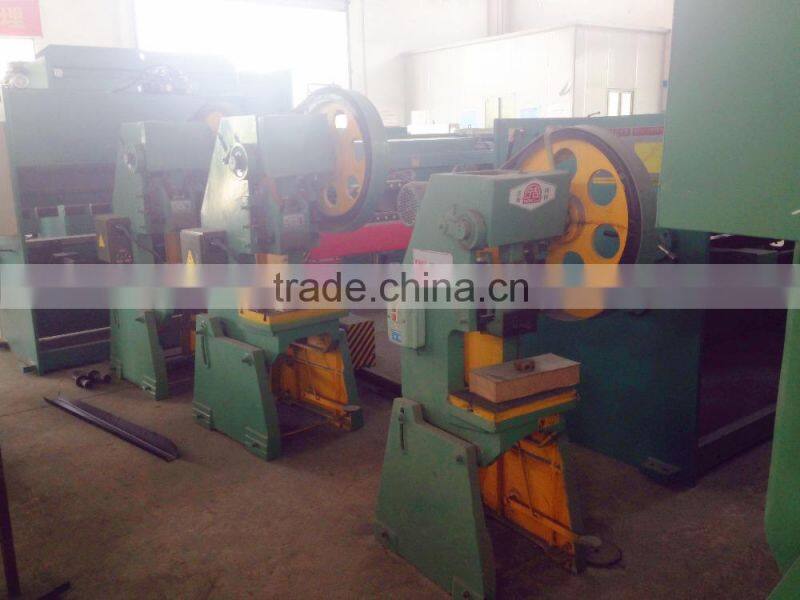

The FactoryJ23 Series Open Type Tilting Press MachineJ23 Series Open Type Tilting Press Machine
