High Strength & Intensity Life Boat Crane&davit Load Test Weight Water Bag

High Strength & Intensity Life Boat Crane&davit Load Test Weight Water Bag thumbnail-1
High Strength & Intensity Life Boat Crane&davit Load Test Weight Water Bag photo-1
US$ 1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Gathering
Model Number:
XH-Load test water bag
Usage:
Bending Testing Machine
Contact Supplier Request Quote Chat Now
Chongqing Gathering Marine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Gathering
Model Number XH-Load test water bag
Usage Bending Testing Machine



High Strength & Intensity life boat crane&davit load test weight water bag





Load testing water bag are made from heavy duty fabrics,PVC,PU,rubber, equipped with all necessary fill/drain hose and valves,Master Links, load shackles and riggings, lifting belts, and incorporating with some innovative design. Water pumps, water meters, manifolds, load cell and its shackles, rigging hardware, lifting beams also can be supplied upon request.



Type

Full load/kg

Volum/m3

Full load height

Max Dia.

Weight

Package diameter

XHB0.25

250

0.25

1.2

0.8

8

0.5

XHB0.5

500

0.5

1.5

1

10

0.5

XHB1

1000

1

1.8

1.2

19

0.7

XHB2

2000

2

2.3

1.5

22

0.7

XHB3

3000

3

2.7

1.8

28

0.7

XHB4

4000

4

2.9

1.9

52

1.1

XHB5

5000

5

3.3

2.3

67

1.1

XHB6

6000

6

3.4

2.4

84

1.1

XHB8

8000

8

3.6

2.54

104

1.1

XHB10

10000

10

3.9

2.65

108

1.1

XHB13

13000

13

4.2

2.9

128

1.1

XHB15

15000

15

4.35

3

130

1.1

XHB20

20000

20

6

3.5

156

1.5

XHB25

25000

25

6.1

3.9

190

1.5

XHB30

30000

30

6.5

4.1

220

1.5

XHB35

35000

35

6.8

4.3

300

2.1

XHB40

40000

40

7.4

4.5

390

2.6

XHB45

45000

45

7.5

4.7

290

1.5

XHB50

50000

50

7.7

5.1

450

2.6

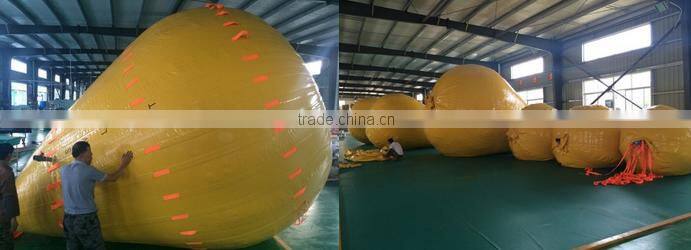

Features and Advantages of Load Test Water Bags
-  Made from heavy duty UV resistance PVC coated fabrics
-  Heavy duty webbing harness terminates with single steel lifting ring
-  Easy to handle and operate to enhance the work efficiency

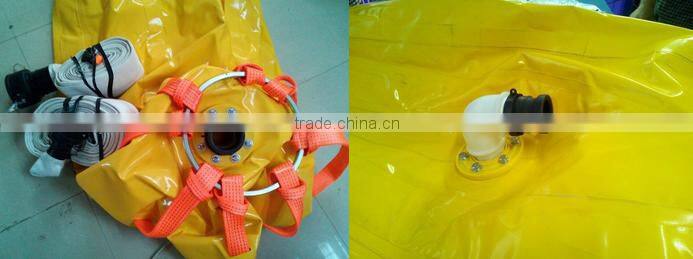

-  Complete with all accessories and fill/drain valves, quick couplings
-  6:1 safety factor verified for type test
-  Multi size are available for unlimited variants of test weight
-  Delivery ready for use
-  CCS " Certificate of Type Approval" and BV third Party Certificate

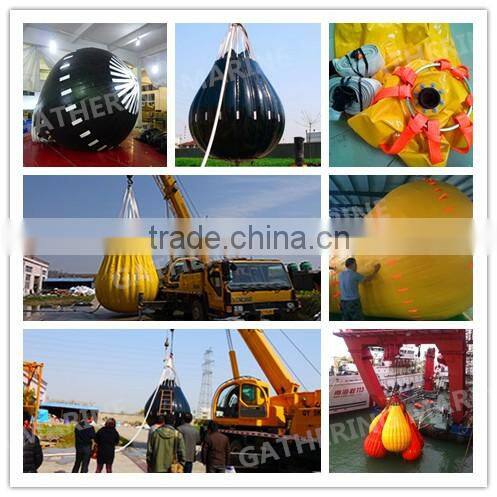

-  All water bags are Manufactured in accordance with ISO 9001 Quality Management Standard are used for the proof load testing for the crane, davits, derricks, hoist and other lifting equipment.

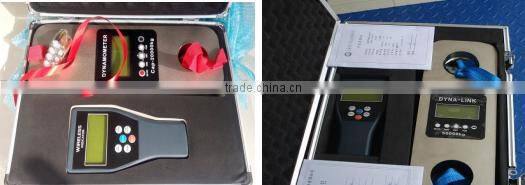

Related product - Wireless loadcell



a. Under Hook Crane weighing

b. Wire Rope and cable tension monitoring

c. Heavy lift and rigging

d. Aircraft manufacturing and repair

e. Structural load testing and certification

f. Crane and hoist calibration and proof load testing

g. Water weight testing and calibration

h. Shipping&receiving weighing

i. Manufacturing and heavy construction

j. Event staging and rigging

k. Offshore mooring anchor setting

l. Bollard pull testing and certification

m. Escalator comb impact testing

Model

Cap.

Div.

A

B

C

D

φ

H

Material

(mm)

XH-WL-01

1t

0.5kg

245

112

37

190

43

335

Aluminum

XH-WL-02

2t

1kg

245

116

37

190

43

335

Aluminum

XH-WL-03

3t

1kg

260

123

37

195

51

365

Aluminum

XH-WL-05

5t

2kg

285

123

57

210

58

405

Aluminum

XH-WL-10

10t

5kg

320

120

57

230

92

535

Alloy Steel

XH-WL-20

20t

10kg

420

128

74

260

127

660

Alloy Steel

XH-WL-30

30

10kg

420

138

82

280

146

740

Alloy Steel

XH-WL-50

50t

20kg

465

150

104

305

184

930

Alloy Steel

XH-WL-100

100t

50kg

570

190

132

366

229

1230

Alloy Steel

XH-WL-200

200t

100kg

725

265

183

440

280

1380

Alloy Steel



Thanks for your attention!

Any interest for Load testing water bag,please contact me with the capacity you need,quotation will be sent for reference then.
