Digital Ultraviolet Printing Equipment

Digital Ultraviolet Printing Equipment thumbnail-1
Digital Ultraviolet Printing Equipment photo-1
US$ 40,000 - 60,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Docan Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Shanghai, China
Brand Name DOCAN
Model Number UV M 8
Usage Card Printer, Other, Card Printer, uv flatbed printer
Automatic Grade Automatic
Voltage 220 V
Gross Power 8KW
Dimensions(L*W*H) 4.63*2.48*1.47 m
Weight 1870 KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

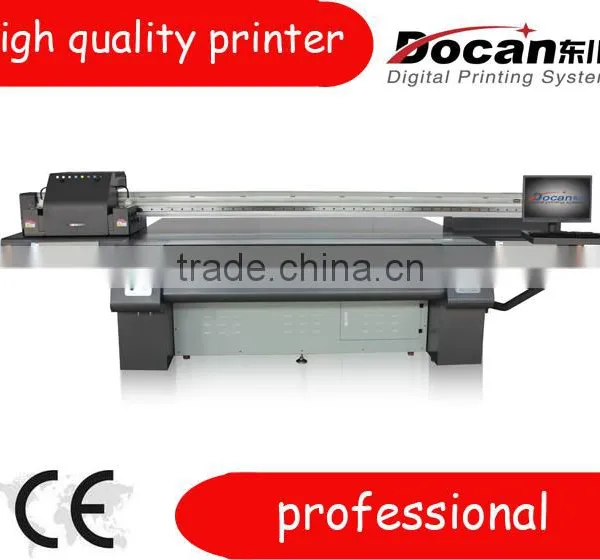

UV DOCAN M 8 WITH 2.5m x1.8m FLATBED
UV FLATBED PRINTER
FEATURES:
Effective printing table 2.5m x 1.8m

Digital Ultraviolet Printing EquipmentDigital Ultraviolet Printing EquipmentDigital Ultraviolet Printing EquipmentSpecification
1) UV Inkjet Flatbed Printer

2) CE Certificate
3) 360*360dpi-1440*1440dpi
4) Konica Minolta print head
5) C,M,Y,K or C,M,Y,K,LC,LM + White




Perfect quality along with competitive price
Since we are a few manufacturers of UV flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.





Higher speed plus higher resolution
Konica printhead with 512-14PL/42PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi.





Ideal Transmission System
USB optical transmission, interference, to avoid printing garbage.





More application
Application areas: Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, etc.


Printed materials: Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, and so on.





Mian Technical Data

General

Info

Model

UV M 8

Print technology

Drop-on-demand Piezo Electric

Working platform

Vacuum or up-down wheels platform

Printhead type

JAPAN KM-512-14PL / KM-512-42PL

Printhead No.

4/5/6/7/8/10/12/15/16 pcs

Printhead controls

Print head temperature & voltage are adjustable by software

Printing size

2.44m * 1.8m

Ink type

UV curing ink

Ink Reservoir

Refillable on the fly while printing/1000ml

Loating mode

Resto/Servo

RIP software

Photoprint 10

Drying system

UV lamp

File format

TIFF, JPEG, Postscript 3, EPS and PDF

Resolution

360 dpi x 360 dpi      360 dpi x 720 dpi

720 dpi x 360 dpi      720 dpi x 720 dpi

720 dpi x 1440 dpi     1440 dpi x 1440 dpi

Printing Speed

In draft mode up than 28 sq.m ( 4 heads )

In standard mode up than 18 sq.m ( 4 heads )

In high resolution mode up than 11 sq.m ( 4 heads )

Ink

Ink type

UV curing ink

Printing colors

C, M, Y, K, LC, LM, W (4,5,6,7, double 4 colors)

Printing Assistant System

Printing media

(max thickness 55mm )

Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.

Heating system

Standard (Front heater, Rear heater, Fan)

Color retains

Outdoor 2 years, indoor 7 years

Color management

ICC based color, adjustment curves, density adjustment

Printer profile

Power supply

AC220V-240V  50/60HZ (10%)  16A

Working conditions

Temperature 20-28 degrees, Humidity 40% - 60%

Dimensions

4.63*2.48*1.47 m

Weight

1870 kgs

Packing

Outside packing : Packed by solid wooden carton

Inner packing: sealed with anti-rain & rust plastic bubble film
