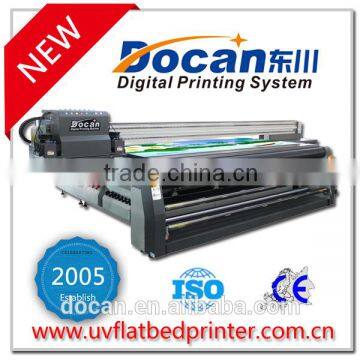

Docan FRT3225 uv Hybrid Printer / uv Hybrid Printing Machine Quality Choice

Technical Specification of Docan FRT3225

Model

FRT3225 UV Hybrid Printer

Printing Size

3.2m*2.5m / 3.2m*roll

Working Platform

Vacuum sucking and automatic height adjustment system

Printhead

KM512 / KM1024 / Ricoh GEN5 ( drop-on-demand piezo electric )

Printhead Control

Printhead temperature and voltage are adjustable in software

Drying System

U.K. imported UV lamp ( curing ink instantly )

Ink Type

UV environmental protection ink

Ink Consumption

1 m2 printing consumes 10 ml ink, costing about 1 $

Printing Color

C M Y K Lc Lm White Varnish

RIP Software

PhotoPrint / Onyx / Caldera

Color Management

ICC based color, curves adjustment, density adjustment

Picture Format

TIFF, JPEG, EPS, PDF, Postscript3

Resolution

720 dpi x 720 dpi ( 4 Pass )

720 dpi x 1080 dpi ( 6 Pass )

720 dpi x 1440 dpi ( 8 Pass )

Printing Speed

4 Pass up to 40 sq.m/hr

6 Pass up to 30 sq.m/hr

8 Pass up to 20 sq.m/hr

Printing Material

Glass, wood, acrylic, MDF, PVC, foam board, metal, etc.

Shelf Life

Outdoor 3-5 years, indoor 8-10 years

Warranty

One-year limited hardware warranty

Power Supply

50/60Hz, single phase AC 220V, >30 Amp

Operation Environment

Dust-free room, Temperature: 20oC-28oC, Humidity: 40%-60%

Dimension

5.31m*3.75m*1.6m

Weight

3560kgs

Package

Inner packed by anti-rain & anti-rust plastic bubble film;

outer packed by solid wooden crate.

Installation

We will send technician to customer workshop to install machine and

conduct training
