High Resolution Full Color Digital Printing Industrial Inkjet Printer

FOB Price

US$ 40,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	Docan
Model Number	M10	Usage	Card Printer
Automatic Grade	Automatic	Voltage	220V
Gross Power	6KW	Dimensions(LWH)	4.83.931.38M
Weight	2160KG	Certification	CE; ISO9001:2008
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

high resolution full color digital printing industrial inkjet printer

Specification
1) UV four colors Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi

4) C,M,Y,K or C,M,Y,K,LC,LM + White colors + varnish
5) CE Certificate, ISO9001:2008

High Quality Along With Competitive Price
Since we are a few manufacturers of UV flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.

Ideal Transmission System

USB optical transmission, interference, to avoid printing garbage.

More Application
Application areas includs:Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, and so on.

Printed materials could be:Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.

Technical Specifications

General Information
Model	DOCAN M10
Catagory	UV Flatbed Printer
Printing Size	2.05 x 3.2m
Printing
Print Technology	drop-on-demand piezo electric inkjet

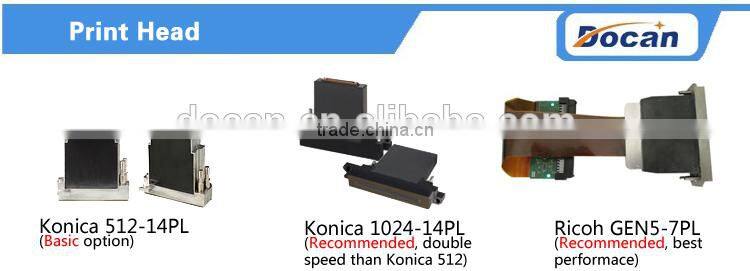

Printhead	KM-512MH-14PL/KM-1024MHB-14PL/Ricoh Gen5 7PL
Printhead Control	Printhead temperature and voltage are adjustable in software
Ink Type	UV curable Ink
Ink Reservoir	Refillable on the fly while printing/2000ml
Rip Software	Photo Print/ONYX/Caldera
Color Management	ICC based color, curves adjustment, density adjustment
File Format	Tiff, Jpeg, Pstscript, eps, pdf
Media Thickness	1-100mm
Printhead QTY	KM-512MH-14PL	KM-1024MHB-14PL	Ricoh Gen5
	4-8pcs	4-16pcs	4pcs/7pcs
Resolution	KM-512MH-14PL/KM-1024MHB-14PL		Ricoh Gen5
	720 x 720 dpi		600 x 600 dpi
	720 x 1080 dpi		600 x 900 dpi
	720 x 1440 dpi
Printing Speed	KM-1024MHB-14PL		Ricoh Gen5
	4 pass 28 sqm per hour		4 pass 40 sqm per hour
	6 pass 19 sqm per hour		6 pass 28 sqm per hour
	8 pass 15 sqm per hour

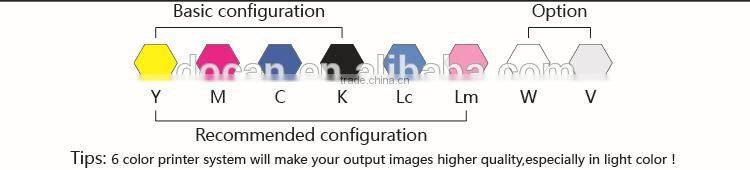

Print Colors	4 colors (CMYK), 6 colors (Lc Lm CMYK), White/Varnish optional
Drying System	UV Lamp with three power levels
Medias
	Rigid materials: glass, acrylic, PVC foam board, KT board, Wood, WPC, Metal panels,ceramic tiles, MDF, etc.
Outdoor Life of finished printing
	3 years (use Docan ink)
Dimensions and Weight
Dimensions	4.8 x 3.93 x 1.38m
Weight	2160kg
Operation
Power Supply	50/60Hz 220V(10%)>30A
Operation Environment	20°C to 28°C
Humidity	40% to 60%
Warranty
	one year

The above technical parameters are subject to change without prior notice.
