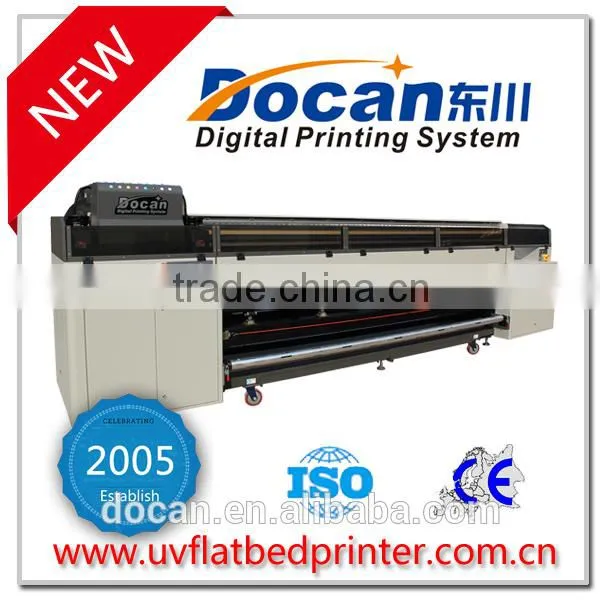

Docan R3300 uv roll to roll printer / uv roll to roll printing machine
Welcome to visit Docan UV printer.
Company Profile
Shanghai Docan Technologies Co., Ltd is one professional uv printer manufacturer in China, we are only producing uv printer, everyday we put all energy on uv printer since 2005. We would like to provide good quality machine with competitive price to our agents and clients all over the world.
Application Filed
Docan UV flatbed printer can print various flat material, such as glass, wood, ceramic, MDF, acrylic, metal, PVC, foam board, KT board, corrugated board, etc.
Machine Technology
Docan printing machine is adopting UV ink, which is envronmetally friendly and harmless to human beings. UV ink contains UV triggering molecule, by UV light curing it will be immediately dry. Thus pictures printed by UV printer is water-proof, and wear-resistant, can be kept outdoor for long time, at least 3 years.
Technical Specification of Docan R3300 | |
Model |
R3300 UV Roll to Roll Printer |
Printing Size |
3.2m*roll |
Working Platform |
Vacuum sucking and automatic height adjustment system |
Printhead |
KM512 / KM1024 / Ricoh GEN5 ( drop-on-demand piezo electric ) |
Printhead Control |
Printhead temperature and voltage are adjustable in software |
Drying System |
U.K. imported UV lamp ( curing ink instantly ) |
Ink Type |
UV environmental protection ink |
Ink Consumption |
1 m2 printing consumes 10 ml ink, costing about 1 $ |
Printing Color |
C M Y K Lc Lm White Varnish |
RIP Software |
PhotoPrint / Onyx / Caldera |
Color Management |
ICC based color, curves adjustment, density adjustment |
Picture Format |
TIFF, JPEG, EPS, PDF, Postscript3 |
Resolution |
720 dpi x 720 dpi ( 4 Pass ) |
720 dpi x 1080 dpi ( 6 Pass ) | |
720 dpi x 1440 dpi ( 8 Pass ) | |
Printing Speed |
4 Pass up to 40 sq.m/hr |
6 Pass up to 30 sq.m/hr | |
8 Pass up to 20 sq.m/hr | |
Printing Material |
Glass, wood, acrylic, MDF, PVC, foam board, metal, etc. |
Shelf Life |
Outdoor 3-5 years, indoor 8-10 years |
Warranty |
One-year limited hardware warranty |
Power Supply |
50/60Hz, single phase AC 220V, >30 Amp |
Operation Environment |
Dust-free room, Temperature: 20oC-28oC, Humidity: 40%-60% |
Dimension |
5.6m*1.5m*1.72m |
Weight |
3895kgs |
Package |
Inner packed by anti-rain & anti-rust plastic bubble film; outer packed by solid wooden crate. |
Installation |
We will send technician to customer workshop to install machine and conduct training |
