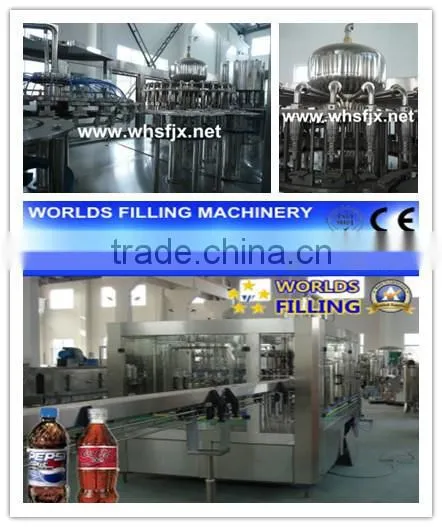

18-18-6 Carbonated Water Filling Machine
1.This machine is mainly used in the beverage filling operations.
2.The three functions of bottle washing,filling and capping are composed in one body of the machine.
3.The whole process is automatic.
4.The machine is used to fill carbonated water in bottles made of polyester and plastics.
5.The machine is conveniently turned to adust the machine to fill various types of bottles.
6.The filling operation is faster and more stable due to the miro-negative pressure filling operation of the new type is adopted .
7.The output and benefit of the machine is higher than the machines of the same specifications.
8.The advanced OMRON programmed controller (PLC) is adapted to control the machine runs automatically ,air coneyor system is adopted to in bottle entry section and belt coneyor system is adoped to bottle exit section,which can adust speed and coordniated with the transducer of the main machine to make the output of moving bottle forward steadily and reliably .
9.It is convenient to operate machine with higher autimation due to every parts of the machine which is inspected to run with photo electrical detector .
10.The machine is ideal-preferred equipment for beverage makers.
Model: |
CGFD18-18-6 |
CGFD24-24-8 |
CGFD32-32-12 |
CGFD40-40-12 |
||
Capacity :500ml |
6000 |
8000 |
12000 |
15000 |
||
Bottle shape: |
roud or square |
|||||
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
|||||
Cap: |
PE srew cap |
|||||
Filling precision: |
≤±5mm |
|||||
Filling pressure:(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
||
Rinsing pressure:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
||
Filling volume :(L) |
3.5 |
4 |
6 |
8 |
||
Overall size:(mm) |
2450*1800 |
2780*2200 |
3600*2650 |
3800*2950 |
||
Weight: (kg) |
3500 |
4500 |
5500 |
6500 |
||
