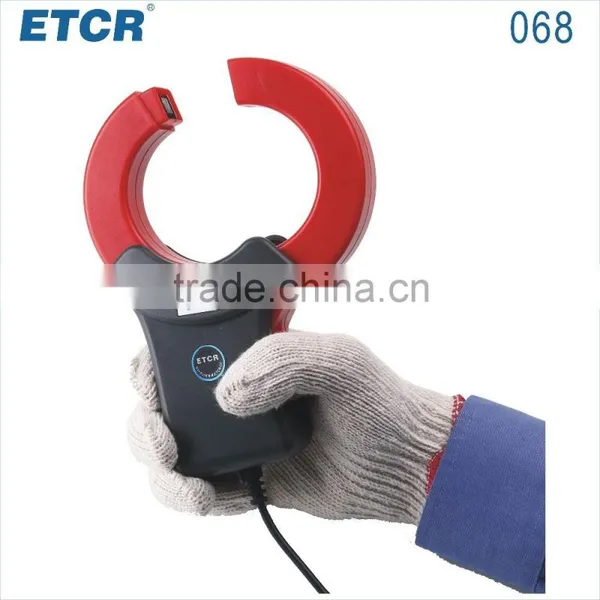

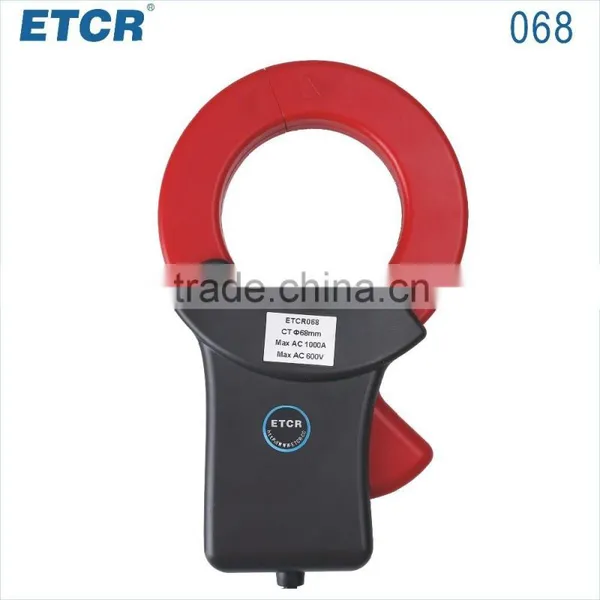

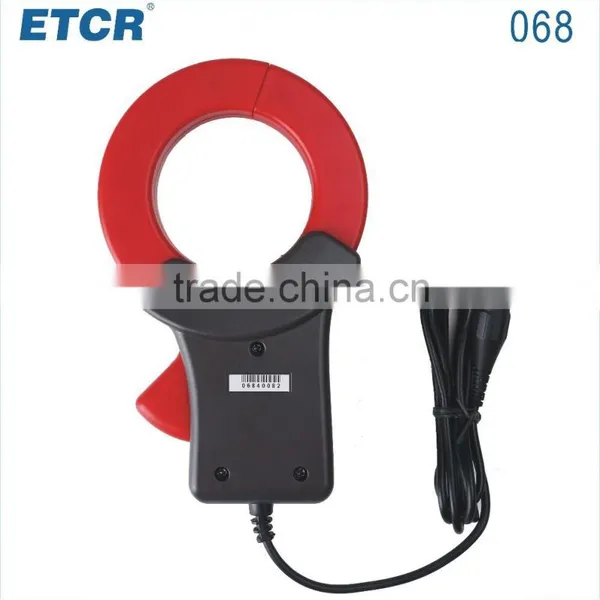

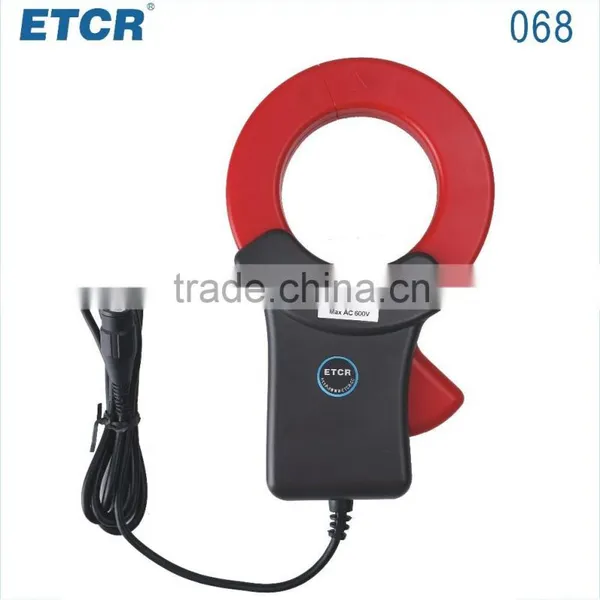

ETCR068 Clamp Leakage current sensor

Specifications

1.Range:0.00mA~1000A (AC)
2.Resolution: 0.01mA
3.Current mutual Inductance output, Direct Coil tap

ETCR068 Clamp Leakage current sensor

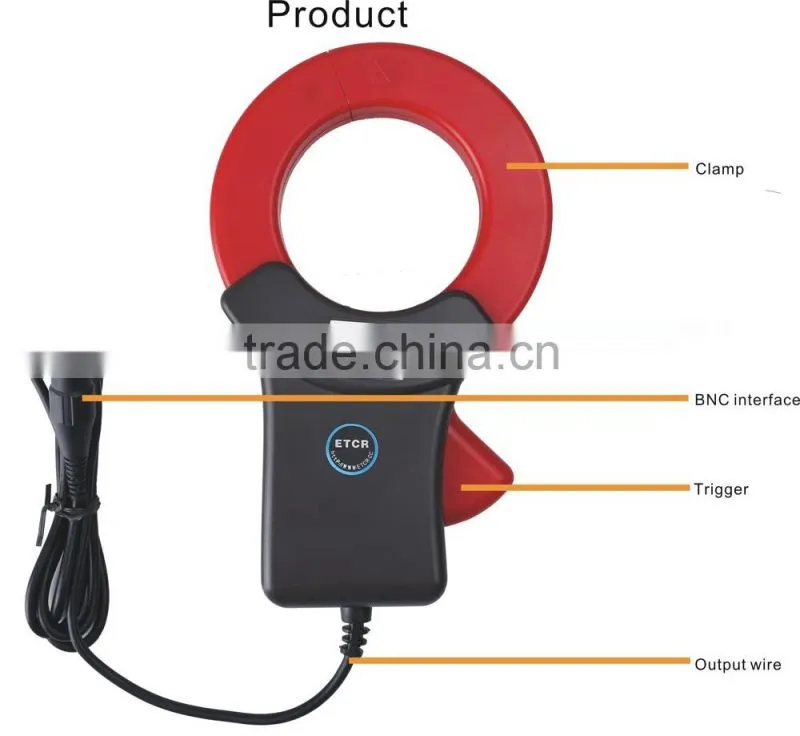

Product Information

Product Features

ETCR068 High Accuracy Clamp AC Leakage Sensor is used for measurement of high accuracy AC current, leakage current, high order harmonic current, phase, power energy, power, power factor. Adopt the latest CT technology. It is portable, large clamp design, no need to disconnect the measured circuits, non-contact, safe and fast. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, harmonic analyzer, electric power quality analyzer, high precision digital multi-meter, etc. Widely applied in electricity, communication, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises.



ETCR068 High Accuracy Clamp AC Leakage Sensor’s clamp core is made of special alloy, adopt the double magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement.



Model Difference

Model	Range	Turn ratio	Frequency	Secondary output/load	Accuracy class	Size of clamp (mm)	Dimension (mm)
ETCR068	AC 1000A	1:2400	10Hz~100kHz	0~100mA≤3Kω; 0~10A≤30Ω; 0~1000A≤0.3Ω	±2%FS	φ68	185×115×43
ETCR068B	AC 1000A	1:1000	10Hz~100kHz
ETCR068C	AC 2000A	1:2400	45Hz~75Hz	0~200mA≤2kΩ; 0~20A≤20Ω; 0~2000A≤0.2Ω
ETCR068AD	DC 2000A AC 1000A	Hall effect	45Hz~400Hz DC~100KHz	1mV/A(DC0~2V) 1mV/A(AC 0~1V)	±2%FS	φ68	224×115×43

Note: Can customize according to customer’s requirement

Curve of ratio error and phase error(23℃±3℃)



Technical Specifications

Function	Measurement of AC current, leakage current, high order harmonic current, phase, power energy, power, power factor
Test mode	Clamp CT
Clamp Size	φ68mm
Range	0.00mA~1000A
Resolution	0.01mA
Accuracy	±2.0%FS(50Hz/60Hz; 23℃±2℃, below 70%RH, keep the wire be in the center of clamp)
Coils Turn	Standard 2400:1(Customize is allowed)
Phase Error	≤3℃(50Hz/60Hz; 23℃±2℃)
Reference Load	RL: 0~100mA≤3Kohm; 0-10A≤30ohm; 0-1000A≤0.3ohm;
Output Mode	Current induction output
Output Interface	2 thread or chose standard probe of multi-meter
Output Wire Length	2m
Electric Field Interference	About 10mA when the external electric field 100A, 10mm nearby
Measured Wire Position	Approximately in the geometric center of the clamp
Current Frequency	45H-60Hz(when measuring big current)
Frequency Feature	10Hz~100kHz
Voltage of circuit	Below AC 600V

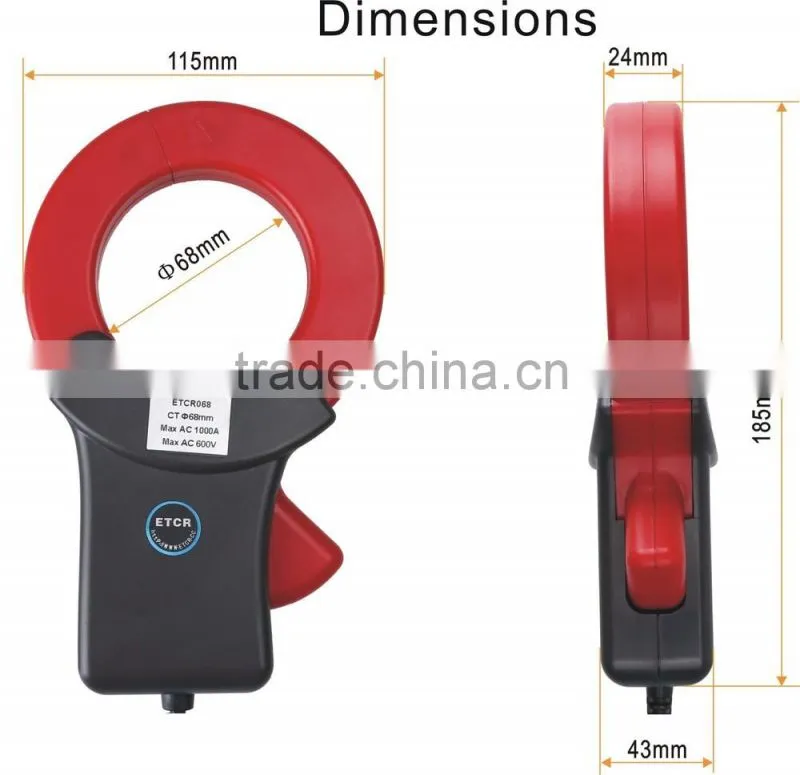

Dimension	185mmx115mmx43mm
Weight	530g
Working Environment	-20℃ ~ 50℃; below 80%rh
Storage Environment	-10℃ ~60℃; below 70%rh
Insulation Strength	AC 3700V/rms.(between coil and shell)
Safety Rules	IEC1010-1,IEC1010-2-032,Pollution degree:2 CATⅢ(600V)



Packing

Packing Case Size(L×W×H):247×145×70(mm)

Weight:0.57Kg
