Home > Electrical & Electronics > Sensor > Pressure Sensor > ETCR148 Large Caliber Digital Clamp AC Current Transducer(1:3000)(3000A)

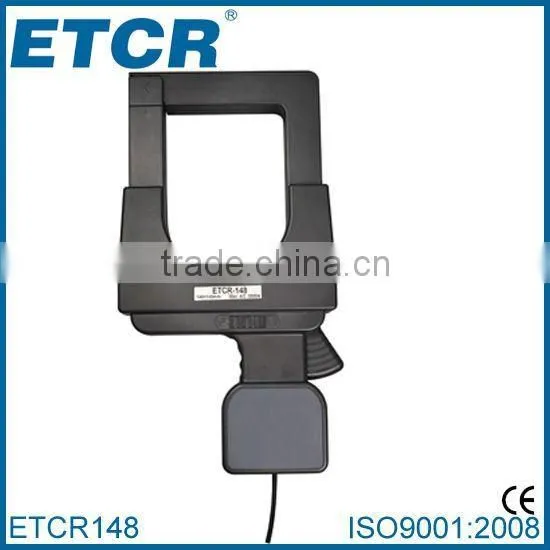

ETCR148 Large Caliber Digital Clamp AC Current Transducer(1:3000)(3000A)

Name: ETCR148 Large Caliber Digital Clamp AC Current Transducer(1:3000)(3000A)
Brand: ETCR
SKU: 111276079

ETCR148 Large Caliber Digital Clamp AC Current Transducer(1:3000)(3000A) thumbnail-1

ETCR148 Large Caliber Digital Clamp AC Current Transducer(1:3000)(3000A) photo-1

US$ 231.45 - 330.65 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ETCR

Model Number:

ETCR148

Contact Supplier Request Quote Chat Now

Guangzhou ETCR Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ETCR

Model Number ETCR148

Usage Consumption Sensor

Theory Current Sensor

Output Digital Sensor

Welcome to ETCR

Our buyers have stayed with us for 12 years

12 years of specialized meters

ISO Patent and CE certificate

OEM services available

More information, please kindly view our web site: /en/

Online store: /store/502192

1.Introduction

ETCR148 Super-large Caliber Leakage Clamp Current Sensor is well designed and manufactured for measurement of AC leakage current, leakage current, higher harmonic current, phase, frequency, power and electric energy, by adopting the latest CT technology. Its large caliber 148mm×108mm can clamp electric cable of Φ108mm, or 160mm×4mm flat cable and steel earth wires. It is portable, clamp designed, no need to disconnect the circuit, non-contact measurement, which means safer and faster. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, electric power quality analyzer, high precision multi-meter, widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

The clamp is made of special alloy, adopt the latest CT and magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement.

2.Technical Specifications

Function	Measurement of AC current, higher harmonic current, phase, electric energy, power and power factor
Test Mode	Clamp CT
Clamp Size	148mm×108mm
Measurement Range	AC 0.0mA-3000A
Resolution	AC 0.1mA
Accuracy	±2.0%FS (50Hz/60Hz; 23°C±2°C, below 70%RH, keep the measured wire be in the center of the clamp)
Coils Turn	3000: 1
Phase Error	≤3°(50Hz/60Hz; 23°C±2°C)
Reference Load	RL: 0-300mA≤3kΩ; 0-30A≤30Ω; 0-4000A≤0.3Ω
Output Mode	Current induction output
Output Interface	2 bare wires or standard multi-meter pen plug
Lead length	2m
Electric Field Interference	About 5mA when the external electric field 100A, 10mm nearby
Wire Position	Keep the measured wire be in the center of the clamp
Current Frequency	45Hz-60Hz (Frequency of the measured current)
	10Hz-100kHz
Circuit Voltage	Below 600V AC

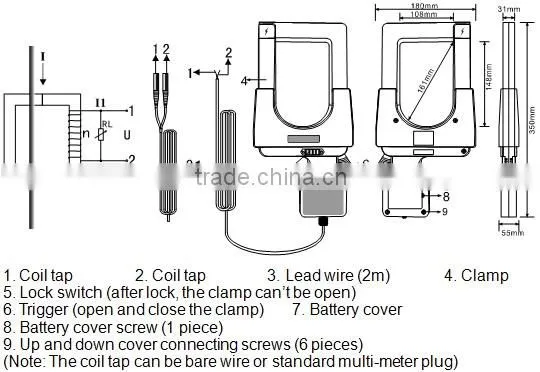

Size	Length 350mm × Width 180mm × Height 55mm
Weight	1.5kg
Working Temperature and Humidity	-20°C-50°C, below 80%rh
Storage Temperature and Humidity	-10°C-60°C, below 70%rh
Insulation strength	AC3700V/rms(between core and shell)
Safety Specifications	IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)
Accessories	Current Sensor: 1 pc
