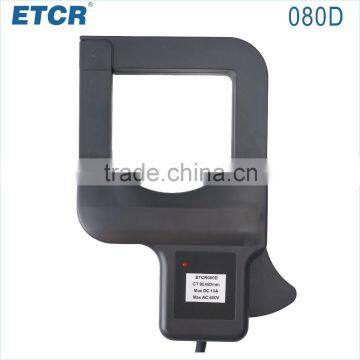

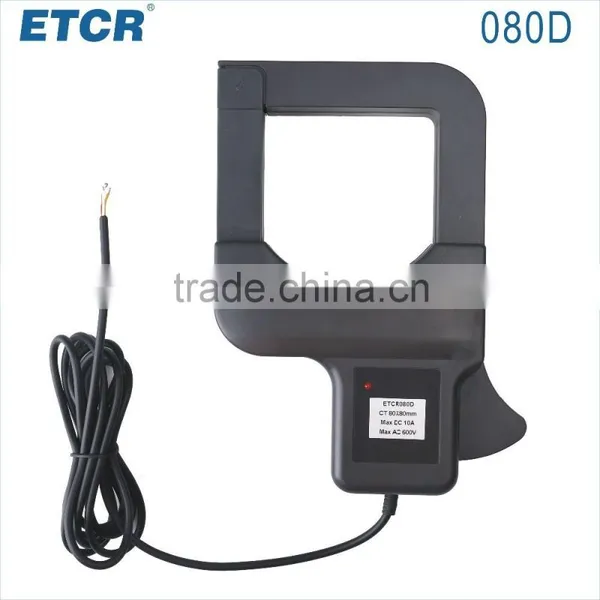

ETCR080D Large Caliber DC Clamp Current Sensor
Product Information
Product Features
1. Range: 0.0A~10A(DC)
2. Resolution: 0.1A

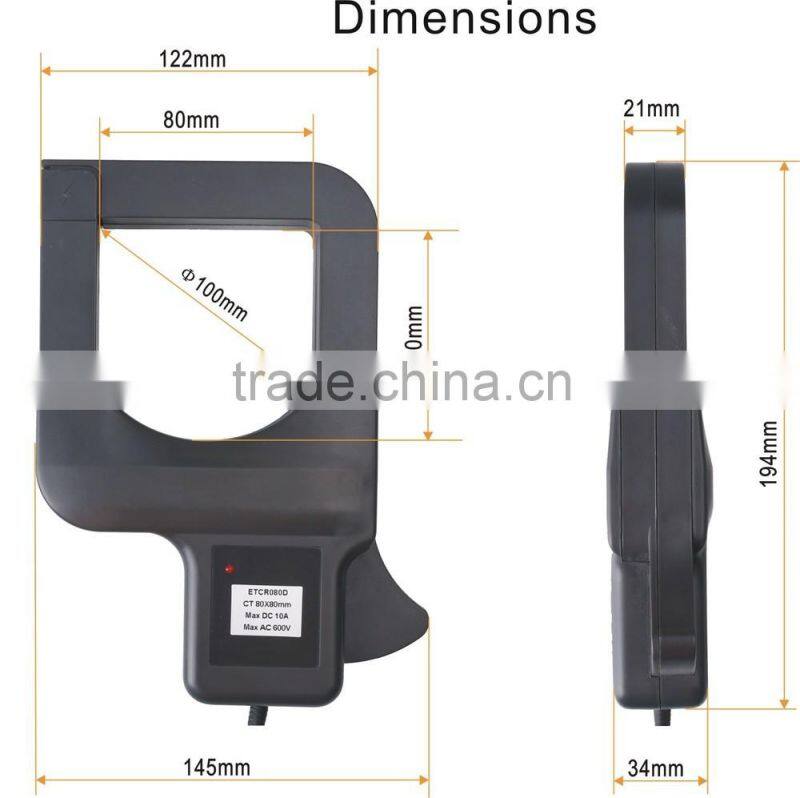

3. Clamp Dimension: 80mmX80mm
4. Current mutual inductance output, highest accuracy level 1.0, coil tap directly

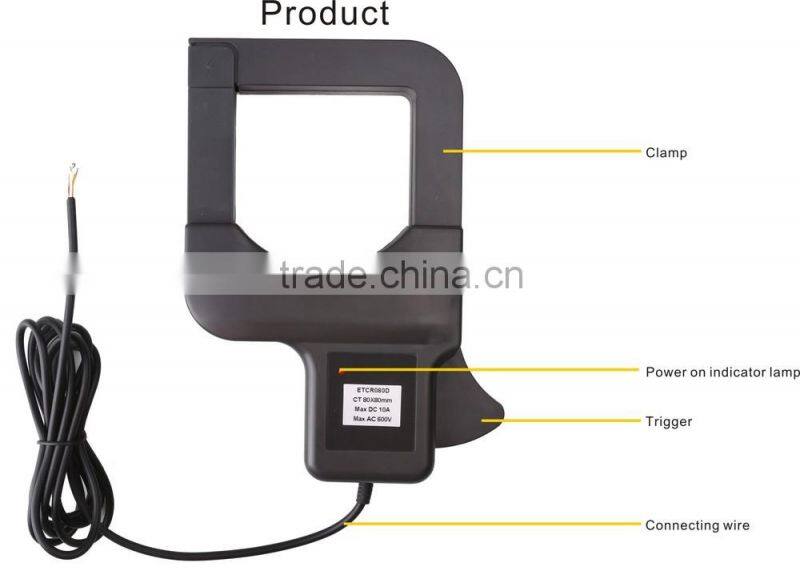

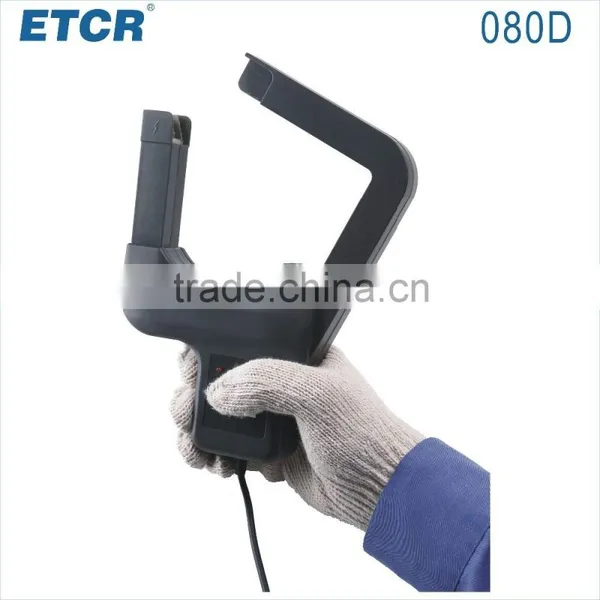

ETCR080D Large Caliber DC Clamp Current Sensor is well designed and manufactured for measurement of DC leakage current and current. Its large caliber 80mm×80mm can clamp electric cable of φ80mm, or 96mm×4mm flat cable and steel earth wires. It can be connected with high accuracy digital multimeter, data recorder or electric power quality analyzer, widely used in the field of electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc. Customizing is acceptable.
Model Different
Model |
Range |
Turn ratio |
frequency |
Secondary output/load |
Accuracy class |
Size of clamp (mm) |
Dimension (mm) |
ETCR-080 |
AC 2000A |
1:800 |
45Hz~400Hz |
0-200mA≤3kΩ 0-20A≤30Ω 0-2000A≤0.3Ωm |
±1%FS |
80×80 |
194×145×40 |
ETCR-080A |
AC 2500A |
1:3000 |
45Hz~400Hz |
0-2500A≤0.3Ω |
±1%FS |
||
ETCR-080D |
DC 10A |
Magnetic modulator |
45Hz~100kHz |
2.5mV/10mA (0~2.5V) |
±3%FS |
Technical Specifications
Function |
Measure DC leakage current, current |
Test Mode |
Clamp CT, integral mode |
Clamp Size |
80mmX80mm (can clamp electric cable of φ80mm, or 96mm×4mm flat cable and steel earth wires) |
Power Supply |
DC 9V~12V/10mA |
Measurement Range |
DC 0.0A~10A |
Resolution |
DC 0.1A |
Output |
0~2.5VDC (Full range corresponding output) |
Accuracy |
±3%±5dgt(23℃±3℃, below 70%RH) |
Earth Magnetic Interference |
MAX 5mA (Earth magnetic interference means earth magnetic changes result from different position and direction of the clamp current sensor) |
Leadwire Length |
2m |
Wire Identification |

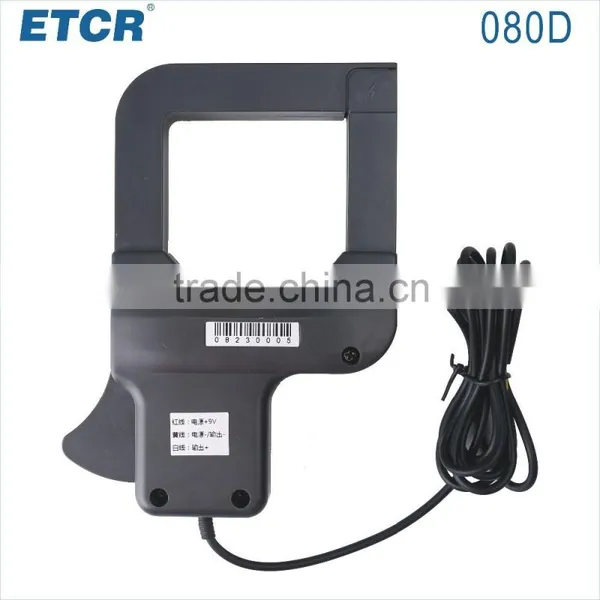

Red wire----Power input (Positive) |
White wire----Output (Positive) | |
Yellow wire----Ground | |
Measured Wire Position |
Measured wire at approximately the geometric center of the clamp |
Line Voltage |
Below AC 600V line measurement |
Size |
Length 190mm × Width 145mm × Height 40mm |
Weight |
600g |
Working Temperature and Humidity |
-20℃~50℃, below 80%rh |
Storage Temperature and Humidity |
-10℃~60℃, below 70%rh |
Insulation strength |
AC 2kV/rms(between core and shell) |
SafetySpecifications |
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V) |
Accessories |
Current Sensor: 1 pc |
Packing
Packing Case Size(L×W×H):200×150×75(mm)
Weight:1Kg
