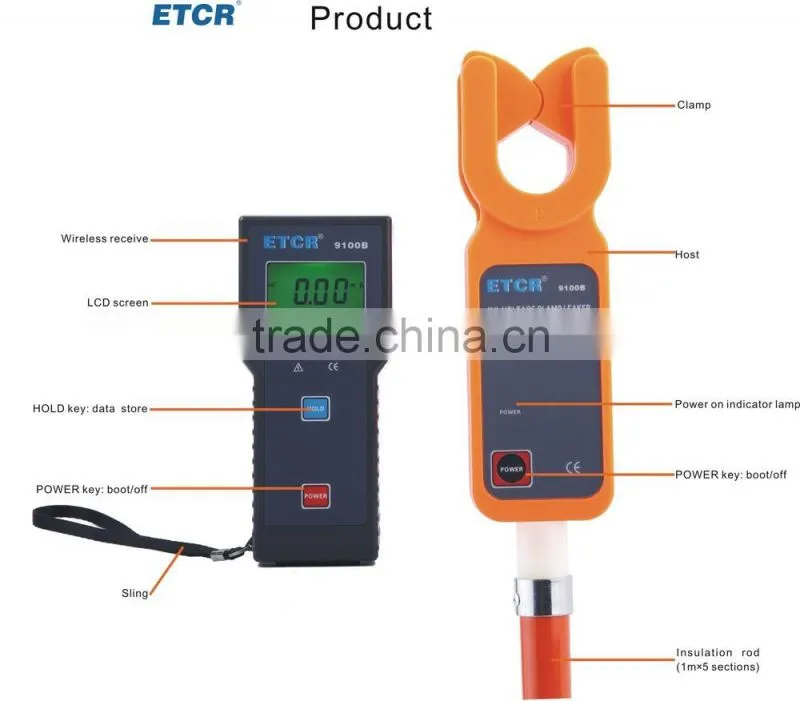

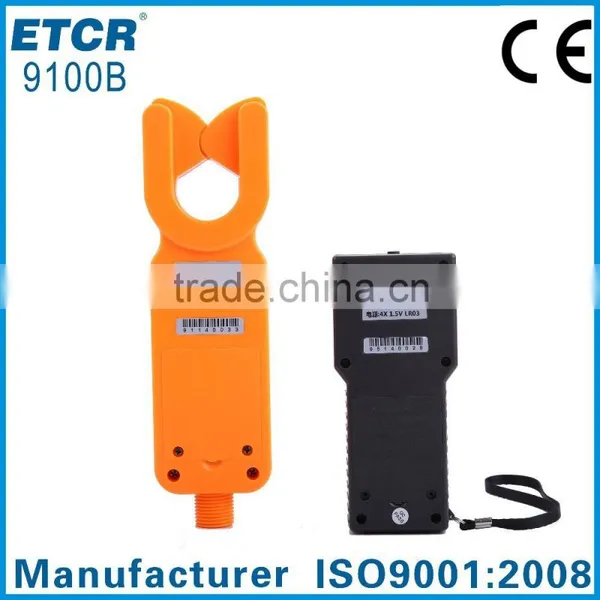

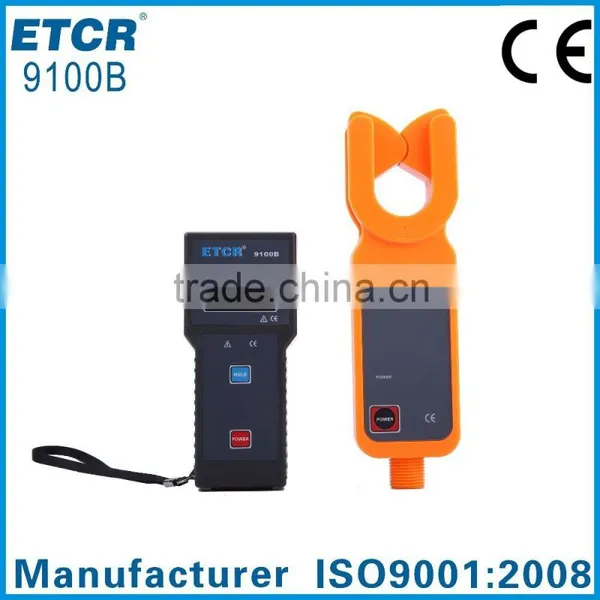

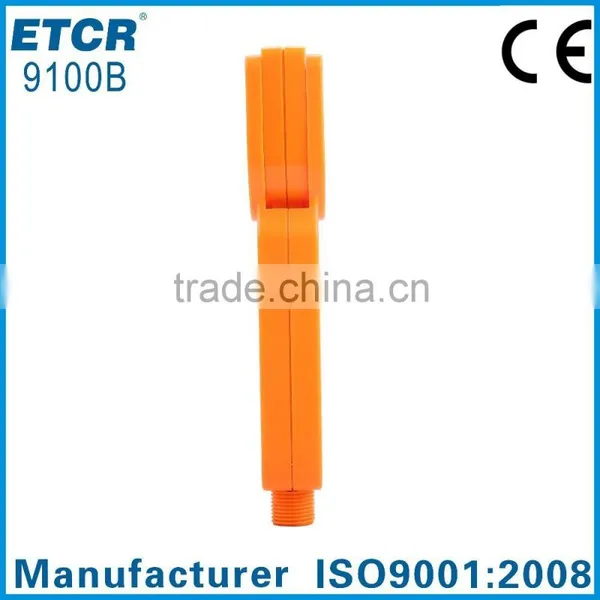

ETCR9100B Wireless H/L Voltage Clamp Leakage Meter
Product Information
Product Features

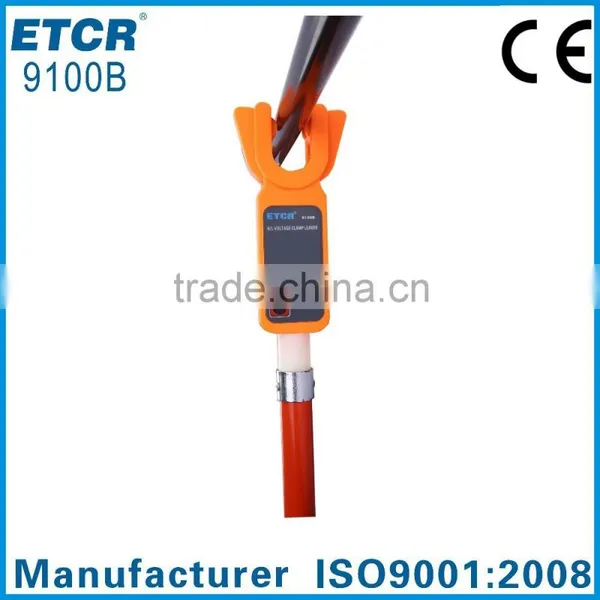

1.It is connected with insulation rod, which can be used for measuring high voltage current that is below 60KV, leakage current measurement ,on-line current measurement
2.Its special clamp meter can make it easier for clamping or evacuating the tested wire through pressing or pulling back the insulation rod, time-saving and fast
3.Wireless transmission can traverse obstacles such as walls; direst transmission distance is 30m.
4. Range: 0.0mA~600A
5. Accuracy: 0.00mA
6.Circuit Voltage: below 60KV (operated with insulation rod)
7. Data Storage: 99 sets
8.Clamp Diameter:φ33mm
Model Difference
Model |
Description |
Range of measurement |
Accuracy |
Jaw Specification |
ETCR 9100 |
base |
0.0mA-600A
|
0.01mA |
φ33mm |
ETCR 9100B |
wireless |
|||
ETCR 9100S |
portable |
Technical Specifications
Function |
Measurement of H/L AC leakage current, current online test;indirect test of current transforming ratio |
Power supply |
DC6V Alkaline LR03×8 |
Display mode |
4 Digits LCD display, backlight; LCD dimension: 47mm×28.5mm |
Test Mode |
Clamp CT, integration mode |
Meter Dimension |
Tester: 68×245×40(mm);Receiver: 75×170×30(mm) |
Transmission Mode |
Wireless transmission, the maximum, distance of straight line transmission is about 30m |
Clamp Size |
φ33mm |
Resolution |
0.01mA |
|
Range and Accuracy (23℃±5℃ Below 80%RH) |
0.00mA~100.0A: ±1%±5dgt |
100.0A~600A: ±2%±5dgt | |
Circuit Voltage |
60KV(bare wire below35KV) (operated with 5 isolation rods) |
Data Memory |
99 sets, memory process is shown by MEM , full storage is shown by blinking FULL |
PEAK Holding |
Automatically maintain the high test value, in usual testing mode, Press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function. |
Data Hold |
In usual testing mode, press HOLD key to keep data, shown by HOLD |
Data Access |
MR indication, can access to all data |
Overflow |
Over-range overflow function: shown in OL A |
Auto power-off |
15 minutes after boot |
Battery replace |
When battery voltage is lower than 4.8V, it will indicate to replace the battery. |
Meter Mass |
Tester: 575g ;Total:2500g |
Size of rod |
φ32mm, 1m/piece (5 pieces) |
Humiture |
-25℃~40℃; below 80%Rh |
Insulation Strength |
AC 100kV/rms. (between the 5th insulation rod and high voltage current clamp core) |

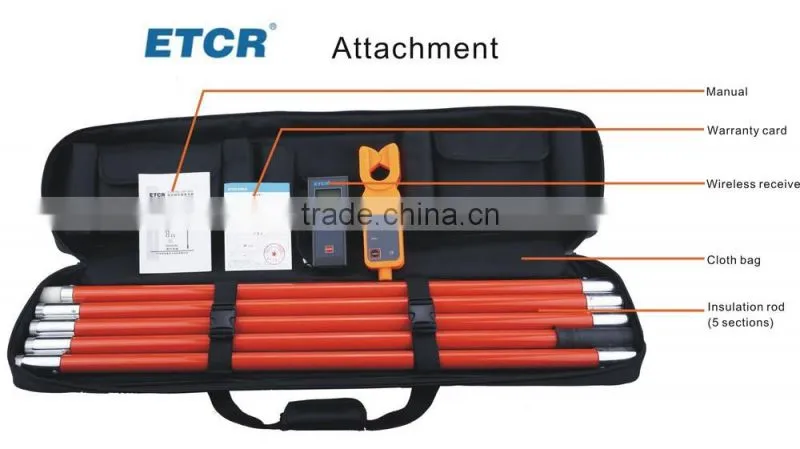

Accessories |
Meter:1 pc, Receiver:1 pc ,Case: 1 pc, Rod:5pcs, Battery(LR03):8pc, |
Packing
Packing Case Size(L×W×H):1040×260×160(mm)
Weight:10Kg
