Used tire recycling equipment price
- 100 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Henan, China | Brand Name: | HVST | Model Number: | XKP-350/400/450/560/560D |
Voltage: | 380V or as requests | Power(W): | 30-132KW | Dimension(L*W*H): | 20GP container |
Weight: | 5-22 tons | Certification: | ISO9001, patented products, National patent and SGS certification | Warranty: | 2 years warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Used tire recycling equipment price
1. Crusher roller speed ratio: Ours is 1: 2.5, while the old type roller speed ratio is 1: 1.38.

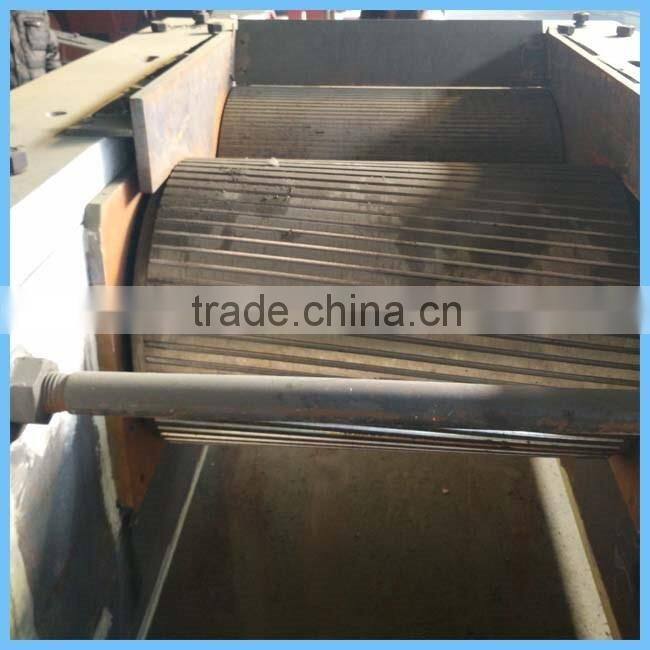

2. Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output, while the old type is one with groove, and the other is smooth.

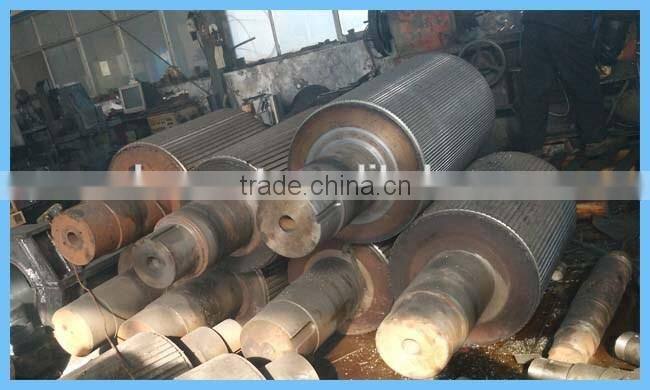

3. Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller. While the old types machine use cast iron to make the rollers, very easy to break or crack in two .
4. Machine feature: Our machine is energy saving 1/3. For example, producing 1T powder, our machine electricity consumption is only 150°, while their electricity consumption is about 250- 280° in making 1T powder.
5. Bearing: Our machine use rolling bearing, there are 8 pieces bearing inside, while the old machine use the slide bearings ( bush) , which is not as good as ours.
Model | Drum diameter | Drum length | Front roll linear | Roll speed ratio | Max roller spacing | Motor power |
XKP-350 | 350mm | 500mm | 26.2m/min | 1:2.5 | 8mm | 30kw |
XKP-400 | 400mm | 600mm | 34.5m/min | 1:2.5 | 8mm | 45kw |
XKP-450 | 450mm | 760mm | 38.0m/min | 1:2.5 | 8mm | 55kw |
XKP-560 | 560mm | 800mm | 38.6m/min | 1:2.5 | 8mm | 75kw |
XKP-560D | 560mm | 800mm | 42.5m/min | 1:2.5 | 8mm | 132kw |

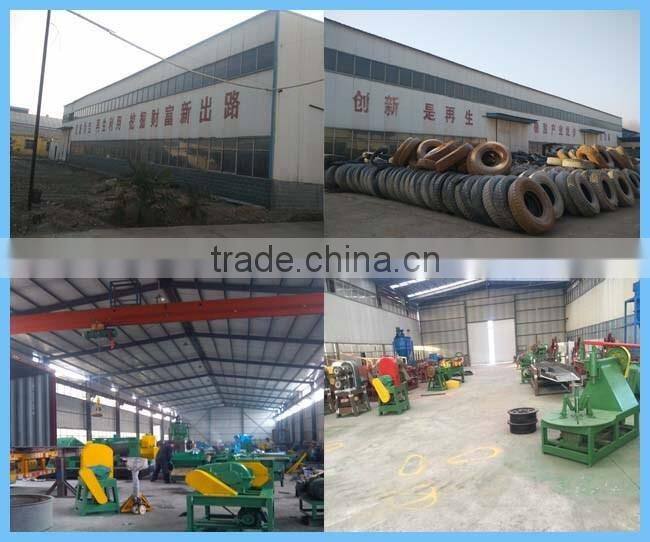

Our factory established in 1987, has a long history. It is located in Henan
province.By the advanced and professional technology and the best service
our machines have exported to Columbia, United States, Algeria, Jordan
and other countries and also win the customers' trust.

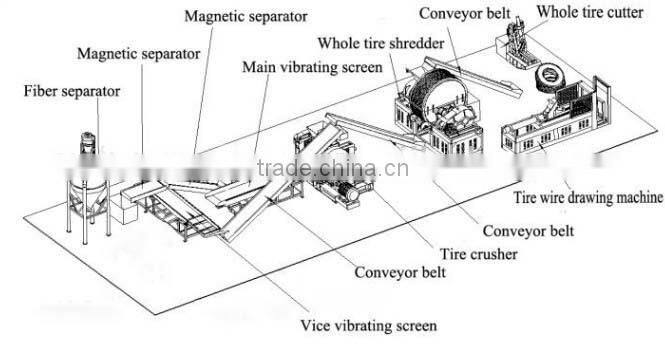

Waste tire---Tire de-beader---Whole tire cutter---Tire shredder---Rubber
crushing--- magnetic separating ---Rubber powder

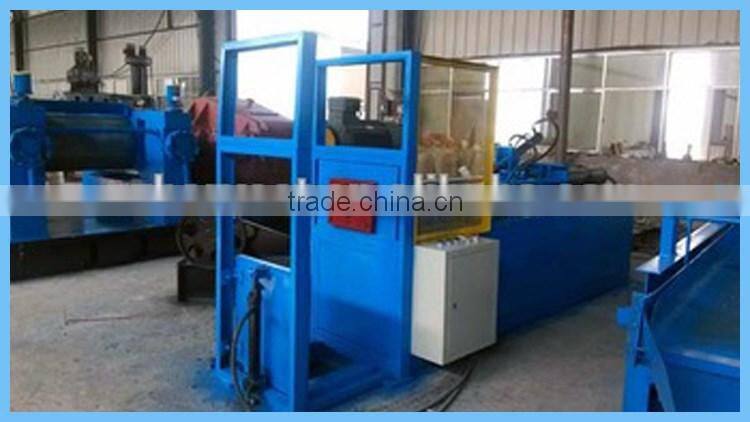

1.Tire De-beader: remove the wires of tire bead.
Model | TD-1200 |
Feed size of tire | ≤ 1200 mm whole tire |
Capacity | 40 tires/h |
Power | 7.5kw/h |
Overall dimensions | 4.1*1.3*1.75m |
Equipment weight | 2.8T |

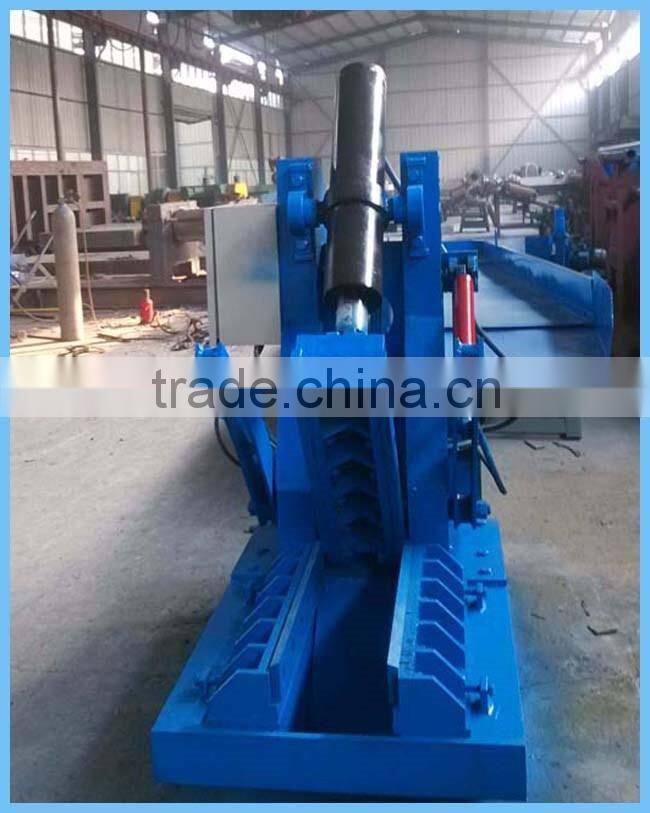

2. Whole tire cutter: cut the whole tire into some pieces.
Model | TC-1200 |
Feed size of tire | ≤ 1200 mm whole tire |
Capacity | 30-40 tires/h |
Working pressure | 12T |
Power | 7.5KW |
Overall dimension | 1.85*0.7*1.76m |
Equipment weight | 2.5T |

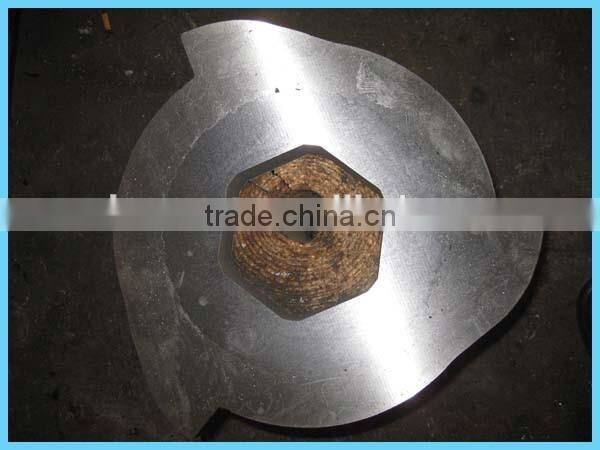

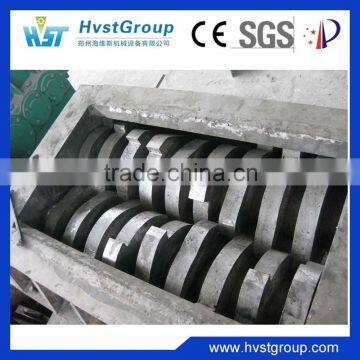

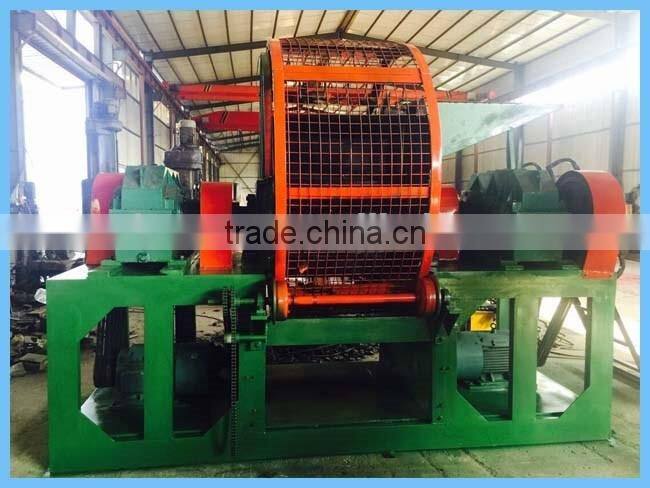

3. Tire shredder: shred the whole tires into small blocks.
Model | TS-900 | TS-1200 |
Production capacity | 1-2ton/h | 2-4 ton/h |
Size of feeding(mm) | ≤900 whole tyre | ≤1200 whole tyre |
size of the slice | ≤50*50mm | ≤60*60mm |
Quantity of the knives | 16 pcs | 20pcs |
Motor power | 22kwx2 | 55kwx2 |
Dimension | 2.8*2.1*2.4m | 4.8*2.8*3.5m |
Weight | 6.2T | 15.6T |

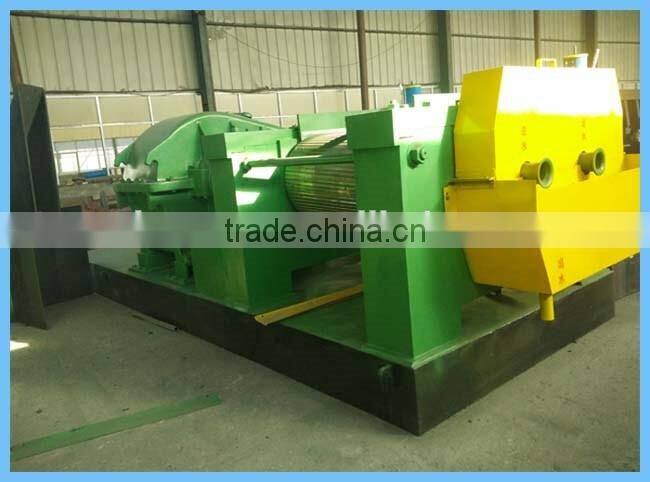

4. Rubber crusher: to grind the chunks into smaller mesh powder through the vibrating screen as you need.

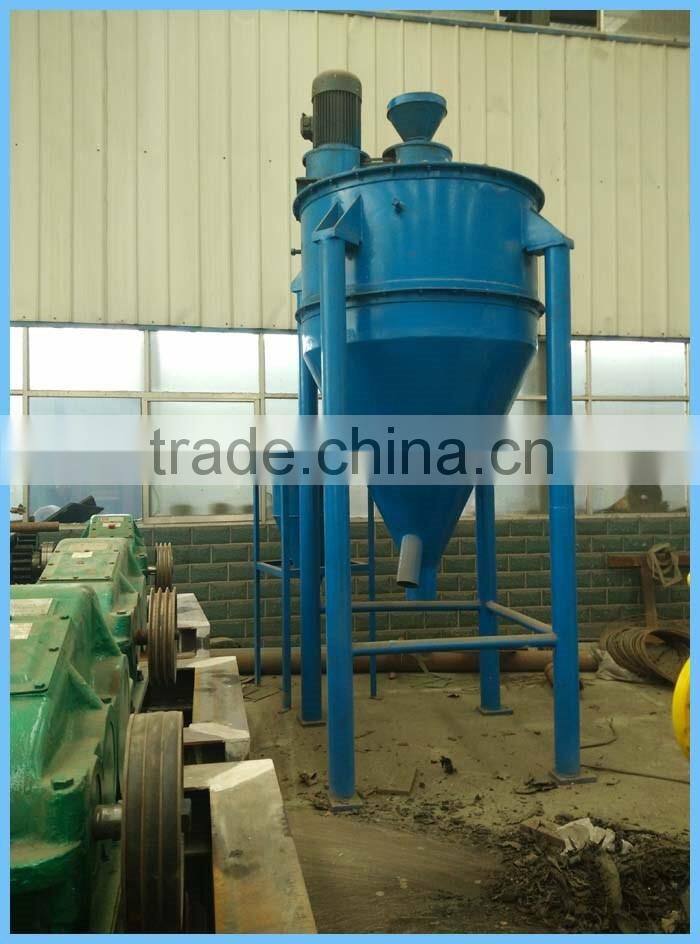

5.Magnetic separator:to sedparate the wire steel from the rubber powder.
Name | Motor power | Weight | Specifications |
Magnetic separator | 1.5kw | 400kg | Permanent magnet |
6. Nylon separator:
Final rubber chips and rubber powder in different sizes:
Application: to make the rubber tiles, rubber mat, waterproof material and so on.
Pre-sales Service:Freely provide project designing,Professional suggestions
,Quicky Response!
Medium-sales Service:Accompany you to complete the purchasing, shipping
,installing and training
After-sales service:2 years quality guarantee, Life-long Maintenance
