No pollution tire recycling line for rubber powder
Features of tire recycling line:
Tire recycling line is used to crush the waste tire into rubber powder in 5-100 mesh with purity of 99.9%.
No sewage and waste gas discharge, environment protection, saving 1/3 energy.
Exporting experience: we have exported to US, Algeria, Indonesia, Thailand, Saudi Arabia, ect.
Compare with the common machine:
1. Certification: Our machines have got national patent certification, the patent
number is: 200920223850.2 .
2. Warranty: All our machines have 2 years warranty. But for the rollers on the tire crusher, we offer 3 years warranty.
3. Material: The material we adopt on the roller is alloy 5Cr6MnMo, no need to
change forever.
Flow process of tire recycling line:
Waste tire---Tire circle cutting---Rims separating---Tire strip cutting---Tire slice cutting---Rubber crushing--- magnetic separating ---Rubber powder

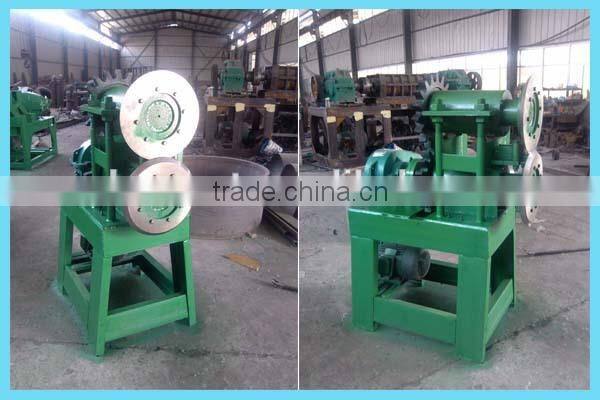

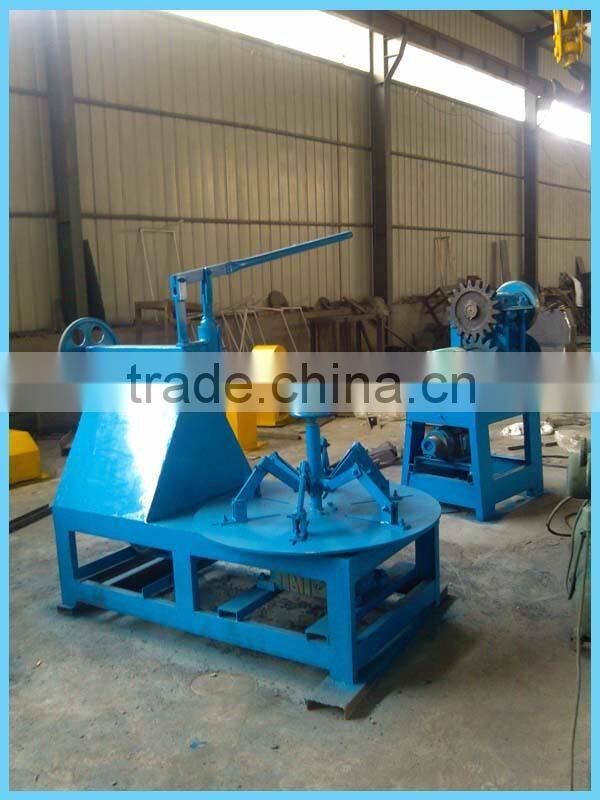

Tire circle cutter is used to cut and open the joint of tire's side and top.
Rims separator is used to separate the steel rims around the tire to avoid the harm to the machine.

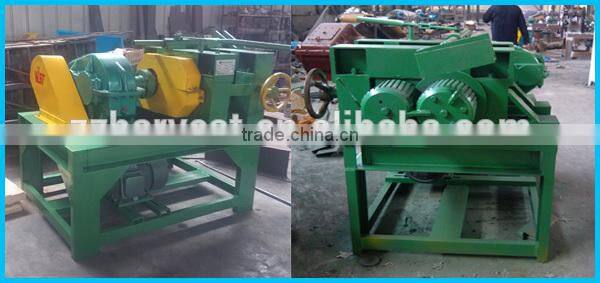

Tire strip cutter is used to cut the tire cirlce into strips 5x8 cm .

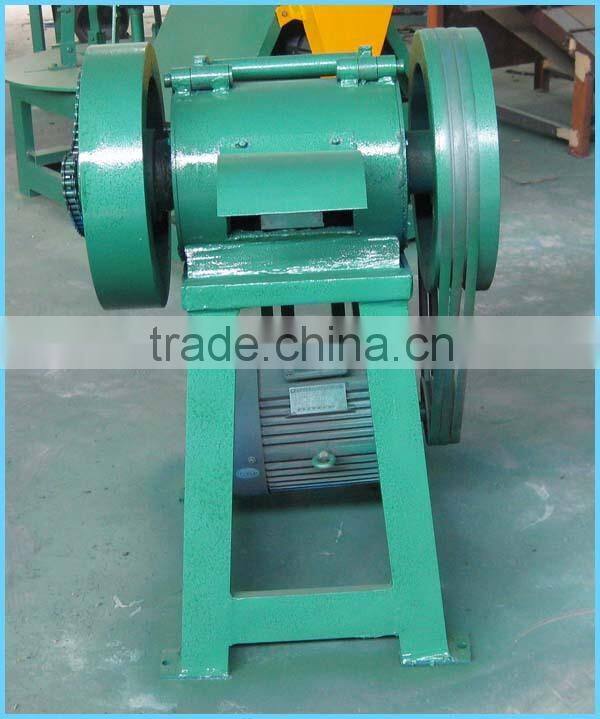

Tire slice cutter is used to cut the strips into small chunks about 3.5 cubic centimeter.

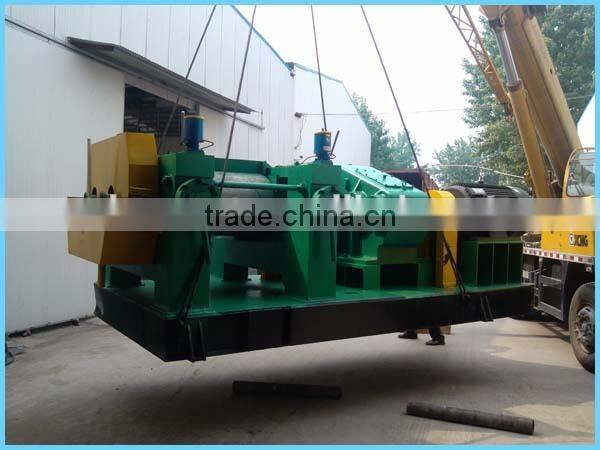

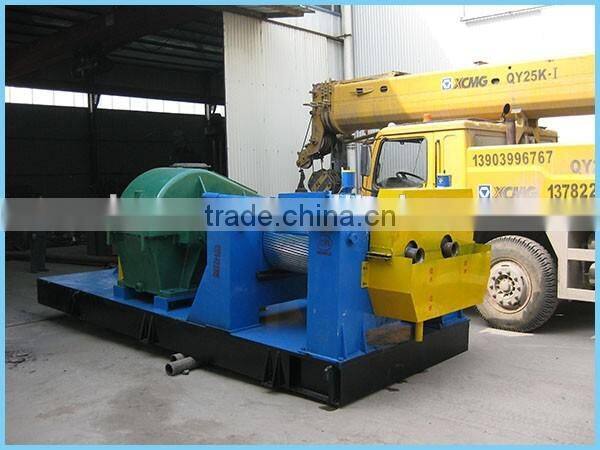

Rubber crusher is used to grind the chunks into smaller mesh powder through the vibrating screen as you need.
Model |
Capacity |
Drum diameter |
Drum length |
Front roll linear |
Roll speed ratio |
Max roller spacing |
Motor power |
XKP-350 |
3ton |
300mm |
500mm |
26.2m/min |
1:2.5 |
8mm |
30kw |
XKP-400 |
6ton |
400mm |
600mm |
34.5m/min |
1:2.5 |
8mm |
45kw |
XKP-450 |
8ton |
450mm |
760mm |
38.0m/min |
1:2.5 |
8mm |
55kw |
XKP-560 |
10ton |
560mm |
800mm |
38.6m/min |
1:2.5 |
8mm |
75kw |
XKP-560D |
20ton |
560mm |
800mm |
42.5m/min |
1:2.5 |
8mm |
132kw |
Rollers on tire crusher: 2 grooved.

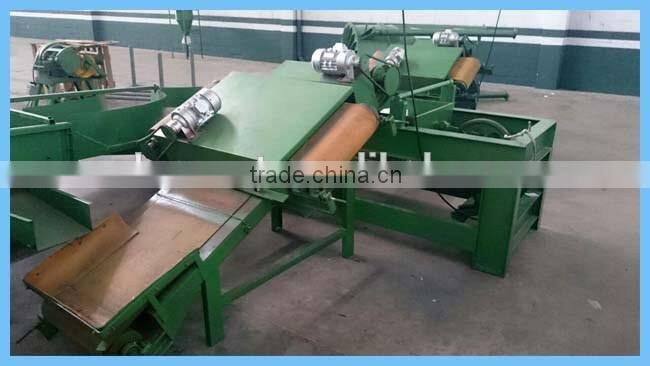

Magnetic separator: To separate the steel wires from the rubber powder.

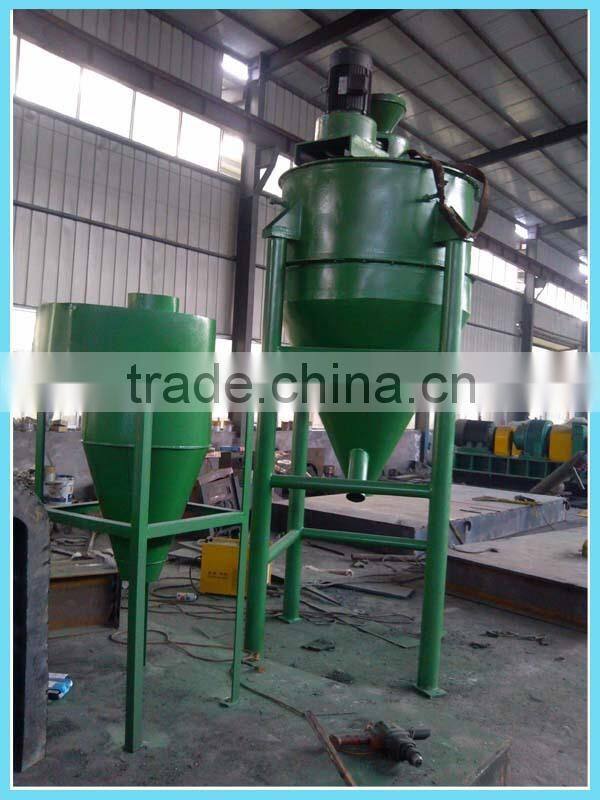

Fiber separator: to separate the fiber nylon from the rubber powder.
Rubber powder:

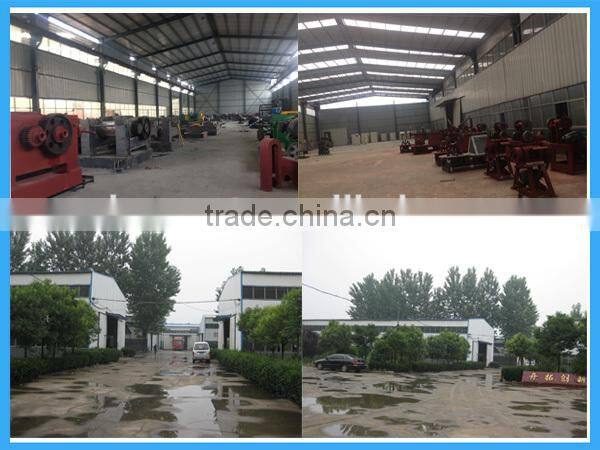

We are one of the leading manufacturers of tire recycling line to rubber powder in China, our factory established in 1987, with a long history, we
have professional technology, and the best after-sale services, all products
are be offered 2 years warranty.
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
2 years quality guarantee, Life-long Maintenance
Q1,I am so worried about the machine quality, can you ensure our machines to be the best ?
A. On the one hand, Machine quality is the life of enterprise.all our business due
to supplying high quality products and honest management. On the other hand, the good quality products are the live advertisement in your country, it can attract
more good customers for us. We will absolutely seize this great opportunity to
satisfy youand satisfy your market with perfect products.
Q2. Can you guarantee the capacity as you mentioned ?
A. Definately yes, the grooved two rollers are specially designed to increase the
output and ensure the working efficient.
Q3, are you sure the final rubber powder can be completely clean out of wire steel or nylon ?
A. The final powder purity can reach 99.9%. we have magnetic separator which can separate the wire steel from the rubber powder.
