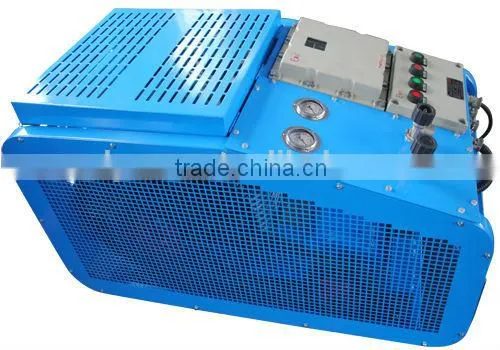

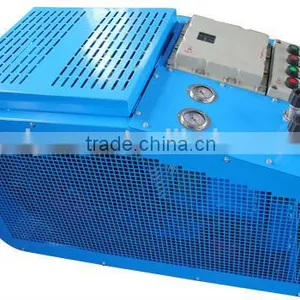

PRBW18CNG 300L/Min horizontal Scuba Diving and Breathing Air Compressor

Specifications

scuba diving portable air compressor
1,nylon cooling fan
2,solid base,and vibration-proof supports
3,multi drive ways

PRBW18CNG  300L/Min horizontal Scuba Diving and Breathing Air Compressor



Specifications:

1,nylon cooling fan

2,solid base, and vibration-proof supports

3,multi dive ways

4,10μm air purifier

5,2^nd stage oil-vapour separator,1^ststage purify system

6,filter surface corrosion resistance treatment

Technology:

1,3-cylinder,3-stage piston reciprocating

2,oil-lubricated,belt-driven,air cooling

3,compress 0.1Mpa to 20-30Mpa high pressure air

4,corrosion-resistance copper cooling pipe between stage

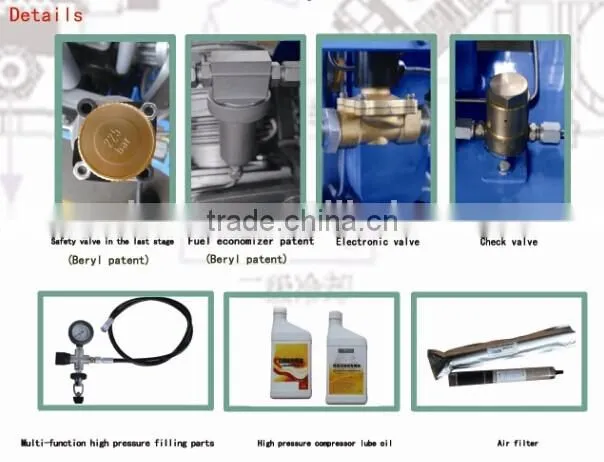

5,Safety valve and purifier in the last stage

6,piston and cylinder is made by Cu,Cr,Mo alloy heat-resistance material

7,beryl bottom waste collector

8,German technology, beryl machine and manufacture



model	Pressure(MPa)	Displacement(L/Min)	Voltage(V)	Power(KW)	Weight(Kg)	Voice(dB(A))	size(cm)
PRBW18CNG	20-25	300	380	7.5	202	72	100*60*73
