Free to Air ISDB-T Set Top Box HD

Free to Air ISDB-T Set Top Box HD thumbnail-1
Free to Air ISDB-T Set Top Box HD photo-1
US$ 1 - 20 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Shineco
Model Number:
M5
Contact Supplier Request Quote Chat Now
Chengdu Shineco Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Shineco
Model Number M5

Free to Air  ISDB-T Set Top Box HD

                                            Welcome to add Tina Skype: shineco.tina








Product Description



Hardware
CPU v
Memory 32X16Mbit DDR2 Frequency1066
Flash 32M bytes
Demodulator Type ISDB SOC Chip Set
TUNER Rafael R836

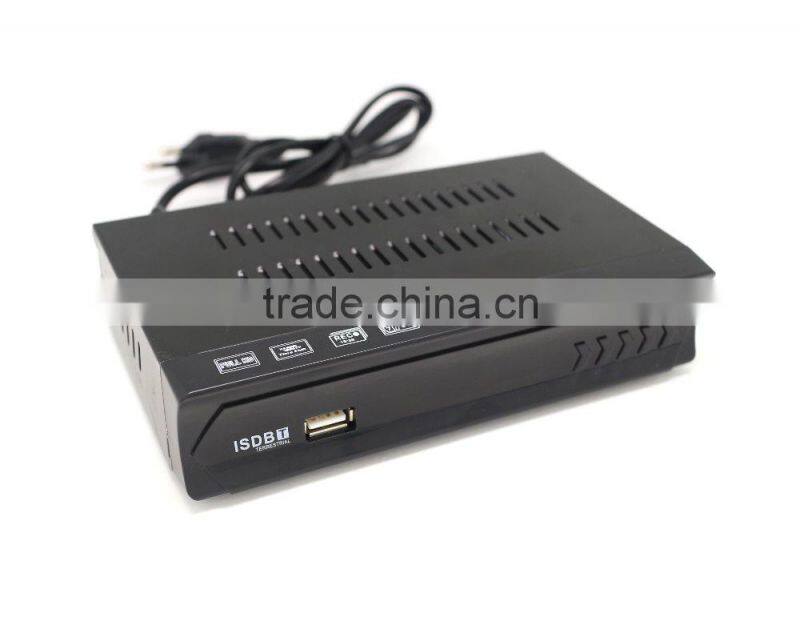

Front Panel USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby,green LED Lock
Panel KEY, POWER, CH+ ,CH-
Rear Panel Tuner RF input connector   EC-type IEC169-2 Female
Tuner RF Loop through connector   IEC-type IEC169-24 Male
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
Demodulation
Terrisal Receiver Standard ISDB-T broadcast (1, 3, 13 segment)
Input RF Frequency VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwidth 6MHz
Demodulatio QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval 1/4,1/8,1/16,1/32
FFT Mode 2K/ 8K/32K
Input level -83 - -5dBm
Sortware Features
•used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface
•Support teletext/subtitle/muti-language

•Supported 7-Day EPG function, VBI Teletext

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder
Video Decoder Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features

MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec JPEG, BMP, PNG
License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Accessories
Accessories gift box
AV cable optional
HDMI cable optional
IR remote control
User Manual
Loading
Loading machine size 220*135*40mm Packaged size 52.5*45.5*25.5cm
Pcs/Ctn 20pcs Carton weight 16kgs
Loading for 40GP 18360pcs Loading for 20HQ 9180pcs






Packaging & Shipping

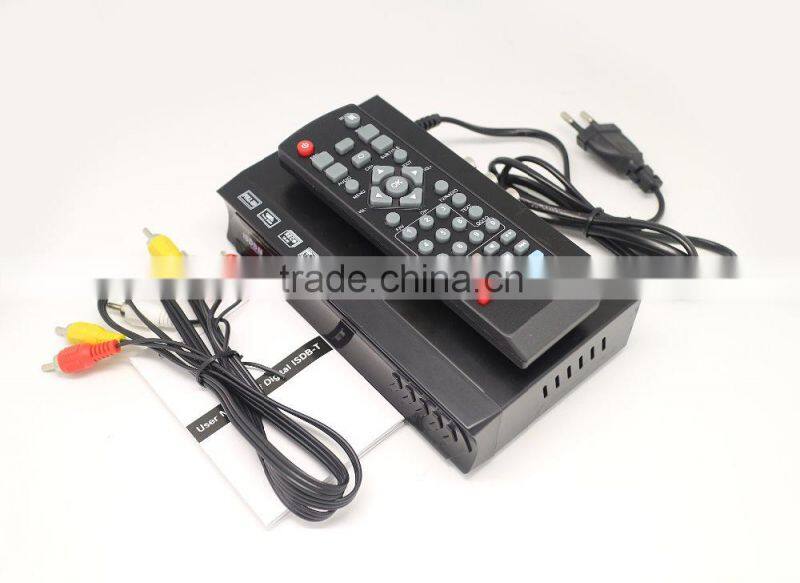

What's in the package ?

  • 1*ISDB-T set top box
  • 1*Power adapter
  • 1*HDMI cable
  • 1*Remote control
  • 1*AV cable
  • 1*User Manual



Packaging Details :



Carton meas.:48.5*33.5*43.2cm
Qty per export carton: 20 pcs
G.W:13.5KGS N.W:12.5KGS






Delivery Details :



Samples :



Lead time: 3-5 working days.



Charge:The buyer pays the sample cost and freight.



Bulk order Production :



Lead time: 15-25 working days after receive TT payment.

 Free to Air ISDB-T Set Top Box HD



Closed Photo

 Free to Air ISDB-T Set Top Box HDFree to Air ISDB-T Set Top Box HDFree to Air ISDB-T Set Top Box HDFree to Air ISDB-T Set Top Box HD



solutions

Free to Air ISDB-T Set Top Box HDFree to Air ISDB-T Set Top Box HD



Contact Information
company website
Attn Tina Zeng
Email  tina @
skype ID Shineco.tina
Tel:   86-18080047229

             Click here to Get Online Chart and Latest Price
