09SH Series 3 Stage Piston Air Compressors

Specifications

1. high pressure air compressor
2. energy conservation
3. low vibration, low noise, low oil consumption
4. high durability

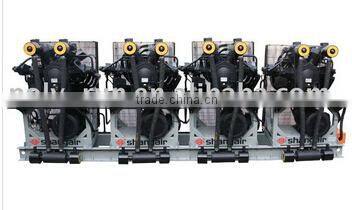

09SH Series 3 stage Piston Air Compressors





Detailed Product Description

1. high pressure air compressor
2. energy conservation
3. low vibration, low noise, low oil consumption
4. high durability



Discharge capacity:5.2-6.4m³/min

Discharge pressure:40Bar

Model No.	Air Discharge (m3/min)	Discharge Pressures (Mpa)	Moter Power (KW)	Weight (kg)	Size (mm) Length×width×height
4-09SH-1540T	5.2	4.0	15x4	2270	4625*1100*1600
4-09SH-1840T	6.4	4.0	18.5x4	2360	4625*1100*1600



--Main Characters of  Specially for PET Bottle Blowing High Pressure  Air Compressor:







• Patented technology “Polygon Cylindrical Straight Flow Valve”(patent number:00220347.2).The valve plate is free from fracture during its working life!







• Suction diaphragm valve (air and electric adjusting combination)







• Monomer cast chromium plated rings are applied, and the working life is extended by 3to4 times.
• Heavy-duty cast iron piston.





• Induction low oil level protection device.







• The whole unit (comprising connecting rod) adopts rolling bearing without bearing shell.







• Heavy duty ,long working life & low noise main bearing.







• Integrated low-side suction & noise reduction filtering system







• Canonical air collection and pollution discharge system
• unique dynamic balancing technology is applied, the vibration is only as a quarter lf the world standard.
