HD Combo DVB-S2 DVB-T2 Satellite Receiver
---Latest Price please contact skype ID:nancydvb
| Hardware | ||||
| CPU | Montage VT6000 (128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | Montage DM6000 Chip Set | |||
| S2+TUNER | Montage TS2022 Chip Set | |||
| T2+TUNER | MaxLinear MXL 608 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||
| Rear Panel | S2 LNB IN input connector | IEC60169-2 | ||
| T2 ANT input connector | IEC-162-2(IEC Female) | |||
| HDMI V1.3 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| DVB-T2 Demodulation | ||||
| DVB-T2 Demodulation | Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency 48~866MHZ | ||||
| Bandwidth6MHz,7MHz,8MHz | ||||
| Constellation QPSK 16-QAM 64-QAM and 256-QAM | ||||
| FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||||
| Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||||
| FFT Mode 2K/ 8K/32K | ||||
| Support Single and multiple PLPS | ||||
| Input level -83~ -5dBm | ||||
| DVB-S2 Channel Decoder | ||||
| DVB-S2 Channel Decoder | Frequency Range | 950MHz-2150MHz | ||
| Sensitivity Level | - 10~ - 81dBm | |||
| Mode IFFT | 2k,8k | |||
| FEC Mode | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
| Guard intervals | 1/4,1/8,1/16,1/32 | |||
| Constellation | QPSK,8PSK,16APSK | |||
|
Neighboring channels immunity and Protection |
According to ETSI TR 101 190 V1.2.1 | |||
| Active Ant Power | 13/18V DC @ 500mA MAX,Overload Protection | |||
Sortware Features | ||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | ||||
| •Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard | ||||
| •Support BISS KEY | ||||

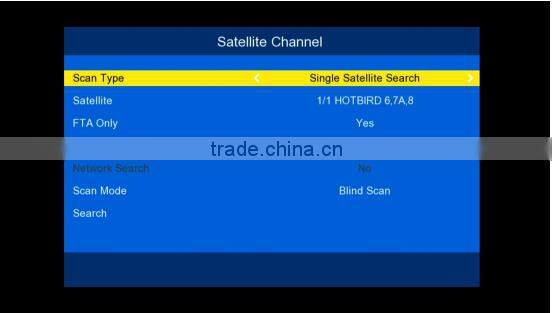

| •Supports single / multiple or blind search satellite search | ||||

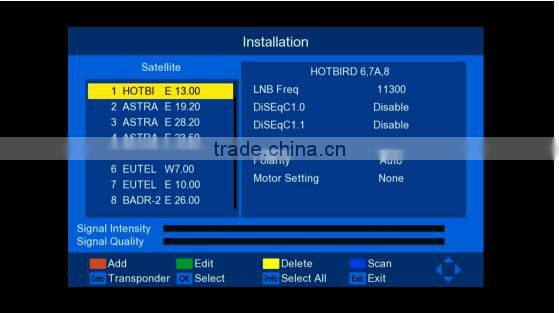

| •DiSEqC 1.0 / 1.1 / 1.2 | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
|
•Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder |
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|||
| Audio Decoder |
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
|||
|
Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec |
WMA,MP3,AAC (.wma,.mp3,m4a) |
|||
| Photo Codec |
JPEG, BMP, PNG |
|||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
| Loading | ||||
| Loading | machine size | 168*95*37mmmm | Packaged size | |
| machine weight | Packaged weight | |||
| Loading for 40GP | Loading for 20HQ | |||
Market of DVB-T2 can be Used
Russian Version:
Russian Federation,Belarus,Kazakhstan,Uzbekistan,Azerbaijan…..etc.
English Version:
Europe Area:Germany,France,Belgium,Norway,Finland,Sweden,Austria,Poland,Switzerland,Netherlands,Hungary,Greece,Ireland,Portugal,Spain,Italy,Slovenia,Slovakia,Romania,Colombia…..etc.
Asia Area:Singapore,Indonesia,Malaysia,Thailand,Israel….etc
The Pacific Area:Australia,New Zealand…etc.
Mideast Area:Saudi Arabia,Iran,Turkey....
What's in the package ?
- 1*DVB-T2 set top box combo DVB-S2
- 1*Power adapter
- 1*HDMI cable
- 1*Remote control
- 1*AV cable
- 1*User Manual
Packaging Details :
Carton meas.:48.5*33.5*43.2cm
Qty per export carton: 20 pcs
G.W:13.5KGS N.W:12.5KGS
Delivery Details :
Samples :
Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Bulk order Production :
Lead time: 15-25 working days after receive TT payment.
About Shineco company advantage?
Chengdu Shineco Technology Company is above 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.
Click here to get the lastest Price and Solution.
