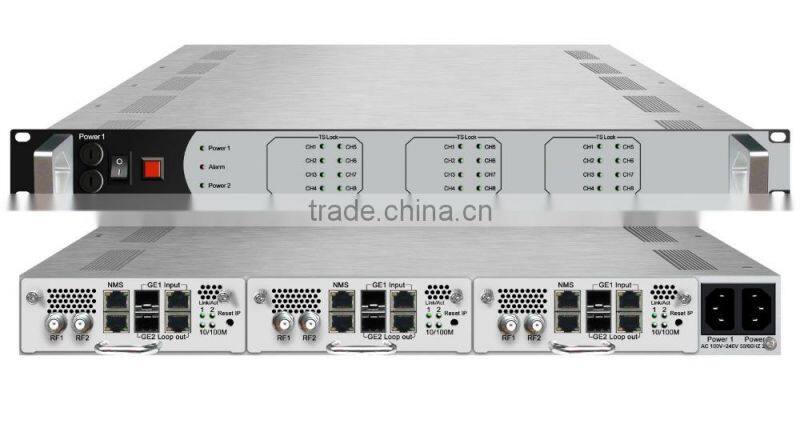

Digital CATV Headend IP QAM Modulator With MUX-Scrambling

Name: Digital CATV Headend IP QAM Modulator With MUX-Scrambling
Brand: Shineco
SKU: 111243913
Availability: InStock

Digital CATV Headend IP QAM Modulator With MUX-Scrambling thumbnail-1

Digital CATV Headend IP QAM Modulator With MUX-Scrambling photo-1

US$ 2,000 - 4,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Shineco

Model Number:

SNK606

Contact Supplier Request Quote Chat Now

Chengdu Shineco Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Main Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Shineco

Model Number SNK606

Digital CATV Headend IP QAM Modulator with MUX-Scrambling

Please add Tina skype: shineco.tina for direct discuss and more details

Product Description

Outline

IP Mux-Scrambling and modulation module is the latest generational Mux-scrambling-modulating all-in-one device developed by Shineco. Each daughter card combines 8 multiplexing modules, 8 scrambling modules and 8 QAM (DVB-C) modulating modules, which makes it posssible that every daughter card works stand-alone. It supports maximum 256 IP MPTS/SPTS (per daughter card) input through the GE port and 8 adjacent carriers(30M~860M)output through the two RF output interfaces.

This IP Mux-Scrambling and modulation module has adopted slot structure to allow maximum 3 cards to insert one device simultaneously. To draw a conclusion, its excellent integrated level, powerful performance and low cost make it adequate for the new generation CATV system.

Features

Dual power supply (option)
1 GE input, RJ45 interface or SFP
Supports up to 256 channels TS over UDP/RTP, MPTS or SPTS per card
Supports unicast and multicast, supports IGMP v2v3
Max 840Mbps for all input
Supports MPEG2/MPEG-4 re-multiplexing and MPTS/SPTS multiplexing
Supports accurate PCR adjusting
Supports PID filtering, remapping and PSI/SI editing
Supports up to 180 PIDS remapping per channel
Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
Support multiplexed or scrambled TS over UDP/RTP output
8 adjacent QAM carriers output per card, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Supports symbol rate 5.0~9.0Msps, 1Ksps stepping
Supports constellation: 16QAM/32QAM/64QAM/128QAM/256QAM
Supports RS (204,188) encoding
RF output frequency range: 30~860Mhz, 1Khz stepping
RF output level: -16~0dbm(per QAM carrier), 0.5db stepping
Excellent RF performance, MER≥40db
Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
Support NMS/SNMP management

Specifications

Interface	1GE input, RJ45 interface or SFP
Transport Protocol	TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Transmission Code	Max 840Mbps for all input
MUX (each card)	Input Channel	256
	Output Channel	8
	Max PIDs	180 per channel
	Functions	PID remapping
		PCR accurate adjusting
		PSI/SI table automatically generating
Scrambling Parameters	Max simulscrypt CA	4
	Scramble Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/remote connection
Modulation Parameters	QAM Channel	8
	Modulation Standard	DVB-C(EN300 429), ITU-T J.83A/B/C
	Symbol Rate	5.0~9.0Msps, 1ksps stepping
	Constellation	16, 32, 64 , 128, 256QAM
	FEC	RS(204, 188)
RF Output	Interface	2 F typed output port for 8 carriers, 75Ω impedance
	RF Range	30~860MHz, 1kHz stepping
	Output Level	-16dBm~0dBm(per QAM carrier), 0.5dB stepping
	MER	≥ 40dB
	ACLR	-55dBc
System	Network management software (NMS/SNMP)
General	Demission (WxLxH)	630mm×440mm×44.5mm
	Weight	9kg
	Temperature	0~45℃(operation),-20~80℃(storage)
	Power Supply	AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz
	Consumption	15.4W

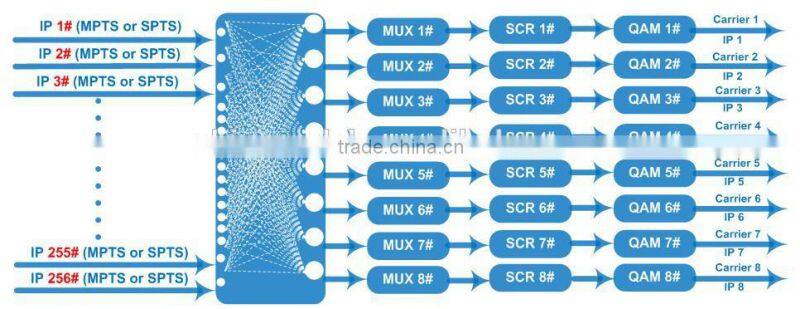

Shineco SNK606 IP QAM Modulator Inner Structure

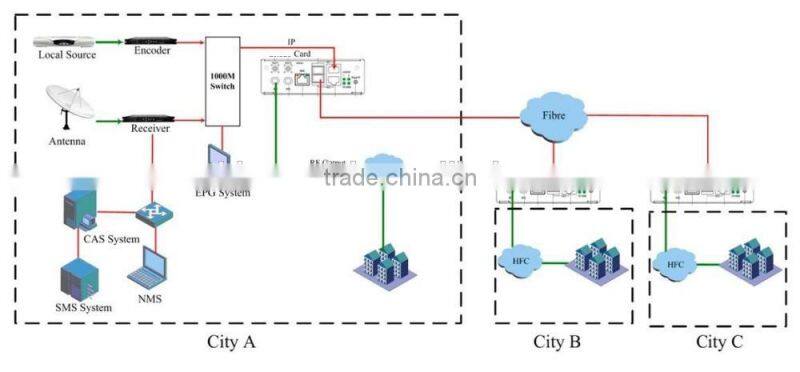

Shineco SNK606 IP QAM Modulator Application and System Connection

FAQ

Q1:Do you support Sample order?

We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,

sample are not free charge.

Sample delivery will take approximately 1-3 working days after payment received,

bulk order lead time is about 5-15 days based on

your quantity.

Q2:What is your Payment Terms?

We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,

our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.

Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?

1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,

and all products will aging above 15 days before ship out,so excent quality is promised.

2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.

3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone

Q4:Do you support OEM?

Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.

Q5:How to place the order?

1.Directly place order from our alibaba website

2.Send your requirement to Tina email or add her skype: shineco.tina for details

Payment Terms:

1. Payment: T/T, Westerunion, Paypal or online pay

2.MOQ: 1 Set

3. Warranty: 5 Years
