4 to 4 Decoder for Encrypted Channel IRD With 48*SPTS IP Output

Chengdu Shineco Technology Co., Ltd.
4 to 4 Decoder for Encrypted Channel IRD With 48*SPTS IP Output thumbnail-1
4 to 4 Decoder for Encrypted Channel IRD With 48*SPTS IP Output photo-1
US$ 800 - 1,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Shineco
Model Number:
SNK-636X
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Shineco
Model Number SNK-636X
FTA(Free To Air) Yes
Type Digital
High Definition Yes

           4 to 4 Decoder for Encrypted Channel IRD with 48*SPTS IP output

                                       Please add Tina skype: shineco.tina for direct discuss and more details









Product Description



Outline

Shineco SNK636X ird  IRD is the new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.



It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.



To meet customers’ various requirements, it is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.


Key Features

*  4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)

*  1 ASI & 4 IP (UDP) input

*  One CAM can decrypt multiple programs from Tuners/ASI/IP

*  IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;

*  4 groups of independent ASI out for tuner/IP passthrough (one-to-one)

*  Support maximum 128 PID mapping per input

*  LCD display, Remote control and Firmware, web NMS management

*  Updates via web



Specification

Input

4x RF (DVB-C, T/T2, S/S2 optional), F type

1×ASI input for de-mux, BNC interface

4xIP input for de-mux (UDP)



Tuner Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Input Frequency

47 MHz~860 MHz

Constellation

16/32/64/128/256 QAM

DVB-T/T2

Input Frequency

44-1002 MHz

Bandwidth

6M, 7M, 8M

DVB-S

Input Frequency

950-2150MHz

Symbol rate

2-45Msps

Signal Strength

- 65- -25dBm

Constellation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Input Frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds;

8PSK 2~30Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Output

IP

48*SPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface (unicast/multicast)

4*MPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface, for RF in passthrough (one-to-one)

ASI

4 groups BNC interface, for RF or IP in passthrough (one-to-one)



System

Local interface

LCD + control buttons

Remote management

Web NMS Management

Language

English



General

Power supply

AC 100V~240V

Dimensions

482*400*44.5mm

Weight

3 kgs

Operation temperature

0~45℃

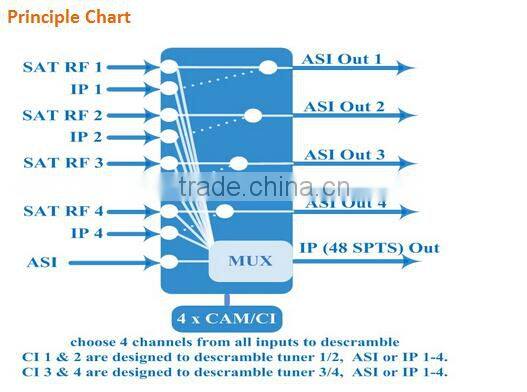

Shineco Decoder for Encrypted Channel IRD  Principal Chart

4 to 4 Decoder for Encrypted Channel IRD with 48*SPTS IP output







How to operate and manageme the equipment by Web?

Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment.

4 to 4 Decoder for Encrypted Channel IRD with 48*SPTS IP output

4 to 4 Decoder for Encrypted Channel IRD with 48*SPTS IP output4 to 4 Decoder for Encrypted Channel IRD with 48*SPTS IP output
