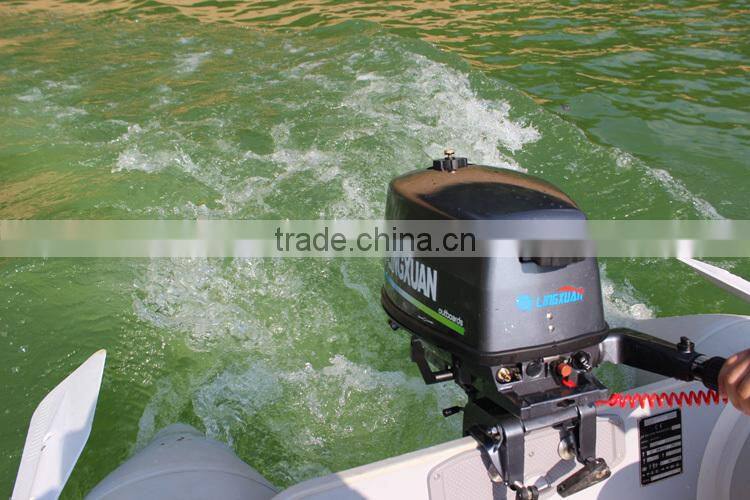

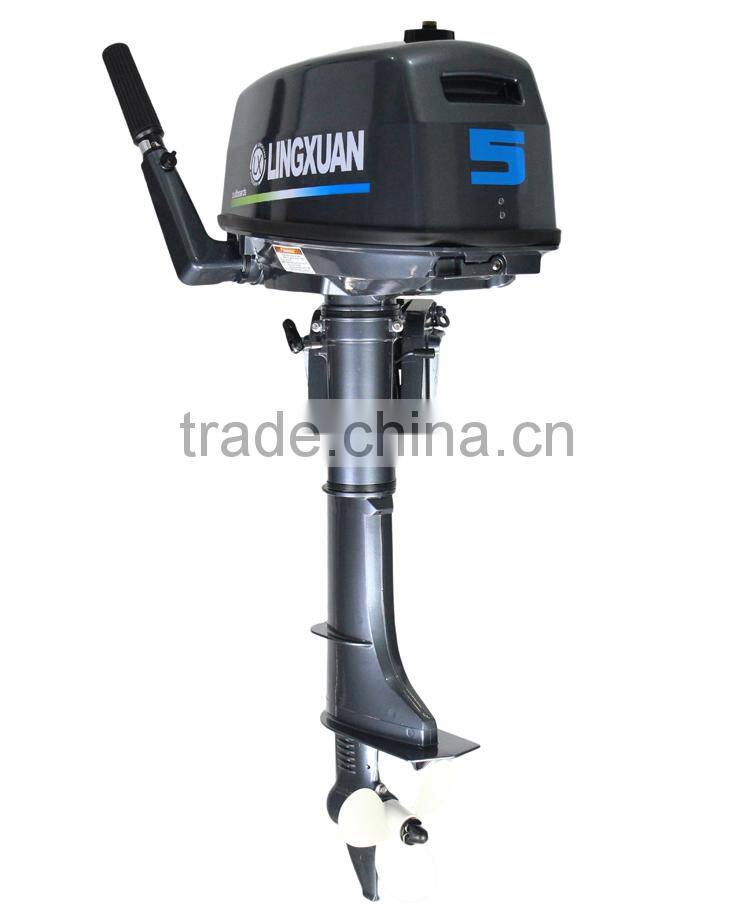

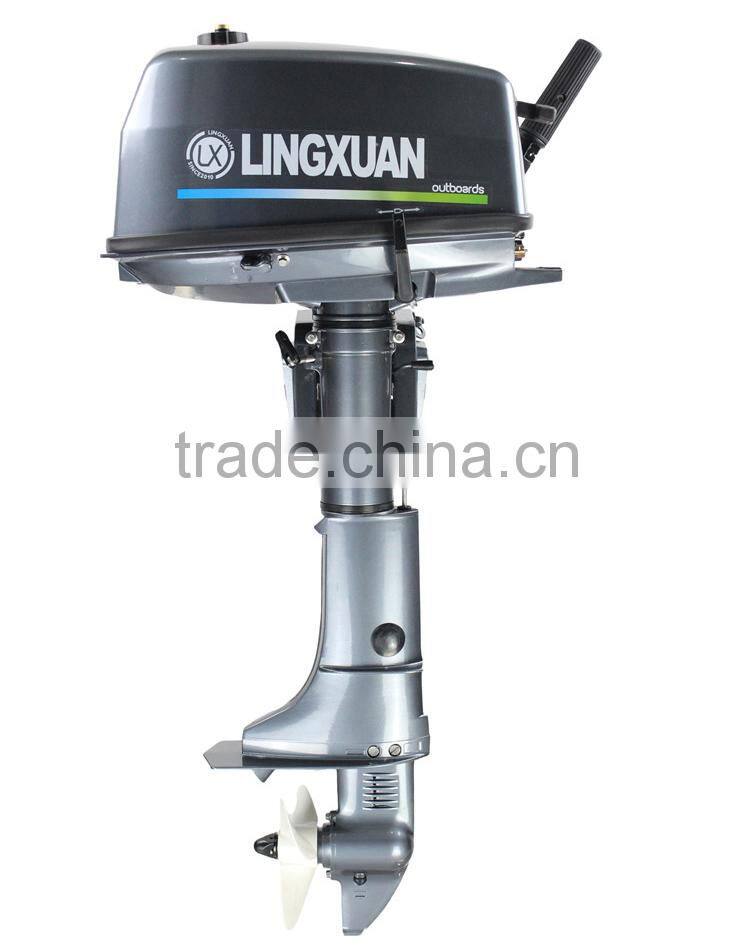

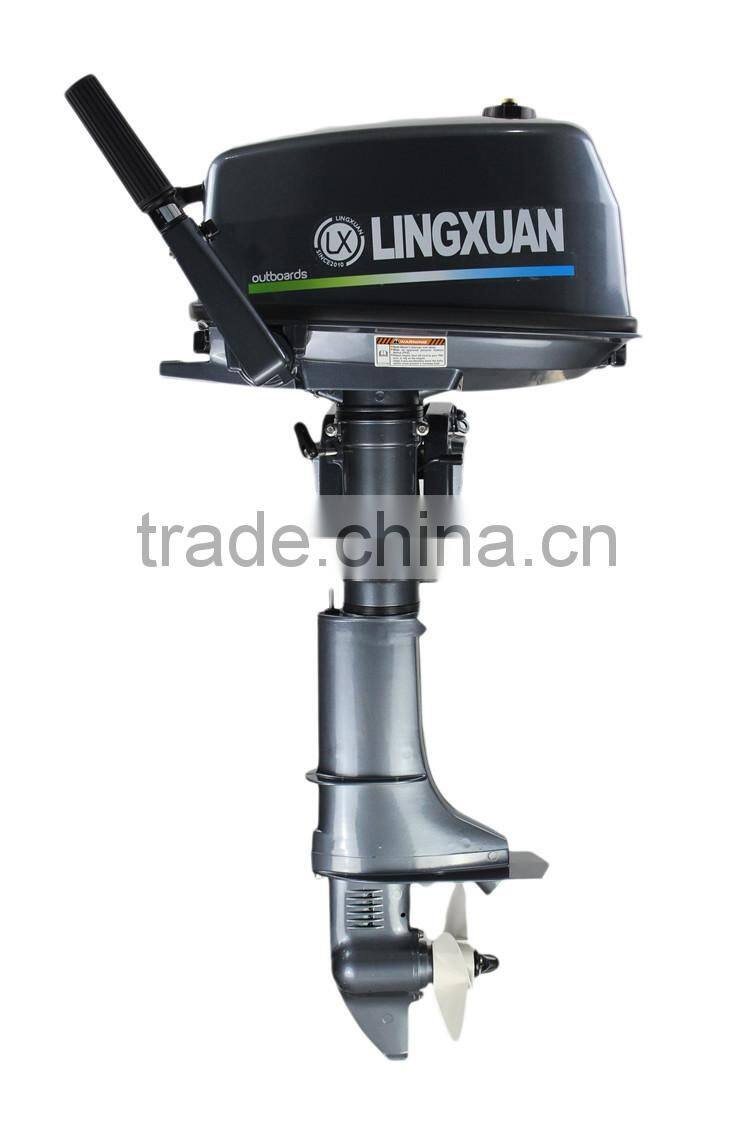

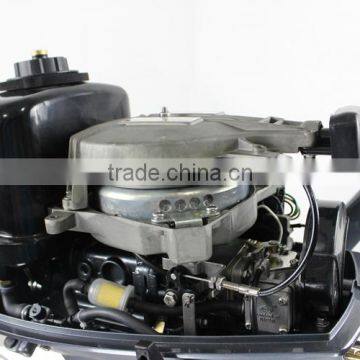

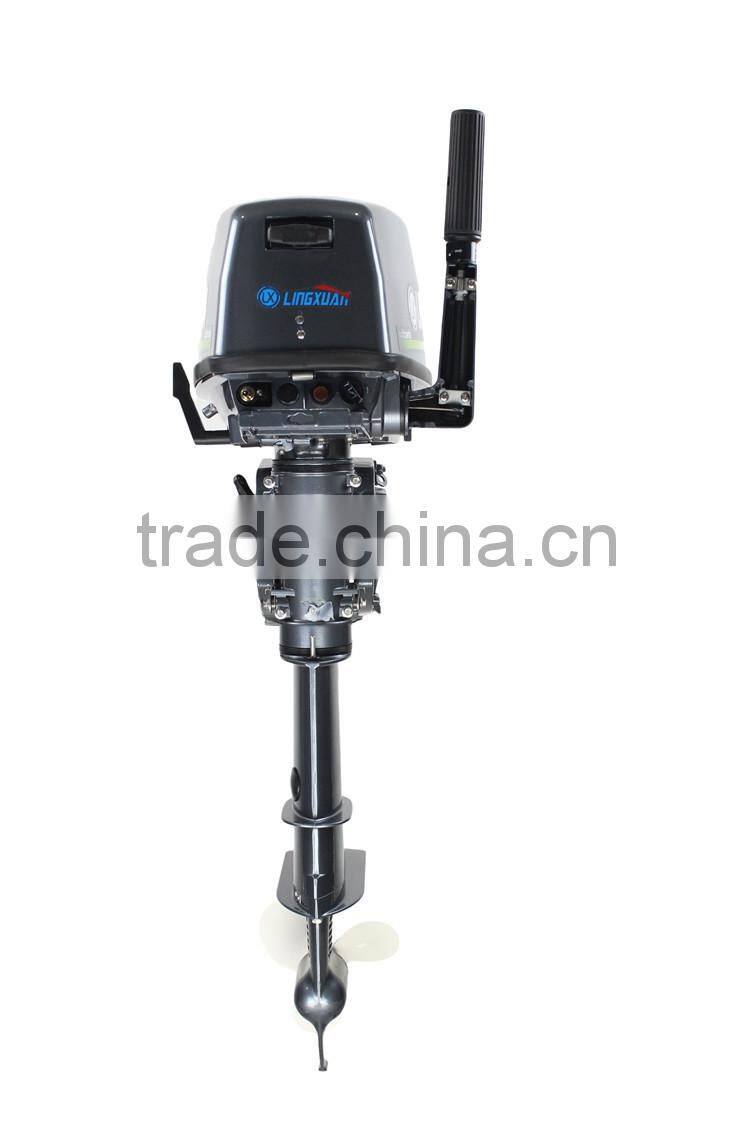

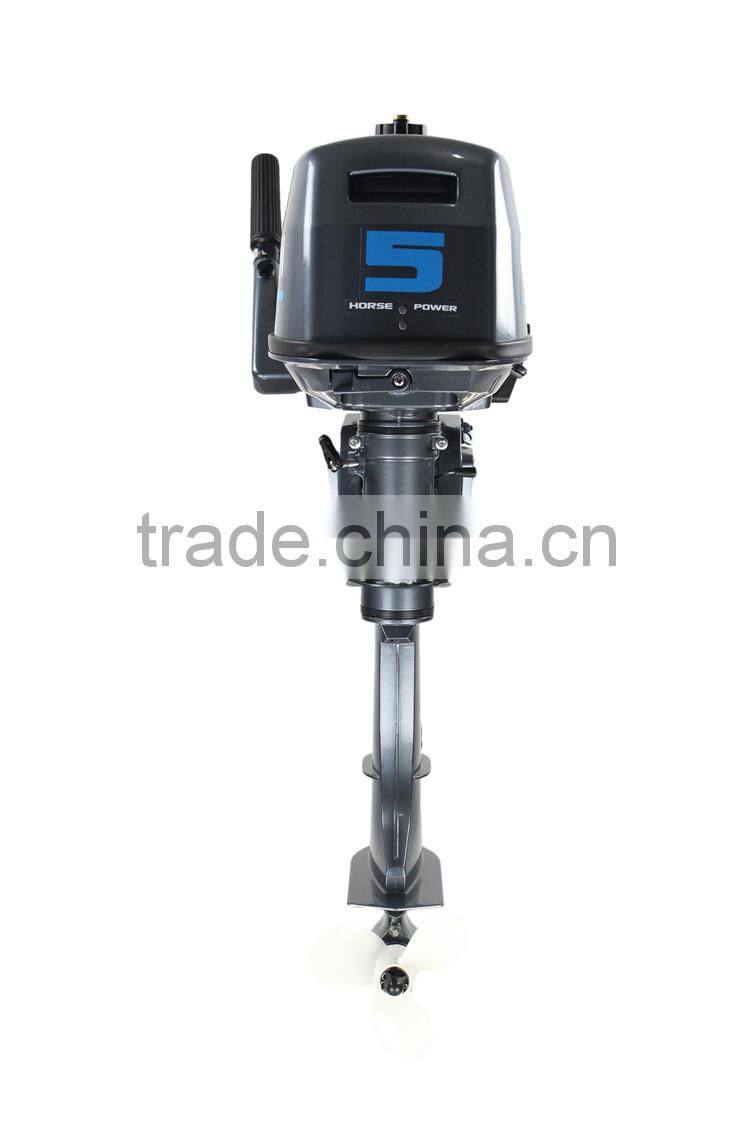

Chinese 5HP 2 Stroke Outboards Motor With CE
US$ 520 - 540
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.6HP 2 Stroke Outboard Engine/Boat MotorUS$ 280 - 300MOQ: 1 Piece -
CE Approved 4 Stroke 4HP Outboard MotorUS$ 600 - 630MOQ: 1 Piece
-
CE Approved 4 Stroke 5HP Outboard EngineUS$ 630 - 680MOQ: 1 Piece
-
CE Approved 9.8HP 2 Stroke Outboard MotorUS$ 770 - 790MOQ: 1 Piece
-
9.9HP 2 Stroke Outboard Motor With CE ApprovedUS$ 810 - 830MOQ: 1 Piece
Condition
New
Engine
2 Stroke
Engine Capacity
1 - 2L
Fuel Type
Gasoline
Cylinders
1
Engine Position
Outboard
1.excellent quality with cheap price
mon used parts with main brand
3.2 stroke and 4 stroke engine 2-60hp
4.OEM brand ok
Product Description
Company Information
| Parameter | Measuring unit | T5BMS | T5BML |
| Length | mm(in.) | 677(26.7) | |
| Width | mm(in.) | 322(12.7) | |
| Height | mm(in.) | 1011(39.8) | 1138(44.8) |
| Transom height | mm(in.) | 444(17.50) | 571(22.50) |
| Net Weight | kgs | 19 | 20 |
| Full throttle operating range | r/min | 4000~5000 | |
| Maximum output | kw(hp)@r/m | 3.6(5)@5000 | |
| Idling speed | r/min | 1100~1200 | |
| Engine type | 2 Stroke | ||
| Cylinder quanitity | 1 | ||
| Displacement | cm3 | 103 | |
| Bore×Stroke | mm(in.) | 54*45(2.13*1.78) | |
| Ignition System | CDI | ||
| Control system | Tiller | ||
| Starting System | Manual | ||
| Gear positions | Forward-neutral-reverse | ||
| Gear ratio | 2.08(27/13) | ||
| Trim and tilt system | Manual tilt | ||
| Fuel tank volume | L | Built in 2.8 | |
| Maximum fuel | L/h | 2.4 | |
| Engine fuel ratio | 50:1 | ||
| Gear oil | ml | 100 | |
| Propeller specification | in | 3-7 1/7"×7" | |
