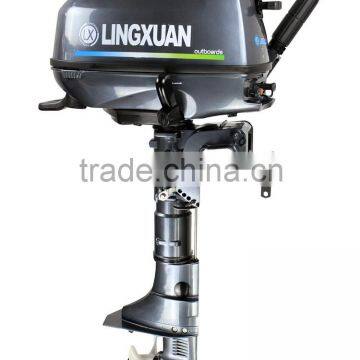

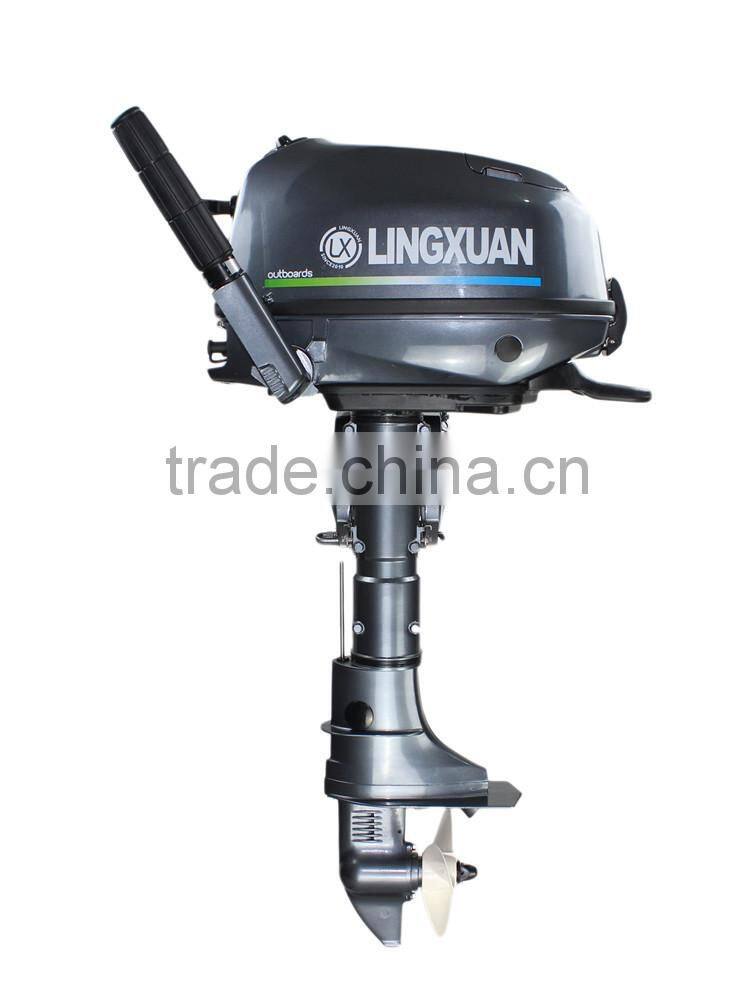

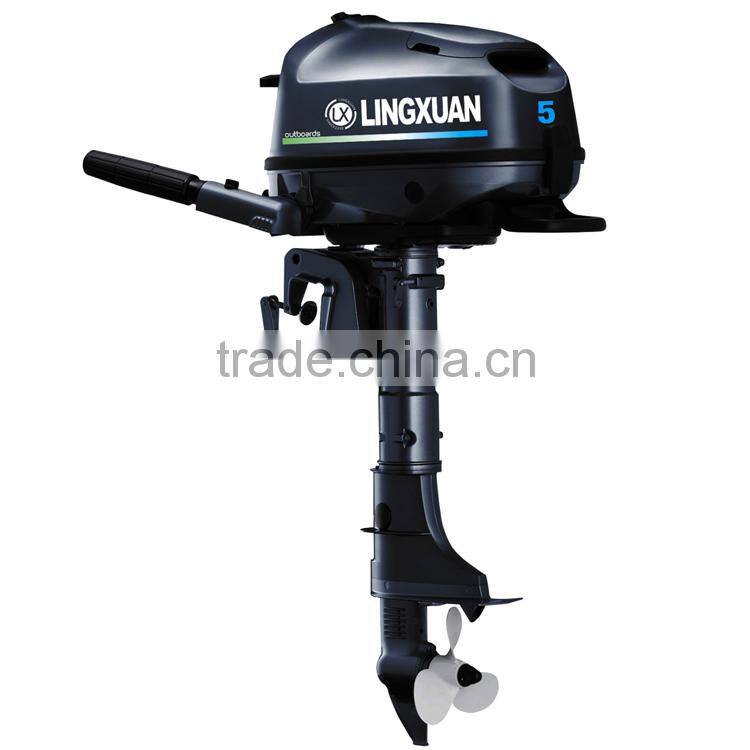

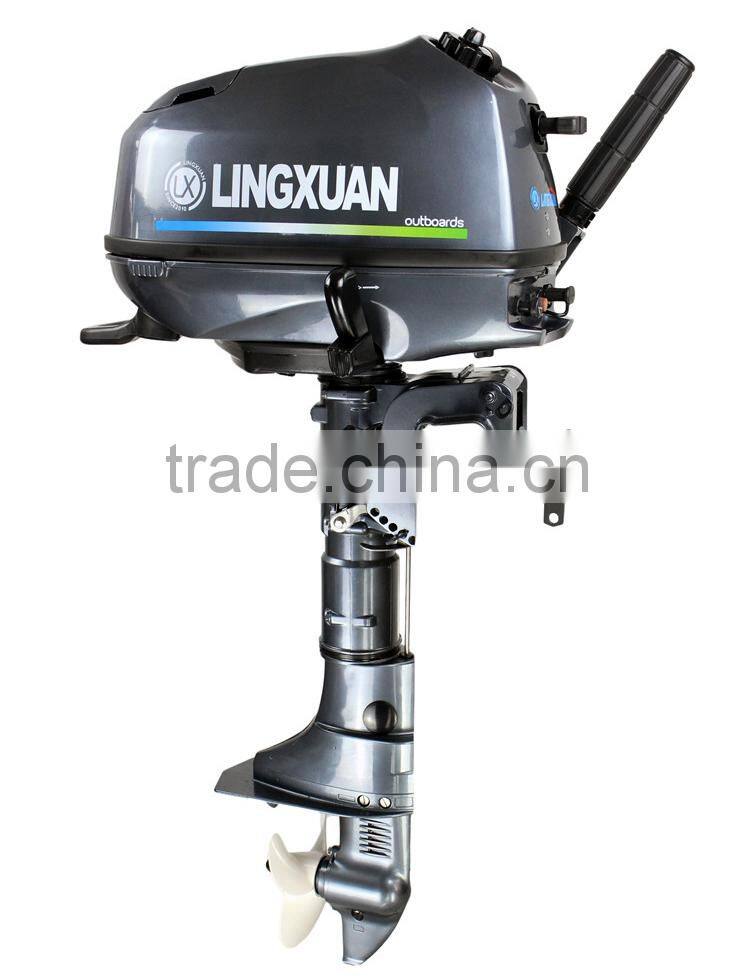

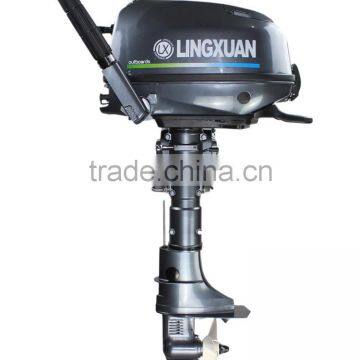

CE Approved 4 Stroke 5HP Outboard Engine
US$ 630 - 680
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Approved 9.8HP 2 Stroke Outboard MotorUS$ 770 - 790MOQ: 1 Piece -
9.9HP 2 Stroke Outboard Motor With CE ApprovedUS$ 810 - 830MOQ: 1 Piece
-
8HP 2 Stroke Outboard Motor With CE ApprovedUS$ 720 - 750MOQ: 1 Piece
-
3.5HP 2 Stroke Boat EngineUS$ 370 - 390MOQ: 1 Piece
-
15HP Four Stroke Boat Motor/Outboard Motor With CE Approved Quality ChoiceUS$ 1,200 - 1,300MOQ: 1 Piece
Condition
New
Engine
4 Stroke
Engine Capacity
1 - 2L
Fuel Type
Gasoline
Cylinders
1
Engine Position
Outboard
1.excellent quality with cheap price
mon used parts with main brand
3.2 stroke and 4 stroke engine 2-60hp
4.OEM brand ok
Product Description
Company Information

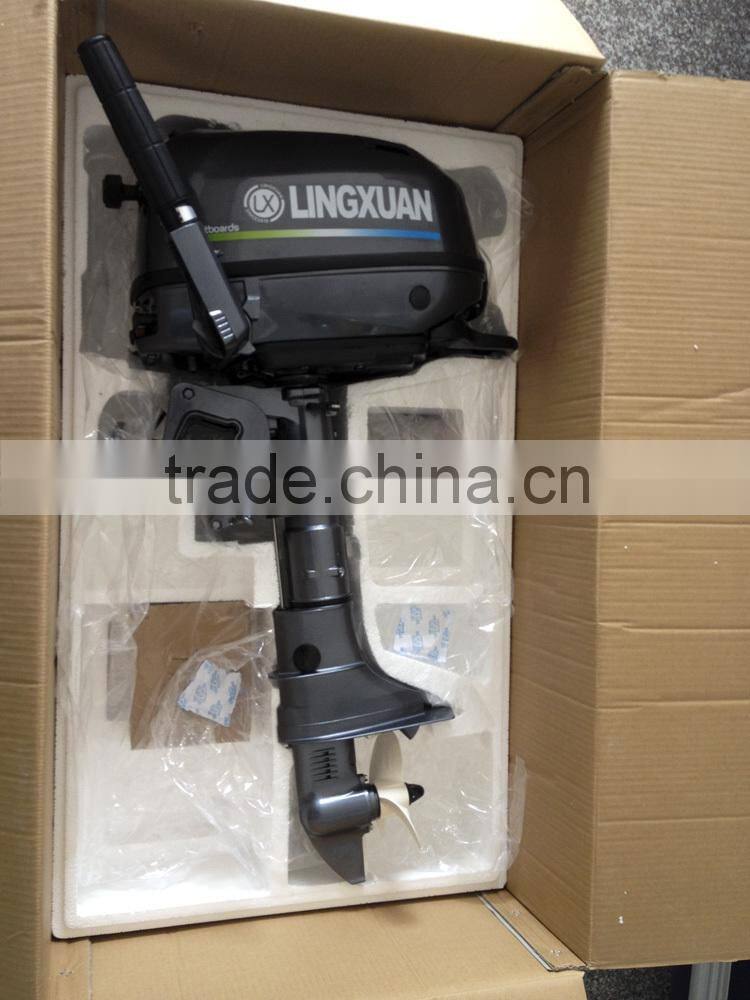

Packaging & Shipping
| Parameter | Measuring unit | F5BMS | F5BML |
| Length | mm(in.) | 717(28.2) | |
| Width | mm(in.) | 361(14.2) | |
| Height | mm(in.) | 1029(40.5) | 1156(45.5) |
| Transom height | mm(in.) | 440(17.3) | 568(22.3) |
| Net Weight | kgs | 25 | 26 |
| Full throttle operating range | r/min | 4000~5000 | |
| Maximum output | kw(hp)@r/m | 3.6(5)@5000 | |
| Idling speed | r/min | 1250~1350 | |
| Engine type | OHV | ||
| Cylinder quanitity | 1 | ||
| Displacement | cm3 | 139 | |
| Bore×Stroke | mm(in.) | 61*41 (2.4*1.61) | |
| Ignition System | CDI | ||
| Control system | Tiller | ||
| Starting System | Manual | ||
| Gear positions | Forward-neutral-reverse | ||
| Gear ratio | 2.08(27/13) | ||
| Trim and tilt system | Manual tilt | ||
| Fuel tank volume | L | Built in 1.1 | |
| Maximum fuel | L/h | 2 | |
| Engine oil | L | 0.6 | |
| Gear oil | ml | 100 | |
| Propeller specification | in | 3-7 1/7"×7" | |
