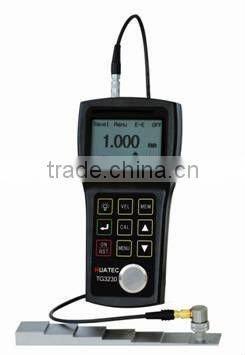

TG-3230 Glass thickness gauge, ultrasonic thickness gauge
Digital Ultrasonic thickness gauge FEATURES
- HIGH ACCURACY AND RESOLUTION UP TO 0.001mm or 0.0001 inch
- MEASURING ULTRA THIN SAMPLE AS LOW AS 0.15mm or 0.006 inch
- DISPLAY UNITS : IMPERIAL and METRIC
- AUTOMATIC SELF CALIBRATION
- COUPLANT INDICATOR
- AUTOMATIC POWER OFF DEVICE
- HIGH-LOW LIMIT ALARM
- LCD BRIGHTNESS ADJUST
- LOW BATTERY INDICTOR
Digital Ultrasonic thickness gauge TECHNICAL SPECIFICATIONS
Measuring Range (for steel) |
Interface-Echo Mode: (I-E or Standard Mode) |
1.50mm – 20.0mm (0.059in – 0.787 in) |
|
Echo-Echo Mode: (E-E or High Precision Mode) |
0.15mm – 10.0mm (0.006in – 0.394in) |
|
Measuring Accuracy |
±0.005mm or 0.0002 inch (if thickness < 3mm) |
|
±0.05mm or 0.002 inch (if thickness < 20mm) | ||
Display Resolution |
mm : 0.1 / 0.01 / 0.001 |
|
inch : 0.01 / 0.001 / 0.0001 | ||
Sound Velocity Range |
1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms) |
|
Measuring Refresh Frequency |
4Hz in normal mode, up to 25Hz |
|
Memory Capacity |
500 test values |
|
Multiple Calibrations |
One point or Two Point |
|
Display LCD |
42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch) |
|
Power Source |
2 pcs. 1.5v AA size batteries |
|
Continuous working period |
About 200 hours (with backlight off) |
|
Power off |
Auto power off if idle for 4 minutes |
|
Operating Temperature |
-10 °C to +50 °C |
|
Unit Size |
2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm). |
|
Weight |
200g |
|

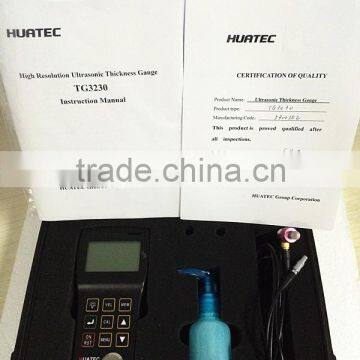

Digital Ultrasonic thickness gauge STANDARD DELIVERY
- Main unit with Calibration block (4.00 mm)
- Precision Probe (D11R) with Replaceable Delay Tip
- Coupling Paste
- Operation Manual
- Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
- Carrying Case
