TG4500 Ultrasonic Thickness Gauge for Sale

TG4500 Ultrasonic Thickness Gauge for Sale thumbnail-1
TG4500 Ultrasonic Thickness Gauge for Sale thumbnail-2
TG4500 Ultrasonic Thickness Gauge for Sale thumbnail-3
TG4500 Ultrasonic Thickness Gauge for Sale photo-1
TG4500 Ultrasonic Thickness Gauge for Sale photo-2
TG4500 Ultrasonic Thickness Gauge for Sale photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
HUATEC
Model Number:
TG4500
Contact Supplier Request Quote Chat Now
Huatec Group Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name HUATEC
Model Number TG4500

TG-4500 Ultrasonic Thickness Gauge

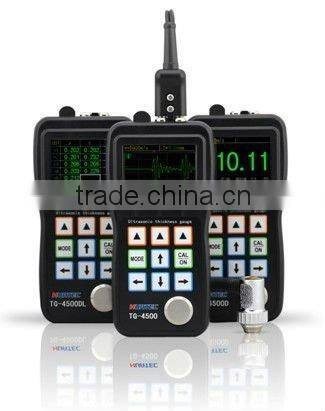

TG4500 Ultrasonic Thickness Gauge for sale



Features:

Color 320x240 Pixels Display

A-Scan Snapshot

Echo-Echo Mode(Thru Paint & Coatings)

Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions



Technical Specifications





Feature

TG-4500

TG-4500D

TG-4500DL

Data Logger Option

Color Display

ü

ü

ü



A-Scan Snapshot

ü

ü

ü



Gain: Low, Medium, High

ü

ü

ü



Min/Max Capture

ü

ü

ü



DIFF/RR%

ü

ü

ü



Thru-paint

X

ü

ü



Data Logger

X

X

ü

ü

DataView Software

X

X

ü

ü







Instrument Specifications

Display Type

2.4" color OLED, 320 X 240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition

MeasuringResolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Gain

Low, Medium or High for varying test conditions

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Material Velocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

Selectable Chinese, English, Japanese

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C (+10°F to +120°F)

Size

153mm X 76mm X 37mm(H X W X D)

Weight

280g including batteries





Data Logger Option Features

Capacity

400 files, 100,000 readings

File Structure

Grid file

Rows X Columns

21 X 12

Communication Port

USB 2.0 (Full Speed ) port

Software

DataView PC software


Standard accessories





Thickness Gauge

1

Probe

1

Alkaline Battery

2

Couplant

1

Carrying Case

1

Operation Manual

1

USB Cable

1(Only TG-4500DL)

Software CD

1(Only TG-4500DL)





Optional accessories



High-temperature Probe

Cast Iron Probe

Small Probe

Mini Probe

Probe Cable

Stepped Calibration Block

Rubber Sheath

Storage Option(Only TG-4500DL)
