Home > Instruments & Meters > Test Instrument > Test Machine > 14 Parameters Surface Roughness Tester Instrument SRT-6600

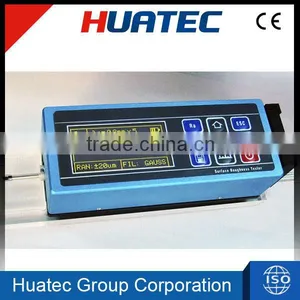

14 Parameters Surface Roughness Tester Instrument SRT-6600

Name: 14 Parameters Surface Roughness Tester Instrument SRT-6600
Brand: HUATEC
SKU: 111231189

14 Parameters Surface Roughness Tester Instrument SRT-6600 thumbnail-1

14 Parameters Surface Roughness Tester Instrument SRT-6600 photo-1

US$ 900 - 1,100 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

HUATEC

Model Number:

SRT-6600

Contact Supplier Request Quote Chat Now

Huatec Group Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name HUATEC

Model Number SRT-6600

Power Electronic

Usage Auto Testing Machine

14 Parameters Surface Roughness Tester With 128 x 64 OLED Dot Matrix Display Spectrogram SRT-6600

Detailed Product Description

14 Parameters Surface Roughness Tester With 128 x 64 OLED Dot Matrix Display High accuracy Spectrogram

Key words:portable roughness tester, roughness ra, surface roughness, surface finish, roughness tester mitutoyo, roughness testing machine, surface finish tester, surface roughness tester manufacture, roughness testing machine manufacture

Functions and features:

1.Electromechanical integration design, small volume, light weight, easy to use;

2.Using DSP chip to control and data processing, high speed, low power consumption;

3.Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

5.Display information rich, intuitive, can display all the parameters and spectrogram graphics;

6.Compatible with ISO, DIN, ANSI, JIS national standards;

7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;

8.Residual quantity indicator icon, prompting the user to charge;

9.Display of the charging process instructions, the operator can understand the degree of charge

10.Working time more than 20 hours of continuous work

11.Large capacity data memory, can store 100 groups of original data and waveform.

12.Real-time clock settings and display, convenient data recording and storage

13.With automatic dormancy, automatic shutdown and power saving function

14.Reliable control motor to go dead circuit and software design

15.Measurement information display, menu prompt information, false information and switch machine and other tips that information;

16.Full metal shell design, sturdy, compact, portable, high reliability.

17.Can be connected to a computer and printer;

The performance index of sensor:

The detection principle	Current induction
Measuring range	160 μm
Tip radius	5 μm
Tip material	Diamond
Stylus force	4mN(0.4gf)
Stylus angle	90°
The guide head vertical radius	45mm

Technical parameters:

Item	Description
The maximum driving trip	17.5mm/0.7inch
Indicating error	Not more than ± 10%
Variation of indication	Not more than 6%
The measured profile	Roughness, waviness, the original contour
Parameter	Ra(0.005μm ~ 16μm), Rz(0.02μm ~ 160μm), Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.
Filter	RC,PCRC,Gauss,ISO13565
The sampling length L	0.25mm,0.8mm,2.5mm,8mm
Evaluation length L	(1-5)l
Internal storage capacity	100 groups of original data
External input / output interface	USB
Electric source	Built-in rechargeable lithium ion battery or external power adapter

Outline dimension:143 x 55 x 42mm (host).

Weight: about 0.4KG (host).

Standard delivery:

Host	1
Standard sensor	1
Reticle temp-let	1
Template support	1
Movable support	1
Power adapter	1
USB charging cable	1
Instrument container	1
Manual, calibration certificate	1 each
