SRT-6400 Digits 10 mm LCD Surface Roughness Tester SEPARATE PROBE Ra, Rz, Rq, Rt






Features:
* Surface roughness tester SRT6400 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.
* When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the separate probe.
* This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
* The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C or USB interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion



Specifications:

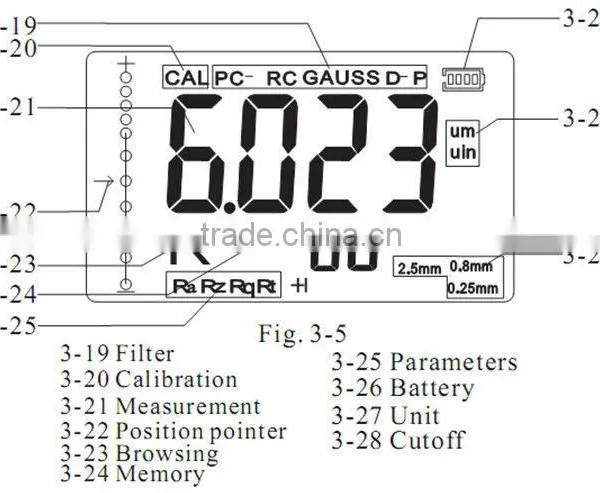

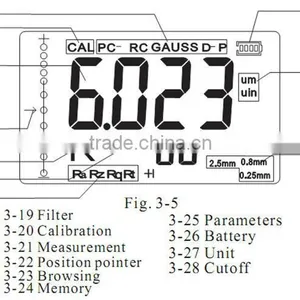

Display: 4 digits, 10 mm LCD, with blue backlight
Parameters:  Ra, Rz, Rq, Rt
Measuring Range
           Ra, Rq:  0.005-16.00um/0.020-629.9uinch
           Rz,Rt:   0.020-160.0um/0.780-6299uinch
Accuracy: ≤±10%
Fluctuation of display value: Not more than 6%
Sensor :
         Test Principle: Highly sophisticated inductance type
         Radius of Probe Pin: 5um
         Material of Probe Pin: Diamond
         Dynamo-measurement of Probe: 4mN(0.4gf)
         Probe Angle: 90°
         Vertical Radius of Guiding Head: 48mm
Maximum driving stroke:  17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm  optional
Evaluation length:  5l
Driving speed:
         sampling length = 0.25mm   Vt=0.135mm/s
         sampling length = 0.8mm    Vt=0.5mm/s
         sampling length = 2.5mm    Vt=1mm/s
         returning                  Vt=1mm/s
Profile digital filter
         Filtered Profile:            RC
         Filtered Profile:            PC-RC
         Filtered Profile:            Gauss
         Non-Filtered Profile:        D-P
Resolution :           0.001μm    if reading <10μm
                      0.01μm     if 10μm≤reading<100μm
                      0.1μm      if reading ≥100μm
Evaluation length : 5 cut-off
Power Li-ion battery: rechargeable
Operating conditions: Temp. 0~40°C
                   Humidity <80%

Standard Accessories:
   Carrying case.................1pcs
   Main unit.........................1pcs
   Standard Sensor.............1pcs
   Standard Sample Plate...1pcs
   Power Adapter................1pcs
   Operation Manual...........1pcs
   Screwdriver.....................1pcs
   Adjustable Leg................1pcs
   Sensor Protector.............1pcs


Optional Accessories:
1. Cable and Software for RS-232/USB
2. Extension Rod
3. Groove stylus
4. Curvature Probe
5. Measurement Stand
6. Bluetooth interface
