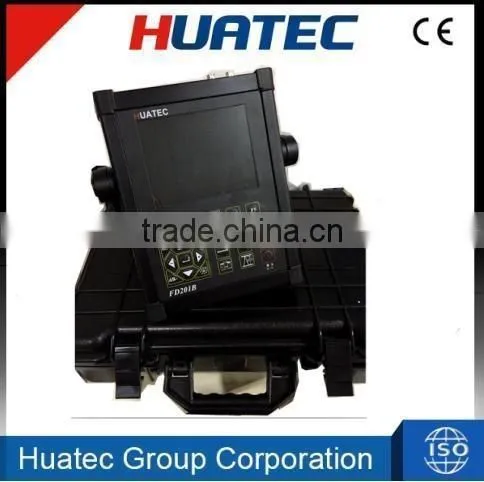

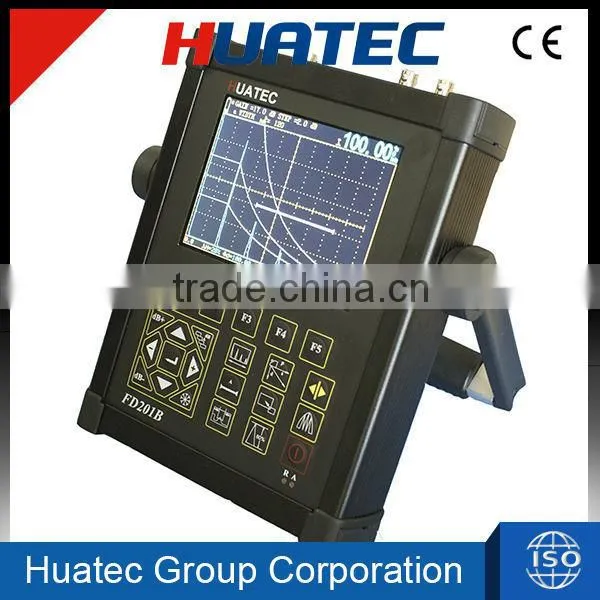

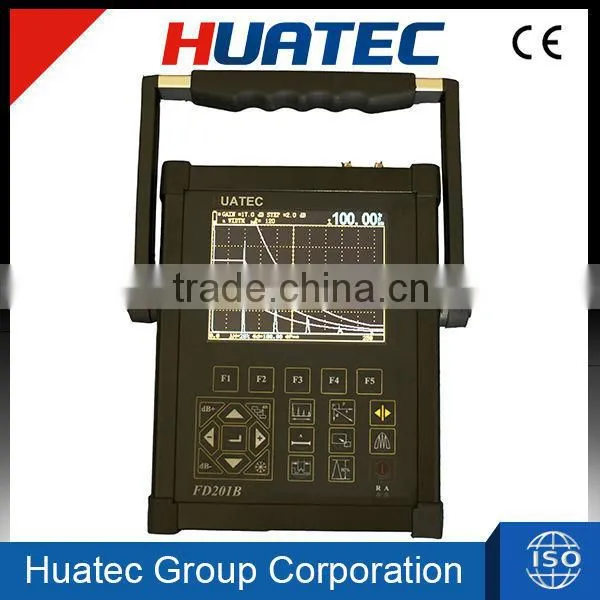

FD201B Digital ultrasonic flaw detector, non destructive testing, ndt instrument,ndt equipment
Digital ultrasonic flaw detector Specification:
DAC,AVG curves
High-speed capture and very low noise
Gate and DAC alarm; Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel.
- Automated display precise flaw location (Depth d,level p,distance s,amplitude,sz dB,)
- Automated switch three staff gauge ((Depth d,level p,distance s)
- Convenient to make and use DAC and AVG to evaluate the echo,the curve can be modified and compensated
- Ten independence setup, any criterion can be input freely, we can work in the scene without test block
- Big memory of 300 A graph
- Automated gain and gain scan, automated echo degree
- Peak hold and Peak memory
- Powerful PC software and reports can be export to excel
- The embedded software can be online updated
- Li battery, continue working time up to 10 hours
- Display freeze
- Lock and unlock function of system parameters
- Dormancy and screen savers
- Electronic clock calendar.
- Two gates setting and alarm indication.
- principle: ultrasonic
ultrasonic flaw detector Additional functions
AWS
6dB DAC
ultrasonic flaw detector Specifications
Title |
Parameter |
Title |
Parameter |
Measuring Range(mm) |
0 ~ 5000 |
Measurement Mode |
Single,Dual,Thru |
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
Horizontal Linearity Error |
≤0.2% |
Pulse Displacement(μs) |
-20 ~ +3400 |
Sensitivity Leavings |
60dB |
Zero(μs) |
0.0 ~ 99.99 |
Dynamic range |
32dB |
Port Type |
BNC |
Resolving Power |
≥40. |
Operating Temperature (°C) |
-20~50 |
Frequency Range(MHz) |
0.5 ~ 15 |
H×W×D(mm) |
240×180×50 |
Gain(dB) |
0 ~ 110. |
Weight(kg) |
1.8 |
Material Velocity(m/s) |
1000 ~ 9999. |
|
|
ultrasonic flaw detector Standard delivery
Main unit
2.5MHz-20 straight probe
4MHz-8x9mm, 60 degree angle probe
4A/9V power adapter
Probe connection cable (BNC to BNC)
Probe connection cable (BNC to LEMO
USB2.0 –RS232 converter
Instruction manual
Calibration certificate.
Carrying case.
ultrasonic flaw detector Additional accessories
Data managing software
Data managing cable RS232
Leather bag
All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz
Connection cable for probe LEMO and BNC
Lithium ion battery .
Power adapter (4A/9V) .
Test block V1
Test block V2.
Test block DAC, ASME etc.
Gross weight: 6kgs
we still supply many kinds of calibarion block and cables and probes, also can produce according to customer require.
