Portable land down the hole drilling rigs for sale

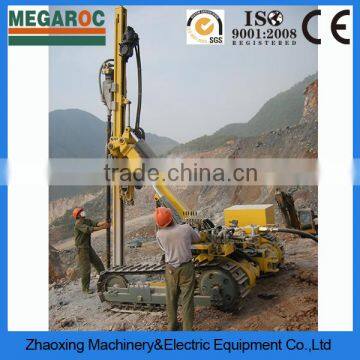

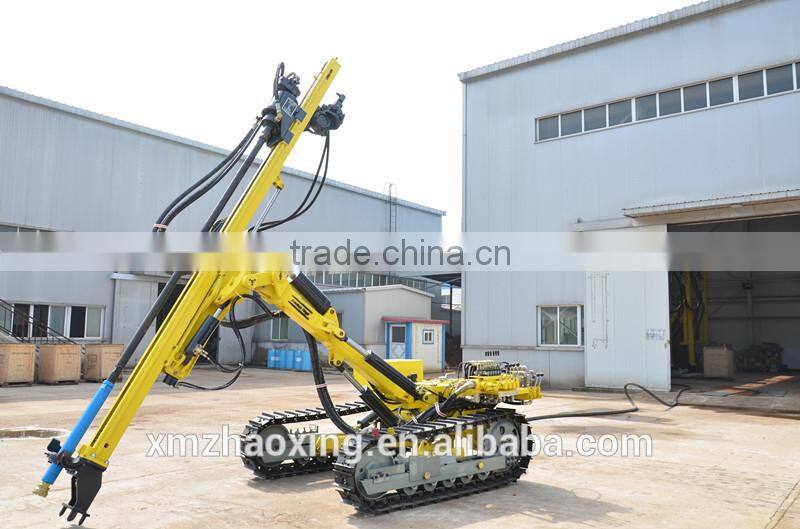

Megaroc CM361 105mm-140mm Mining Rock Drilling Rig
CM361 drilling rig belonging to type pneumatic rock drilling equipment, equipped with large power pneumatic motor, heavy duty hydraulic drill arm,hydraulic system 17.24 Mpa, 5.9m long sliding frame and high air presssure DTH hammer. CM361 drilling rig has reliable performance, suitable for operating conditions. It also reduce costs and improve the efficiency.
Specification
| 1 | Hole size: | 105~140mm | ||||
| 2 | Rock hardness | f=6~20 | ||||
| 3 | Vertical drilling depth | 20m | ||||
| 5 | Horizontal drilling depth | 30m | ||||
| 6 | Running speed | 3km/h | ||||
| 7 | Dimensions | 6500mm*2300mm*2300mm | ||||
| 8 | Weight | 5 tons | ||||
| 9 | Traction hook height | 508mm | ||||
| 10 | Transport/storage width | 2260mm | ||||
| 11 | Working air pressure | 2.24Mpa | ||||
| 12 | Carriage travel | 4356mm | ||||
| 13 | Maximum tilting angle of carriage | 180° | ||||
| 14 | Maximum swing angle of carriage | 35° to the right and 50° to the left | ||||
| 15 | Maximum horizontal swing angle of boom | 45° to the right and 45° to the left | ||||
| 16 | Maximum horizontal drilling height | 3.37m | ||||
| 17 | Minimum ground clearance | 254mm | ||||
| 18 | Compensation length | 1200m | ||||
| 19 | Speed of rotary machine | 0~72rpm | ||||
| 20 | Maximum rotary torque | 252kg•m | ||||
| 21 | Rotary motor power | 18.34KW | ||||
| 22 | Driving motor power | 3.36KW | ||||
| 23 | Running motor power | 8.5KW | ||||
| 24 | Hydraulic motor power | 7.25KW | ||||
| 25 | Rod diameter | 76mm | ||||
| 26 | Maximum propelling speed | 30m/min | ||||
| 27 | Maximum propelling force | 1600n | ||||
| 28 | Maximum drawing force | 1600n | ||||
| 29 | Boom swing angle | Left: 45o Right: 45o | ||||
| 30 | Boom pitching angle | Horizontal up 60o Horizontal down: 20o | ||||
Spare part for free
| 1 | DTH HAMMER | 1 | |
| 2 | DRILL BIT | 1 | |
| 3 | AIR HOSE | 1 | |
| 4 | 76MM DRILL PIPE | 5 | |
| 5 | CONNECTING SLEEVE | 8 | |
| 6 | TRANSITION JOINTS | 1 | |
| 7 | CONNECT | 2 | |
| 8 | O-RINGS | 2 | |
| 9 | HIGH PRESSURE GREASE GUN | 1 | |
| 10 | WRENCHES | 9 | |
| 11 | SCREWDRIVER | 1 | |
| 12 | ADJUSTABLE WRENCH | 1 | |
| 13 | LIFTING ROPES | 3 | |

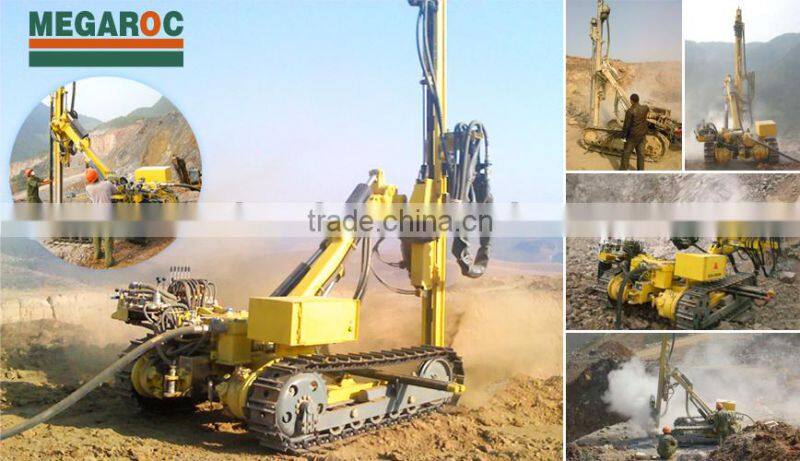

Application
CM361 Pneumatic Drilling Rig is widely used in open pit mining, road building, trenching, drilling process system enguneering.

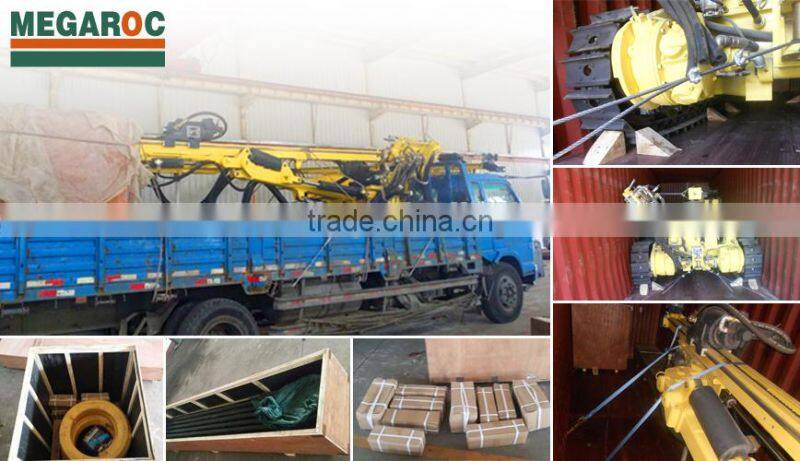

Packaging & Shipping
1. Packaing: * Drilling rig: original package
* Spare parts: Wooden package
2. Shipping: * We have cooperated with professional shipping company that knowing well how to pack the machine well when trsnsport to the port and shipping to your port. so can make the machine stable and safety.
* Shipping Container : 40 HQ, normally, it can hold a CM361 drilling rig and a air compressor. and also the spare parts.
Why Choose CM361 Drilling Rig?
1. CM361 is the same machine as D45 & D50 that all the spare parts is interchangable.
2. The price of CM361drilling rig is half of the price to D50 drilling rig. Also, the price of spare parts is also half of the price to D50 spare parts.
3. We have a professional team that can offer you on-line & oversea service. that can offer you technicial guidance when you need.

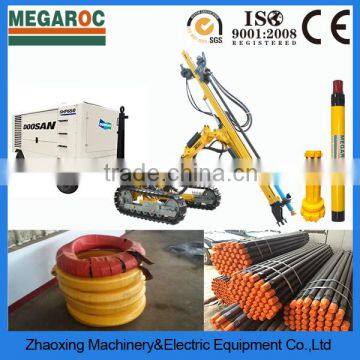

Series of Related Products We Can Supply:
1. We produce all the DTH hammer and Drill bit, Air hose, Drill pipe, etc that can offer you whenever you need.
2. We are also cooperate with the Ingersoll Rand air compressor and also other brand air compressors , that can offer you the price lower than the market price. which can offer you different degree price according to your burget.
Order Information:
| 1 | Payment Term | T/T | ||||
| 2 | Warranty | 1 Year-2000hours | ||||
| 3 | Delivery Time | 15-20 days after payment | ||||
| 4 | Expiry Date: | 1 month | ||||
| 5 | Packaging Method | Original package | ||||
| 6 | Delivery Port: | Tianjin, Ximen, Shanghai, Quangzhou | ||||
Xiamen Zhao Xing Electrical Equipment Co., Ltd. was established in 1996, with extensive experience in drilling area. We specializes in providing drilling solutions for our customers to improve efficiency and cost savings.
* We have advanced equipment and material that can make the machine more durable
* We have a professional technicians with high production efficiency that can offfer you the drilling rig for you in shorter time.
* We have Strict production process, so can safeguard the life of the machine
Passion and professinal team
* We have cultivated a contingent of well-trained,experienced maintenance engineers,s-trong service team, in order to provide a guarantee of normal production;
* We are familiar with drilling products market, we are here to provide low-cost, high-efficiency drilling services solution capacity.
* We also offer 24 hours online sevrice in technicial questions,that will help you to solve the problem if you need.
Certification
Customers Visit
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 3 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
