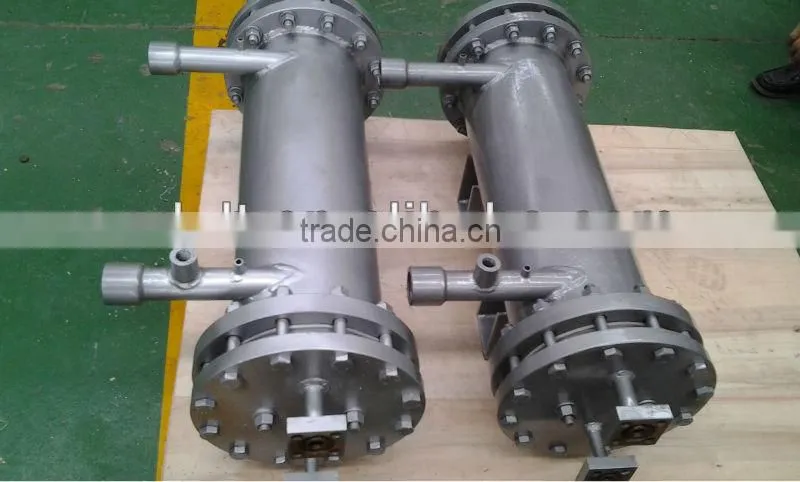

High Efficiency Shell&Tube Type Evaporator Heat Exhcanger

High Efficiency Shell&Tube Type Evaporator Heat Exhcanger thumbnail-1
High Efficiency Shell&Tube Type Evaporator Heat Exhcanger photo-1
US$ 500 - 2,356 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE
Model Number:
GZ Series
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LYTTE
Model Number GZ Series
Type Evaporator
Application Heater Parts
Certification Other, CE,CRAA,ISO

Specifications

-Overheat pipes are employed to ensure efficiency
-Qualified clean process, make its clearness good to all type of refrigerants

  High Efficiency Shell&Tube Type Evaporator Heat Exhcanger

Features:

1.They are designed and produced strictly in accordance with the National Standard and supervised under the national authority. We have specially manufacturing license for it.

2.The inner copper is high efficient grooved type.

3.The product has been tested under the gas pressure and water pressure, with 1.15MPa for shells and 1.9MPa for pipes.

4.Qualified clean process, make its clearness good to all type of refrigerants

5.The product has water drainage devices, for protect it from being freezing side in the winter.

6.Good quality welding makes it no debris and impurities left.

7.Overheat pipes are employed to ensure efficiency

 Condenser Design Condition

Temperature of Cooling Water In; T1=12°C

Temperature of Cooling Water Out; T2=7°C

Evaporation Temperature Te=2°C

Chilled Water Velocity V=0.7-1.5m/s



  Technical Data Sheet for Shell and Tube Evaporator

Model Specification

GZ 2 X 5

GZ:Series Name

2:System Qty, empty for single System

5: Normal Capacity RT (1RT=3.516KW)

GZ Series Shell and Tube Evaporator(Dry Type)-Single System

Model Capacity
(KW)		 Water Flow Overall Size (mm) Pipe Diameter (Ømm)
m3/h D T T1 B H c d G W
LTGZ-05 17.5 3 168 1060 914 290 202 22 16 3/8″ 1¼″
LTGZ-08 28 5 219 1060 914 350 253 28 16 3/8″ 1¼″
LTGZ-10 35 6 219 1060 914 350 249 35 16 3/8″ 1½″
LTGZ-15 53 9 219 1350 1200 350 244 42 22 3/8″ 2″
LTGZ-20 70 12 273 1350 1200 420 298 54 22 3/8″ 2″
LTGZ-25 88 15 273 1650 1500 420 318 54 28 3/8″ 2″
LTGZ-30 105 18 273 1750 1600 420 318 54 28 3/8″ 2″
LTGZ-35 122 21 273 1950 1800 420 310 54 28 3/8″ 2½″
LTGZ-40 140 24 273 2150 2000 420 310 54 35 3/8″ 2½″
LTGZ-45 158 27 325 2150 2000 480 362 54 35 3/8″ 2½″
LTGZ-50 175 30 325 2150 2000 480 355 54 35 3/4″ 3″
LTGZ-60 210 36 315 2350 2000 480 355 80 35 3/4″ 3″
LTGZ-70 245 42 315 2350 2000 480 355 80 35 3/4″ 3″
LTGZ-80 280 49 351 2600 2400 480 371 80 35 3/4″ 4″
LTGZ-90 315 55 351 2800 2600 480 371 80 35 3/4″ 4″
LTGZ-100 350 60 410 2800 2600 580 417 80 35 3/4″ 5″
LTGZ-120 420 73 410 2800 2600 580 417 80 35 3/4″ 5″
LTGZ-130 455 80 410 2800 2600 580 417 80 54 3/4″ 5″
LTGZ-140 490 85 410 3210 3000 580 405 80 54 1″ 6″
LTGZ-150 525 90 460 3210 3000 620 455 80 54 1″ 6″
LTGZ-180 630 110 460 3210 3000 620 455 105 54 1″ 6″
LTGZ-200 700 120 530 3510 3300 680 525 105 54 1″ 6″
LTGZ-250 875 150 560 3510 3300 700 555 105 54 1″ 6″
LTGZ-300 1050 180 560 3810 3600 700 520 134 80 1″ 8″

  GZ Series Shell and Tube Evaporator(Dry Type)-Double System



Model Capacity
(KW)		 Overall Size (mm) Installation Size(mm)
D T T1 B H F d G W
LTGZ-2×5 30 219 118 914 420 220 250 16 3/4″ 1½″
LTGZ-2×10 70 273 147 1200 420 280 250 22 3/4″ 2½″
LTGZ-2×15 100 273 210 1800 480 280 350 22 3/4″ 2½″
LTGZ-2×20 140 325 210 1800 480 348 350 22 3/4″ 2½″
LTGZ-2×25 170 325 250 2200 480 335 350 28 3/4″ 3″
LTGZ-2×30 210 351 250 2200 480 360 350 28 3/4″ 3″
LTGZ-2×35 240 351 270 2400 480 340 380 28 3/4″ 4″
LTGZ-2×40 280 410 290 2600 480 420 380 35 3/4″ 4″
LTGZ-2×45 300 410 290 2600 580 420 440 35 3/4″ 4″
LTGZ-2×50 350 410 290 2600 580 412 440 35 3/4″ 5″
LTGZ-2×60 410 460 290 2600 580 482 440 35 3/4″ 5″
LTGZ-2×70 520 460 331 3000 580 467 440 35 1″ 6″
LTGZ-2×80 560 460 331 3000 620 467 550 35 1″ 6″
LTGZ-2×90 580 460 331 3000 620 467 550 35 1″ 6″
LTGZ-2×100 680 560 361 3300 680 565 600 35 1″ 6″
LTGZ-2×120 820 560 361 3300 700 565 650 54 1″ 6″
LTGZ-2×150 1020 560 361 3300 700 565 600 54 1″ 8″

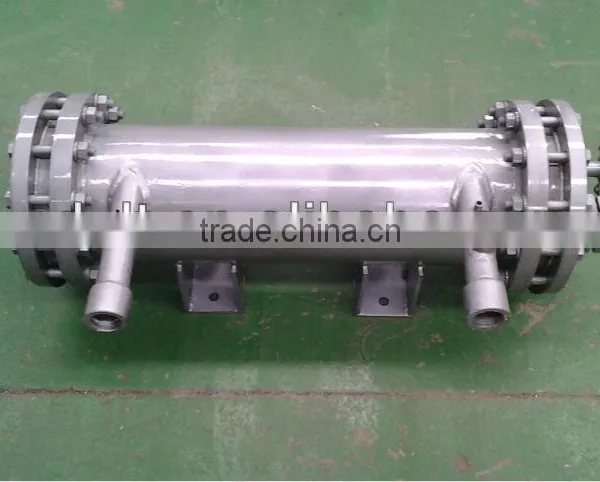

 High Efficiency Shell&Tube Type Evaporator Heat Exhcanger



 High Efficiency Shell&Tube Type Evaporator Heat Exhcanger

 High Efficiency Shell&Tube Type Evaporator Heat Exhcanger
