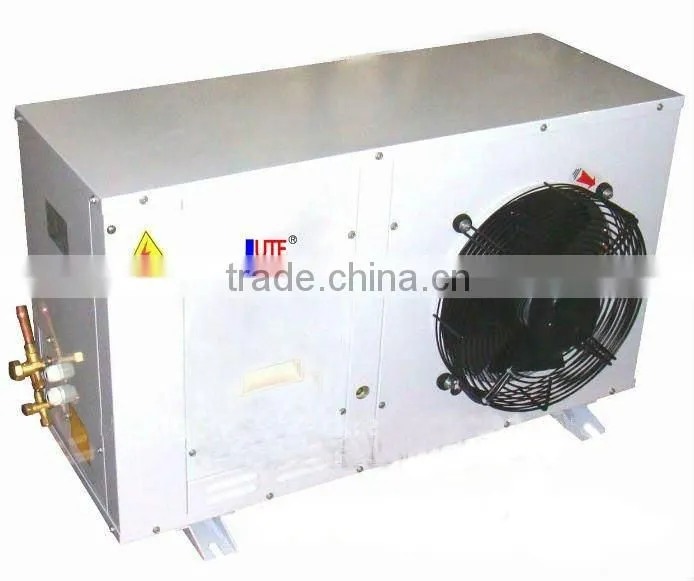

Most Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage Room

Most Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage Room thumbnail-1
Most Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage Room photo-1
US$ 269 - 2,369 MOQ: 5 Units
Key Specifications
Get Latest Price
Type:
Other, Air Cooled Condensing Unit, Air Cold Condenser for Cold Room,Food Fresh and Quick Freezing
Place of Origin:
Shandong, China
Brand Name:
LYTTE
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Cooled Condensing Unit, Air Cold Condenser for Cold Room,Food Fresh and Quick Freezing
Place of Origin Shandong, China
Brand Name LYTTE
Model Number JZW Series
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Air Cooled Condensing Unit
-Box Type
-High Efficiency,Low Noise
-Used for Cold Storage Room
-Brand Compressor

Most Popular JZW Series Refrigeration  Units Box Type Air Cooled Condensing Unit for Cold Storage Room,Food and Vegerable Fresh and Quick Freezing

This series products feature box type structure with Copeland scroll compressor,Bitzer,and Tecumseh

JZW Series Box Type Condensing Units

1. Product description
This series products feature box type structure with scroll compressor, Bitzer, Tecumseh that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: 5~ -5 and -15~-18. They can be used in hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.

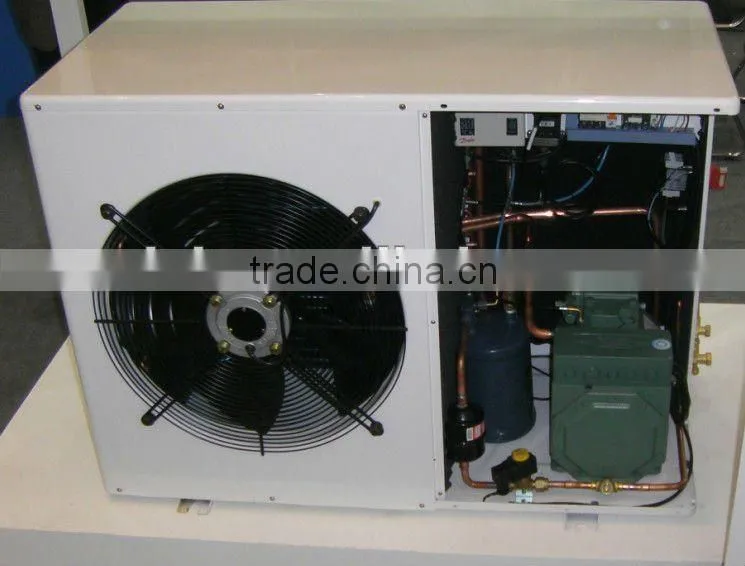

2. Main components
World famous brand refrigeration parts are employed for all products:
Copeland ZB scroll compressor;
6 pole fans with low rotation speed;
Protection devices for phase sequence, over loading ,sub-heating ,lack of phase , high & low pressure etc.
3. Model code
JZW  03  L  A   G  Y

JZW:LVTE Company Products Code

03-Compressor Power Input

L-Temperature-M:-5°C~ 5°C  L:-20°C~ -15°C

A-Air Side Outlet

G:Compressor Brand

Y R404A, empty: R22

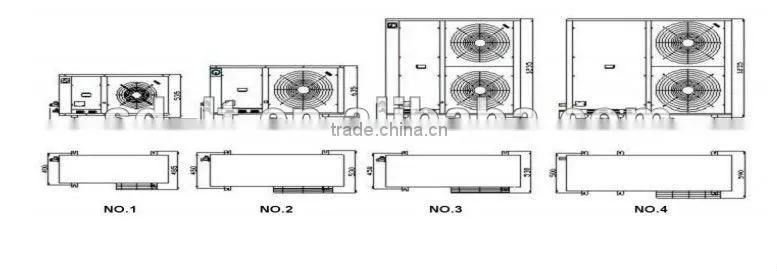

Overrall Size:



Most Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage Room



 Technical Data:

 Tecumseh Compressor Series

Tecumseh Compressor Series
1.Application Temperature:-5°C~ 5°C
Model JZW- JZW-
0.6MATY 01MATY 1.7MATY 02MATY 03MATY
Compressor Model CAJ9480Z CAJ9510Z CAJ4519Z TFH4524Z TFH4531Z
Type Hermetic Piston Compressor
Max current(A) 6.6 8 15.4 6.3 8.2
Cooling Capacity
&Power input		 Evaporation
Temperature -5°C 		Cooling Capacity(W) 1380 1714 2966 3415 4398
Power Input(W) 780 943 1778 1972 2435
Evaporation
Temperature -7°C 		Cooling Capacity(W) 1276 1589 2734 3106 4023
Power Input(W) 750 911 1718 1889 2329
Evaporation
Temperature -10°C 		Cooling Capacity(W) 1120 1396 2386 2642 3460
Power Input(W) 705 862 1628 1764 2170
Applicable Room Temperature(°C) -5~5°C
Refrigerant R404A
Power Supply 220V/50HZ 380V/3P/50HZ
Condensing
Fan		 Quantity(PCS) 1 1 1 1 1
Air Volume(m³/h) 1700 1700 1700 3200 3200
Power(W) 80 80 80 100 100
Voltage 220V/50HZ
Interface Air interface(inch) 1/2SAE 5/8SAE 5/8SAE 5/8SAE 7/8SAE
liquid interface(inch) 3/8SAE 3/8SAE 3/8SAE 3/8SAE 3/8SAE
Size Code NO.1 NO.1 NO.1 NO.2 NO.2
Design Working Condition Evaporation temperature -7°C;
Environmental temperatuer 35°C.



 Most Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage RoomMost Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage RoomMost Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage RoomMost Popular High Efficiency Top Quality JZW Series Box Type Air Cooled Condensing Unit for Cold Storage Room
