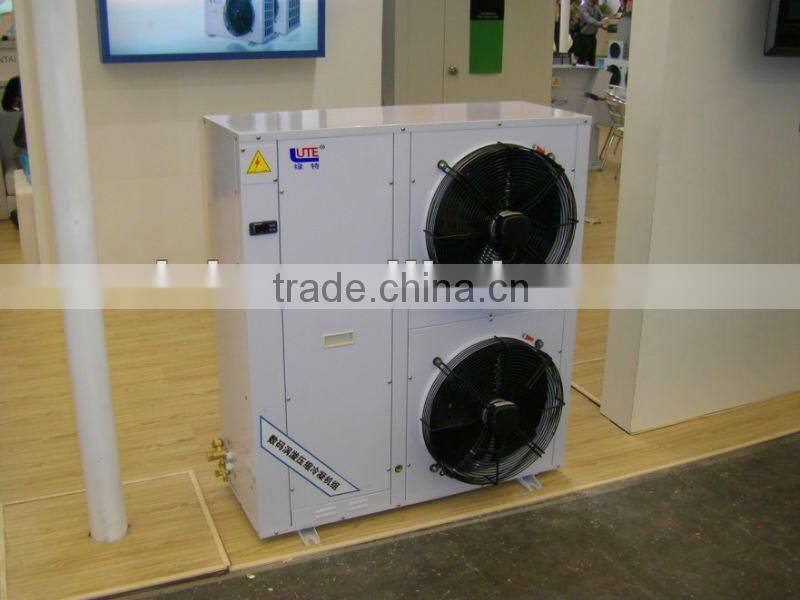

Copeland Scroll Compressor Condensing Unit Box Type

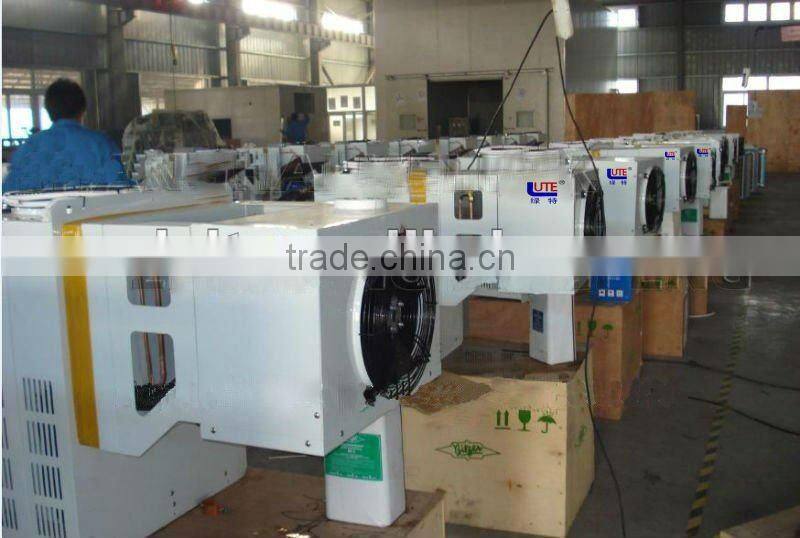

JZW Series Box Type Condensing Unit

1. Product description

This series products feature box type structure with scroll compressor, Bitzer, Tecumseh that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5°C~ 5°C and -18°C~-15°C. They can be used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.

2. Main components

World famous brand refrigeration parts are employed for all products:

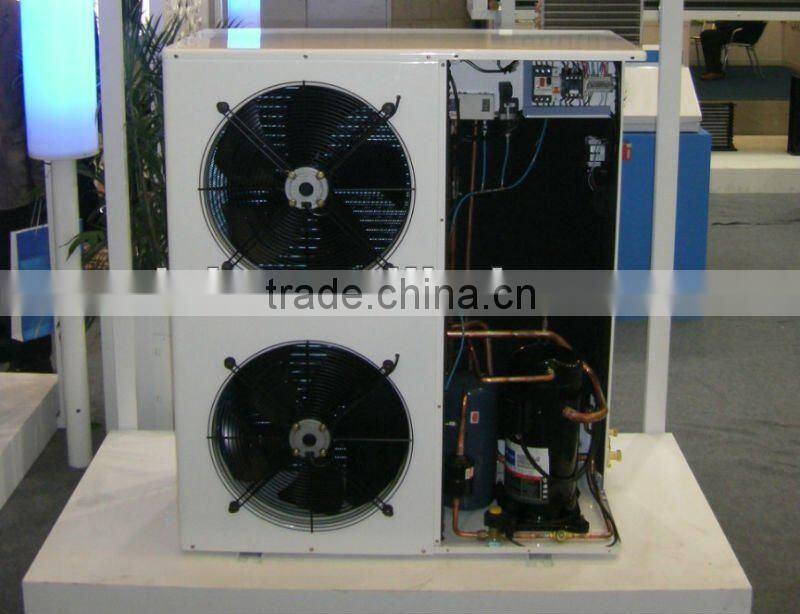

Copeland ZB scroll compressor;

6 pole fans with low rotation speed;
Protection devices for phase sequence, over loading ,sub-heating ,lack of phase , high & low pressure etc.
3. Model Specification:
JZW   03   L   A   G   Y

JZW: LVTE Company Products Code

03: Compressor Power Input HP

L: Temperature; M:-5°C~ 5°C  L: -20°C~ -15°C

A: Air Side Outlet

G: Copeland Compressor;

Y: Refrigerant Type: Y—R404a; Others—R22

Model: R404a, Temperature M:-5°C~ 5°C

Model JZW-			02MAGY	03MAGY	04MAGY	05MAGY	06MAGY	07MAGY	08MAGY
Compressor	Moel		ZB15KQE	ZB21KQE	ZB29KQE	ZB38KQE	ZB45KQE	ZB48KQE	ZB58KQE
	Type		Scroll Compressor
	Max current(A)		6	8	11	12.5	16.1	17	23
Cooling Capacity  &Power input	Evaporation Temperature -5°C	Cooling Capacity(W)	3660	5630	7680	12194	11200	12050	14450
		Power Input(W)	2030	2810	3740	5182	5340	5855	7210
	Evaporation Temperature -7°C	Cooling Capacity(W)	3630	5180	7070	11303	10350	11238	13200
		Power Input(W)	2060	2820	3750	5166	5350	5866	7230
	Evaporation Temperature -10°C	Cooling Capacity(W)	2920	4570	6210	9967	9120	10020	11500
		Power Input(W)	2100	2820	3770	5143	5360	5882	7270
Power Supply			380V/3P/50HZ
Condersing Fan	Quantity(PCS)		1	1	2	2	2	2	2
	Air Volume(m³/h)		3200	4600	6400	9200	9200	10580	10580
	Power(W)		100	160	100×2	160×2	160×2	230×2	230×2
	Voltage		220V/50HZ
Design Working Condition			Evaporation temperature -7°C,Environmental temperature 35°C.

Model: R404a, Temperature M:-20°C~ -15°C

Model JZW-			02LAGY	03LAGY	04LAGY	05LAGY	06LAGY	07LAGY	09LAGY	10LAGY
Compressor	Model		ZB15KQE	ZB21KQE	ZB29KQE	ZB38KQE	ZB45KQE	ZB48KQE	ZB66KQE	ZB76KQE
	Type		Scroll Compressor
	Max current(A)		6	8	11	12.5	16.1	17	24.2	26.9
Cooling Capacity &Power Input	Evaporation Temperature -20°C	Cooling Capacity(W)	1720	2930	3930	4940	5850	6734	8720	10750
		Power Input(W)	2260	2830	3810	4670	5350	5900	7830	9160
	Evaporation Temperature -23°C	Cooling Capacity(W)	1410	2540	3390	4280	5080	5848	7460	9610
		Power Input(W)	2300	2830	3820	4660	5340	5889	7810	9140
	Evaporation Temperature -25°C	Cooling Capacity(W)	1220	2300	3070	3880	4610	5307	6540	8930
		Power Input(W)	2320	2830	3820	4650	5320	5867	7800	9120
Power Supply			380V/3P/50HZ
Condersing Fan	Quantity(PCS)		1	1	1	2	2	2	2	4
	Air Volume(m³/h)		3200	3200	4600	6400	9200	9200	10580	10580
	Power(W)		100	100	160	100×2	160×2	160×2	230×2	230×2
	Voltage		220V/50HZ
Design Working Condition			Evaporation temperature -23°C,Environmental temperature 35°C
